Benchtop XRD systems are transforming how you perform material analysis in your lab. These compact instruments help identify crystalline structures quickly and accurately without needing much space. If you’re working in research, quality control, or education, benchtop XRD might be the tool you’re looking for.
This guide answers the most common questions about benchtop XRD so you can decide with confidence.

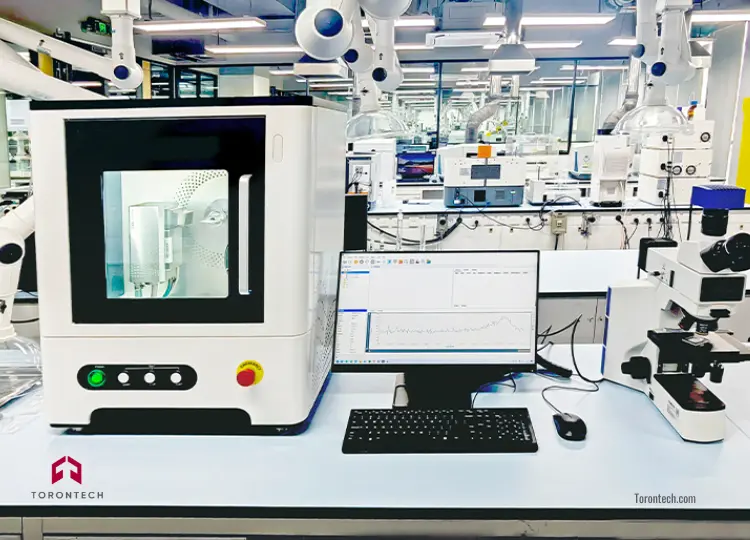

What Is a Benchtop XRD System?
A benchtop X-ray diffraction (XRD) system is a compact analytical instrument that identifies the crystalline structure of materials. It analyzes how X-rays scatter when they strike the atoms arranged in repeating patterns inside a sample. These systems offer many of the capabilities of full-size diffractometers in a space-efficient format.
XRD is a non-destructive technique, meaning your sample remains unchanged after testing. This allows for repeated or parallel tests on the same sample, which is useful in multi-step research. Benchtop systems are typically used for tasks such as phase identification, crystallinity measurement, and quantitative analysis.

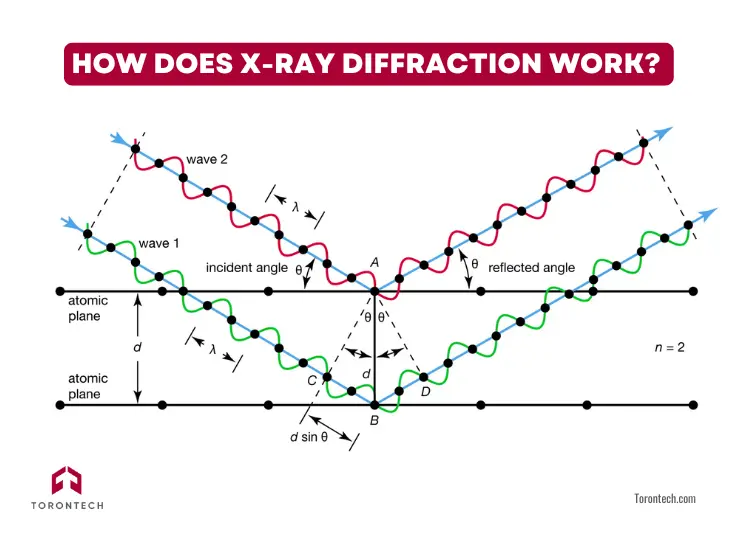

How Does X-ray Diffraction Work?
When a material is exposed to an X-ray beam, the atoms within its structure scatter the rays. The angle and intensity of the scattered beams depend on the atomic arrangement and spacing of the crystal planes. These interactions produce a pattern of peaks called a diffraction pattern.
This pattern is analyzed to determine the sample’s internal structure. Each peak correlates to a specific crystal orientation, known as a diffraction plane, and is labeled by Miller indices (hkl). This creates a unique structural fingerprint that can be matched against standard databases to identify unknown materials.
Crystal Orientation and Its Effects
XRD patterns are influenced by how crystals are aligned in the sample. Ideally, powder samples exhibit random orientation, where crystallites face all directions equally. However, some samples show single-crystal or preferred orientation, which can distort intensity and produce biased results.
To reduce this effect, techniques such as sample spinning or transmission analysis are often used. Rotating or tilting the sample during analysis helps gather a broader set of diffraction angles and minimize bias. Proper sample preparation and loading techniques also help ensure accurate data.
What Are the Benefits of Using Benchtop XRD?
Benchtop XRD systems offer a flexible, efficient, and cost-friendly way to perform advanced material analysis—right from your workspace. Here’s how they can make your job easier:
1. Compact and Portable
You can fit these systems on a standard lab bench, even in tight spaces. Some models are portable enough for mobile labs or fieldwork, so you’re not tied to a central location.
2. User-Friendly Operation
Intuitive software and easy sample loading mean you can run scans quickly—even if you’re not an expert. Features like auto-alignment and automated sample changers make routine testing simpler and faster.
3. Fast and High-Quality Results
Modern detectors and software deliver clear, accurate results in just a few minutes. You can analyze trace phases under 1%, determine crystallinity, or measure unit cell dimensions—all from small sample amounts.
4. Low Maintenance and Operational Costs
These systems are budget-friendly, with low energy usage and minimal service needs. Many don’t require external cooling, compressed air, or extensive lab modifications.
5. Versatile Applications
Whether you’re working in pharmaceuticals, geology, forensics, or academia, benchtop XRD can handle your material analysis needs. They’re great for both everyday testing and specialized research tasks.
6. Simple Sample Preparation
You only need a small amount of powder, and prep is straightforward. This saves time and lowers the barrier for occasional or non-specialist users.
7. Energy Efficient
Features like low power consumption, automatic sleep modes, and efficient detectors help reduce your lab’s environmental footprint.
If you’re looking to upgrade or expand your lab capabilities, benchtop XRD is a smart, practical solution that adapts to your workflow.
Sample Preparation Considerations
Correct sample preparation is essential to get reliable results. The sample should be evenly packed without creating preferred orientations. Overpacking can cause irregularities and background noise, while underpacking may shift diffraction peaks due to incorrect height positioning.
Soft samples can be prepared using a mortar and pestle, preserving crystal structure. Harder samples may require a ball mill, which gently grinds without destroying crystallinity. In contrast, aggressive mills like ring-and-puck types can destroy the structure, making them unsuitable for XRD.
Transmission methods using thin sample holders or capillaries can also improve resolution for organic and light-element materials.
What Can You Analyze With a Benchtop XRD?
These systems can evaluate a wide range of sample types:
- Powdered solids
- Thin films or coatings
- Bulk solids with surface preparation
- Organic or inorganic compounds
Crystalline materials yield sharp, distinct peaks. Amorphous materials, lacking long-range atomic order, show broad humps in the spectrum. Some samples, like glass or partially crystalline polymers, contain both forms.
Understanding this balance is especially useful in fields like pharmaceuticals, where amorphous content impacts solubility and absorption.
How Long Does XRD Take?
The time it takes to complete an X-ray diffraction (XRD) scan depends on several key factors—especially the quality of your sample and what level of detail you’re aiming for.
Here’s what you should consider:
1. Routine Scans Are Quick
If you’re doing basic phase identification on a well-prepared, crystalline sample, the measurement can take as little as 5 to 10 minutes. In some cases, you might get reliable results in just a few seconds.
2. Challenging Samples Take Longer
If your sample has high amorphous content, poor diffraction properties, or includes trace phases, expect scan times of 3–4 minutes or more. That extra time helps improve the signal-to-noise ratio and ensures accurate results.
3. Advanced Analysis Requires Patience
Detailed tests—like quantitative phase analysis, structure refinement, or high-resolution scans—typically need longer acquisition times. This gives better peak clarity and more reliable data for complex evaluations.
4. Instrument Setup Also Matters
- Higher tube voltage (e.g., 40 kV vs. 30 kV) speeds up measurement by up to 25%
- Line detectors collect data faster than traditional point detectors
- Well-prepared samples with uniform packing improve speed and accuracy
Your analysis goals will guide the ideal scan time. If you’re only checking major phases, short scans are fine. But if you’re chasing trace elements or exact lattice measurements, allow for extended runs to get the precision you need.
How Accurate Are Benchtop XRD Systems?
Accuracy matters, especially when you’re making decisions based on detailed material data. Benchtop XRD systems are more capable than ever, offering precision that supports both routine and advanced applications.
Let’s break down what makes them reliable:
1. Consistent Peak Positioning
You can expect angular accuracy within ±0.01° to ±0.02° (2θ). That’s more than sufficient for most lab tasks, including identifying unknown phases, verifying material consistency, and refining crystal structure parameters.
2. Impressive Resolution for a Compact Design
Resolution is measured by FWHM (full width at half maximum). The tighter the peak, the better the resolution. Leading benchtop systems achieve FWHM values below 0.04°, allowing you to distinguish closely spaced peaks in complex or multi-phase samples.
3. Stable Scanning Across the Full Range
Linearity is a key factor in data trustworthiness. High-quality systems maintain 2θ linearity within ±0.02°, ensuring that peaks are accurately placed across the entire scan range. That gives you confidence in every angle of your results.
4. Reliable Data for Both Qualitative and Quantitative Work
You can use these instruments to assess crystallinity, detect trace phases, or perform full Rietveld refinements. With built-in access to recognized databases and advanced refinement tools, you’re covered whether your work is exploratory or validation-based.
5. Engineered for Performance
Modern benchtop XRDs come with solid-state detectors and optimized optics. These improve your signal-to-noise ratio, especially for small or low-intensity samples. Smart sample holders and air-sensitive options further enhance repeatability and clarity.
Key Factors to Consider When Choosing a Benchtop XRD
When evaluating systems, it’s important to consider:
- Resolution: Needed for complex samples or trace phase detection
- Low-angle performance: Useful for organics, clays, and pharmaceutical compounds
- Sample throughput: Choose a system that matches your daily workload
- Automation compatibility: Software and hardware integration for faster data flow
- Operating requirements: Look at power needs, environment, and any extra equipment
Also, think about long-term costs such as maintenance, software updates, and potential add-ons. Systems with fewer external dependencies, like chillers or gas lines, are usually more efficient and easier to maintain.
Benchtop XRD systems bring powerful analysis capabilities into a smaller, more accessible form. With proper setup and understanding, you can perform high-quality material testing without a large lab footprint.
Final Thought
Benchtop XRD systems make advanced crystallographic analysis more accessible, efficient, and flexible. Whether you’re running routine quality checks or exploring complex material structures, these instruments offer dependable performance without overwhelming your lab space or budget.
As technology continues to evolve, choosing the right system becomes even more valuable for your workflow. Consider not just resolution and speed, but also long-term usability and support.
