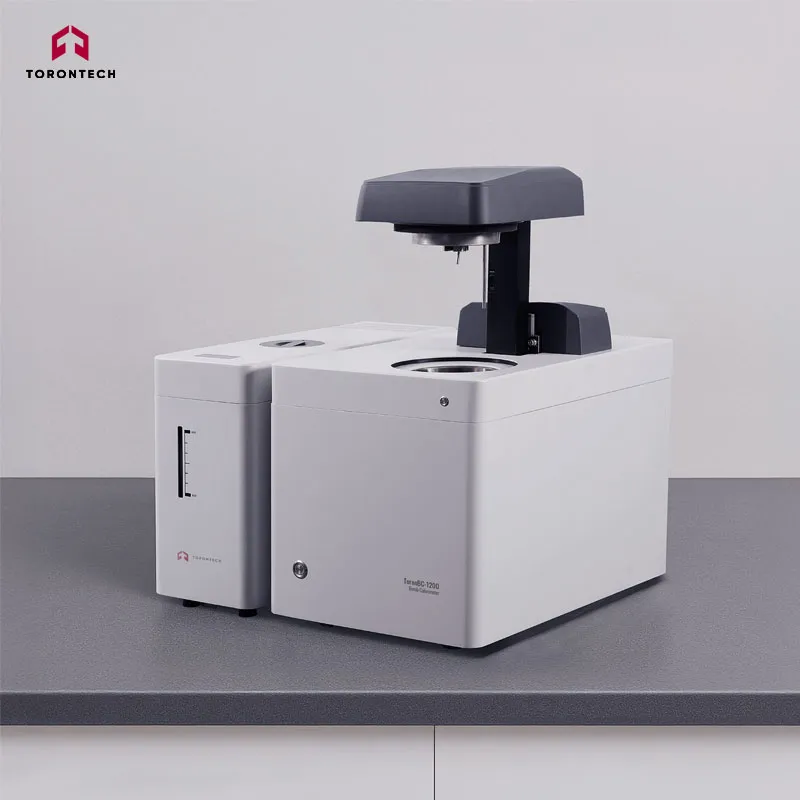

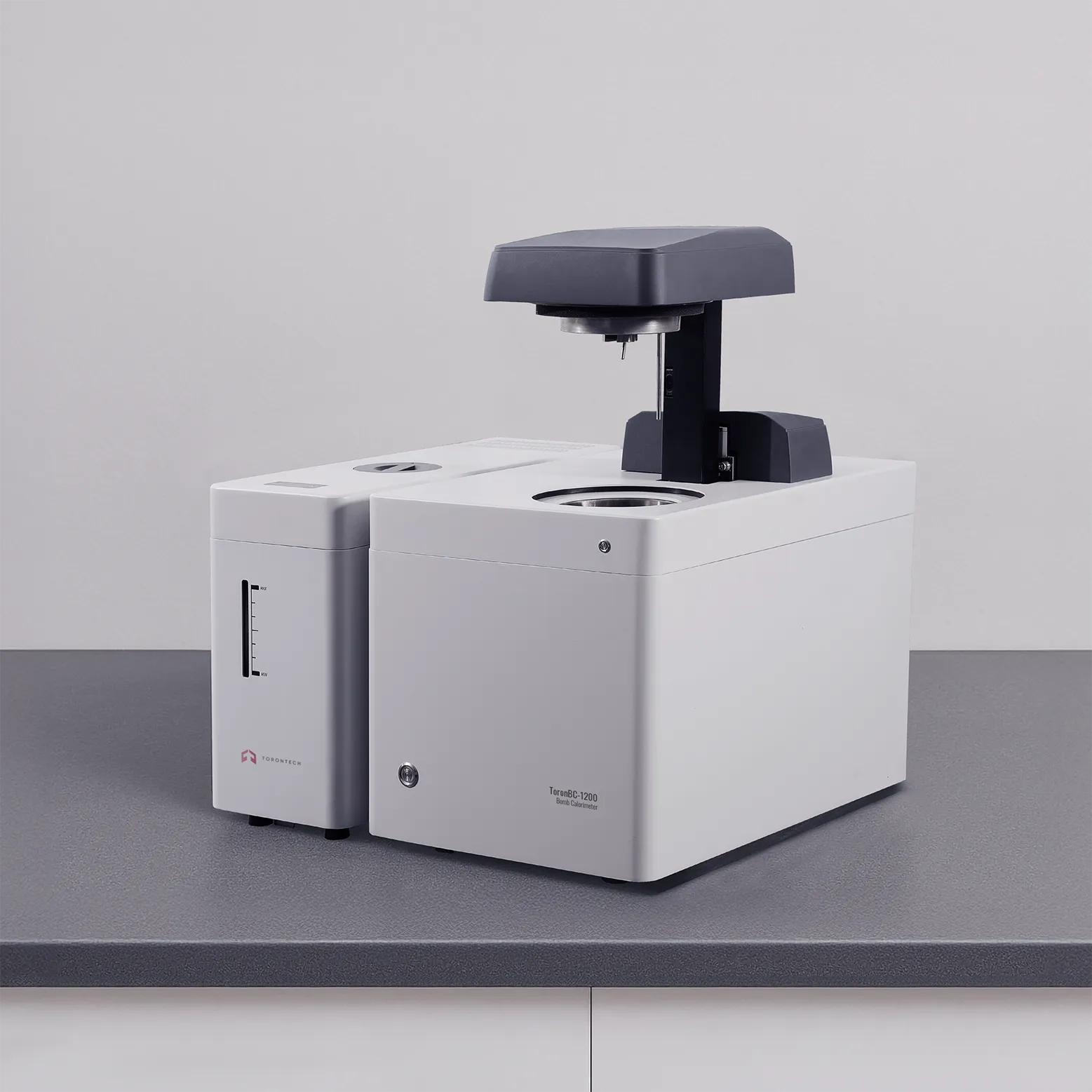

Bomb Calorimeter ToronBC-1200
Bomb Calorimeter ToronBC-1200 delivers precise calorific value testing for solid and liquid fuels, including coal, biomass, and petroleum products. With fully automated oxygen handling, a quick-assembly stainless steel bomb, and an efficient water circulation system, it ensures fast, reliable, and user-friendly operation.
Featuring an optimized design, the ToronBC-1200 offers fully automated oxygen handling and bomb operation for enhanced efficiency. Its innovative water circulation system automatically measures the required water volume for each test, while the newly engineered stainless steel oxygen bomb allows for quick and easy assembly and disassembly.
A high-efficiency propeller ensures rapid stirring and effective heat transfer, significantly shortening test durations. The advanced press-type oxygen filling and release mechanism ensures smooth, blockage-free operation, providing greater reliability and stability than conventional automatic calorimeters.
Advanced Features for Reliable Performance
Precision Temperature Control
The ToronBC-1200 is equipped with a semiconductor thermostatic water tank that supports both heating and cooling functions. This system delivers highly accurate temperature regulation while consuming less power and operating with significantly lower noise compared to conventional compressor-based tanks.
High Level of Automation

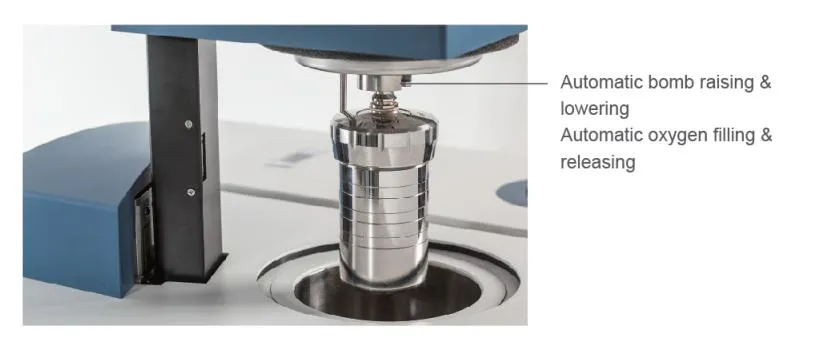

Automation covers every critical function—bomb lifting and lowering, oxygen filling and release, pressure and sealing checks, water volume control, temperature regulation, pipeline flushing, and water replacement—streamlining the entire testing process for greater efficiency.
Accurate and Consistent Results
- Enhanced Heat Capacity
An increased heat capacity contributes to higher accuracy and more consistent test outcomes. - Dual Ignition Compatibility
Supports both nickel wire and cotton thread ignition methods for flexible operation.
Smart Design for Safe and Efficient Use
- Self-Diagnostic System
- Integrated diagnostics quickly detect and identify system issues, simplifying maintenance and minimizing downtime.
User-Friendly Crucible Holder
A specially designed crucible support enhances ease of use and operator safety.
Stable Operation in Varying Environments

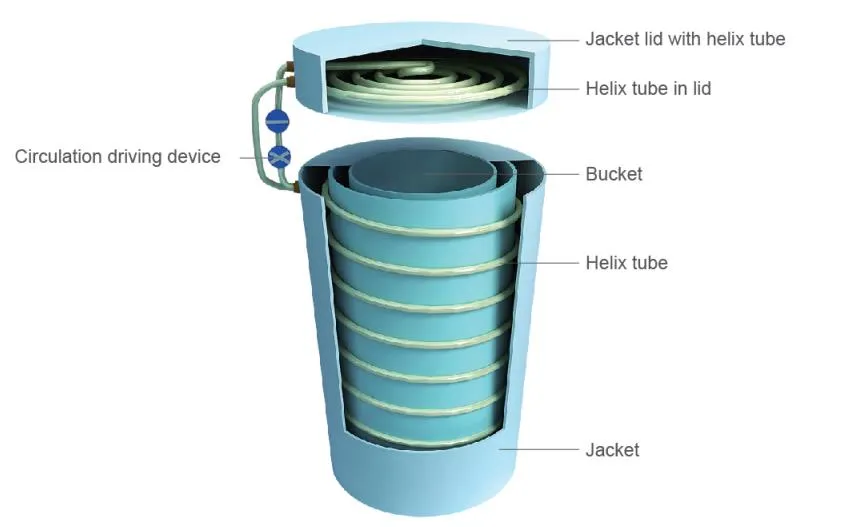

Helix Tube Multi-Point Isothermal Technology
Utilizes a jacket and lid system to maintain a stable internal test environment with temperature variation kept under 0.05°C. This minimizes the impact of external factors such as airflow or ambient temperature, ensuring consistent and reliable test results.
Independent Jacket and Bucket Water System
The ToronBC-1200 features a fully independent water circulation system for the jacket and bucket. After each test, the bucket water is automatically returned to the tank, preventing any cross-interference between the inlet and outlet flows. This separation ensures the jacket water maintains a stable temperature throughout the testing process, enhancing result accuracy and system efficiency.
| Description | ToronBC-1200 |
| Analysis Time | Fast mode <10min,Standard mode<12min Precision mode <14min (Default) |
| Temperature Resolution | 0.0001K |
| Precision(RSD) (based on analysis of 1g Benzoic Acid) | ≤0.05% |
| Heat Capacity Stability | ≤0.2% within 12 months |
| System Structure | Benchtop |
| Standard | ASTM D5865, ASTM D240, ASTM D4809, ASTM E711, ASTM D5468, ISO 1928, ISO 9831, ISO18125, AS 1038.5，BS EN 15400, BIS1350 |
| Precision(RSD) | ≤0.08% |
| Bomb volume | 250ml |
| Calorimeter Type | Isoperibol |
| Oxygen Filling | Fully automatic oxygen filling & releasing, fully automatic bomb raising & lowering |
| Bomb Washing | Manual |
| Max. Bomb pressure | 20Mp |
| Bomb Identity | Yes |
| Gas Requirement | 99.5% Oxygen |
| Water Requirement | Distilled Water |
| Energy Measurement Range | 0~50000J |
| Bucket Filling | Automatic |
| Constant Volumetric Tank with Temp Control Device | Bucket determine water volume automatically |
| Independent Bucket and Jacket Water System | Yes |
| Stirring Method | Propeller |
| Power Inverter | No |
| Ambient Temperature | 10-35°C |
| Average Temperature Increase | 2℃ |
| Temperature Measurement | PT1000 |
| Working Temperatures | 35℃ |
| Cooling method | Refrigerating Device |
| Network | Yes |
| Voltage | AC 220V (-10% +10%)50/60Hz (110V is also available) |
| Max. Power | 0.6KW |
| Dimension | Main body: 428*565*485 Water tank: 220*565*410 |
| Weight | 50kg |
| Advance Calculation | Yes |
| Analysis Report | Yes |
| Statistics Report | Yes |
| System Monitor | Yes |
