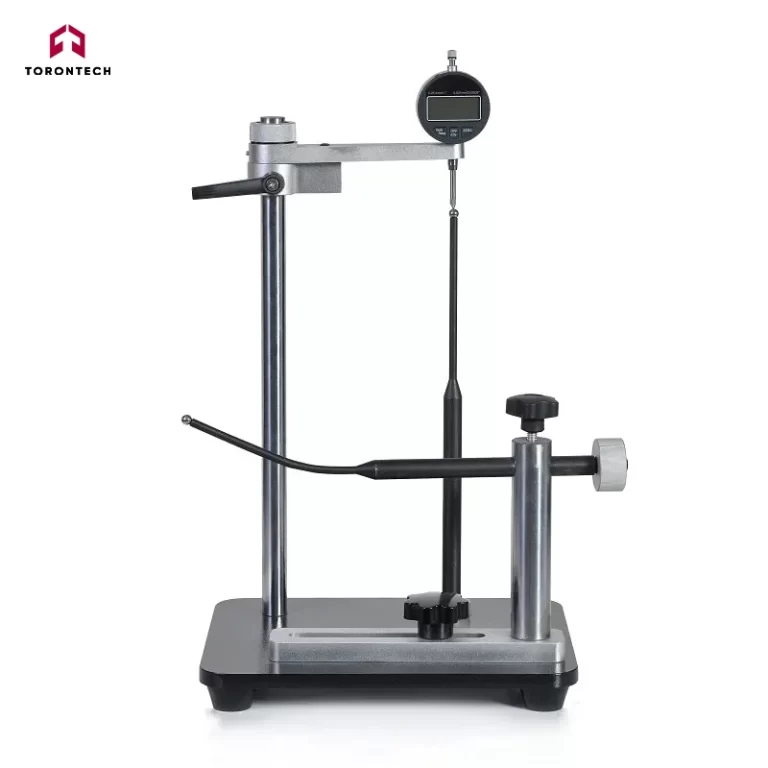

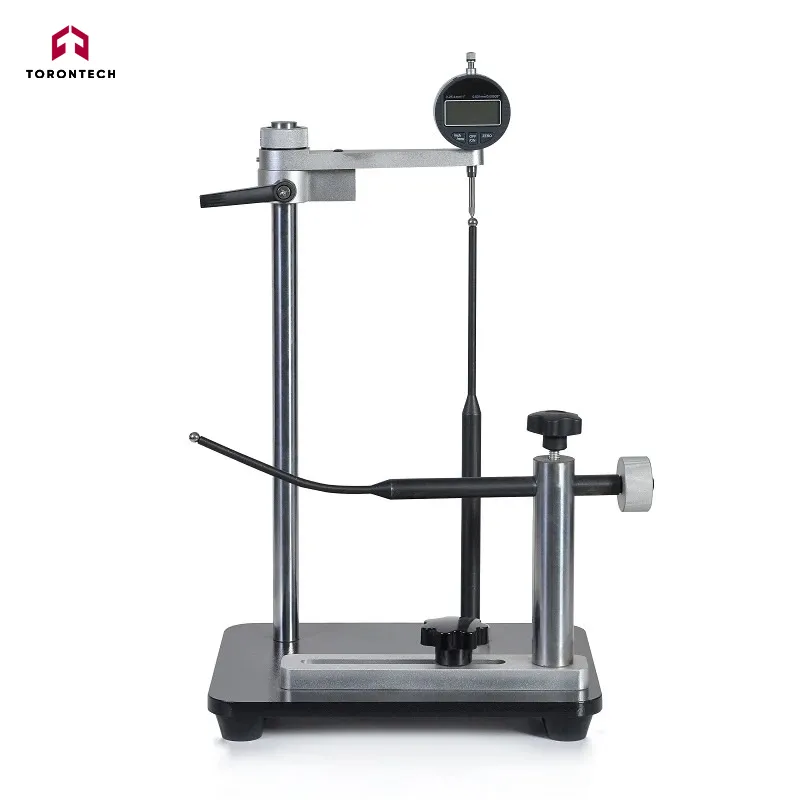

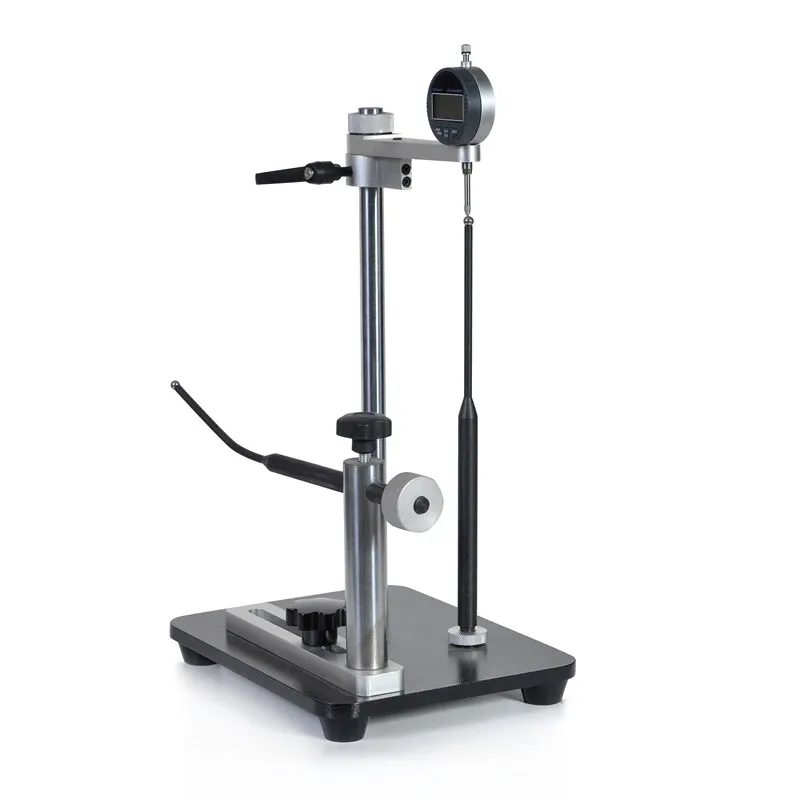

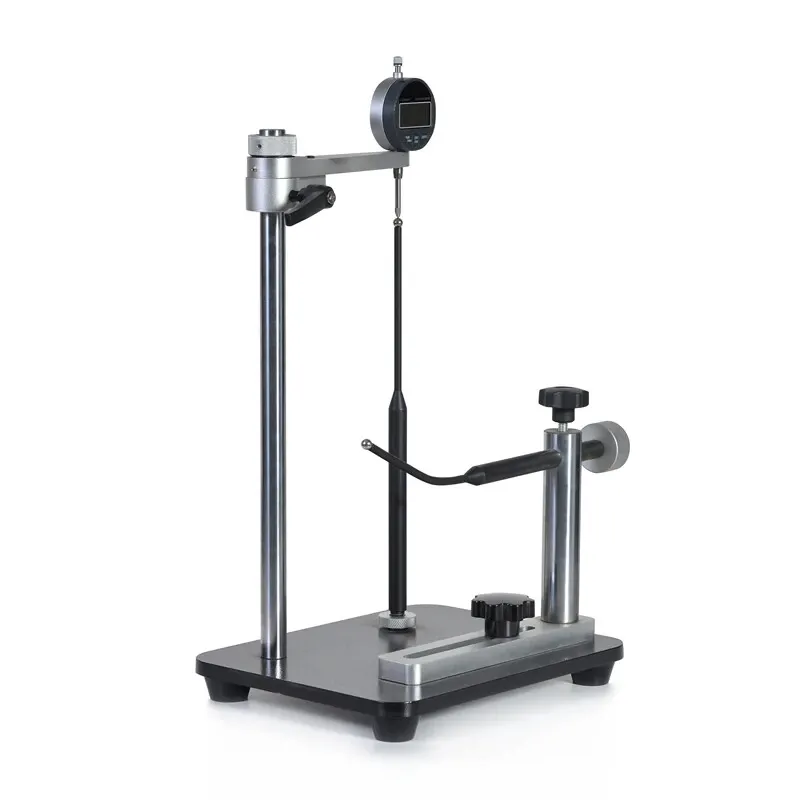

Bottle Wall Thickness Tester - ToronBWT
Precision Thickness Measurement for PET Bottles, Glass Containers, and Aluminum Cans
ToronBWT Bottle Wall Thickness Tester by Torontech is a high-precision, non-destructive measuring instrument designed to evaluate the wall and base thickness of PET bottles, glass bottles, aluminum cans, and other rigid packaging containers. It is an essential quality control tool for manufacturers in the beverage, food, pharmaceutical, and packaging industries who demand accurate material distribution analysis for safety, efficiency, and compliance.
The ToronBWT ensures reliable and repeatable measurements of bottle wall thickness with exceptional resolution, supporting both R&D and production quality assurance workflows
Standards Compliance
The ToronBWT conforms to several international and regional standards for bottle testing.
Applications
- PET bottle wall thickness measurement
- Glass bottle quality control
- Aluminum can thickness uniformity
- Container development in R&D labs
- In-line QA for beverage and pharmaceutical packaging lines
Torontech is a trusted name in material testing solutions, combining engineering excellence, regulatory compliance, and user-focused design. The ToronBWT Bottle Wall Thickness Tester is the ideal solution for packaging manufacturers who demand precision, efficiency, and global compatibility.
Key Features of Bottle Wall Thickness Tester - ToronBWT
- Versatile Sample Compatibility
Compatible with a wide range of container types and sizes, including PET beverage bottles, glass containers, and metal cans with complex shapes and patterns. - Customizable Measuring Rods
Adaptable probe tips to accommodate different bottle geometries, neck finishes, or base contours. - All-in-One Wall and Bottom Measurement
Enables both side wall and bottom thickness measurements using the same instrument, simplifying workflows. - Ultra-High Precision Sensor
Equipped with a super-sensitive contact sensor offering resolution up to 0.001 mm, ensuring accurate material thickness readings. - Simple and Durable Design
Engineered with a streamlined mechanical structure, the ToronBWT provides long-lasting reliability with minimal maintenance. - Flexible Measurement Range
Suitable for both small and large bottles with up to 150 mm diameter and 300 mm height.
| Specification | Details |
|---|---|
| Measuring Range | 0–12.7 mm standard (Optional: up to 25.4 mm or customizable) |
| Resolution | 0.001 mm |
| Sample Diameter | ≤150 mm |
| Sample Height | ≤300 mm |
| Dimensions | 400 × 220 × 600 mm |
| Weight | 15 kg |
