Catheter Cuff Inflating Diameter Tester
Multi-Function Testing System for Cuff Expansion, Cannula Collapse, and Protrusion Measurement

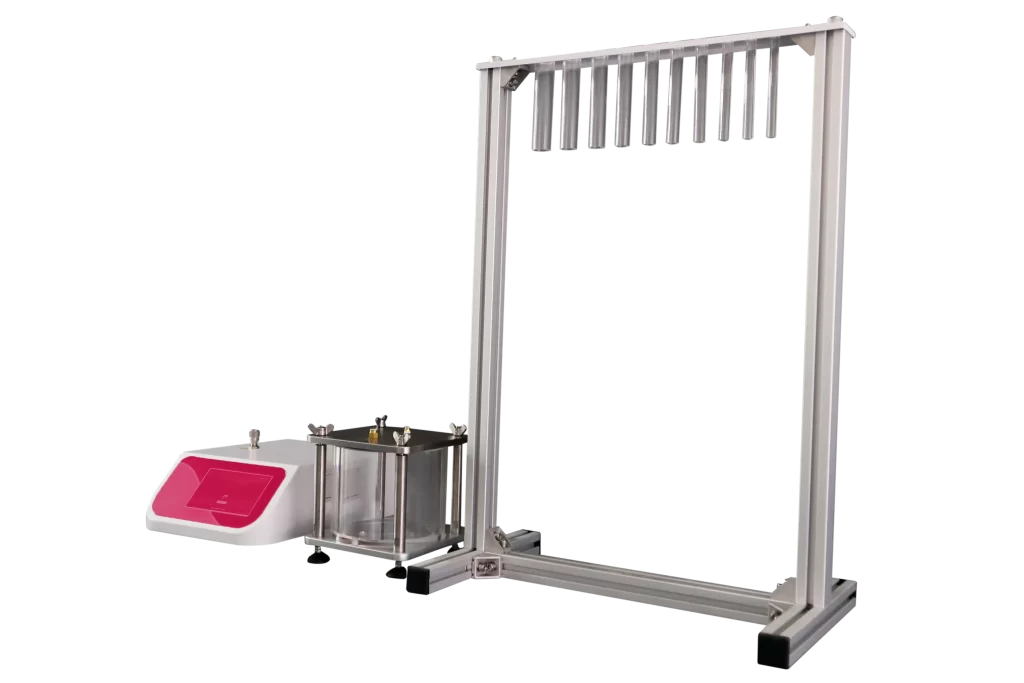

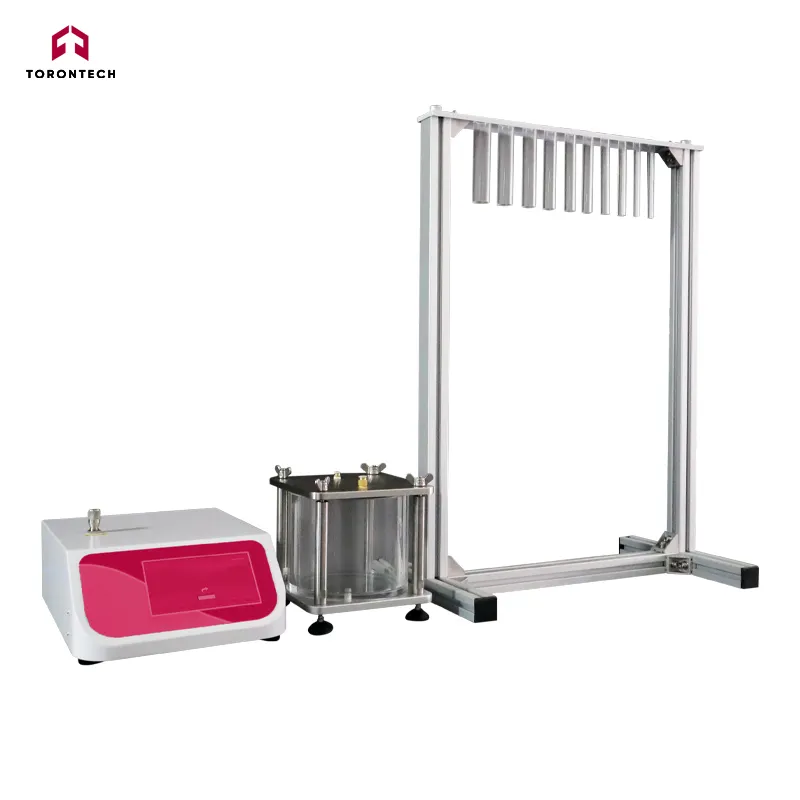

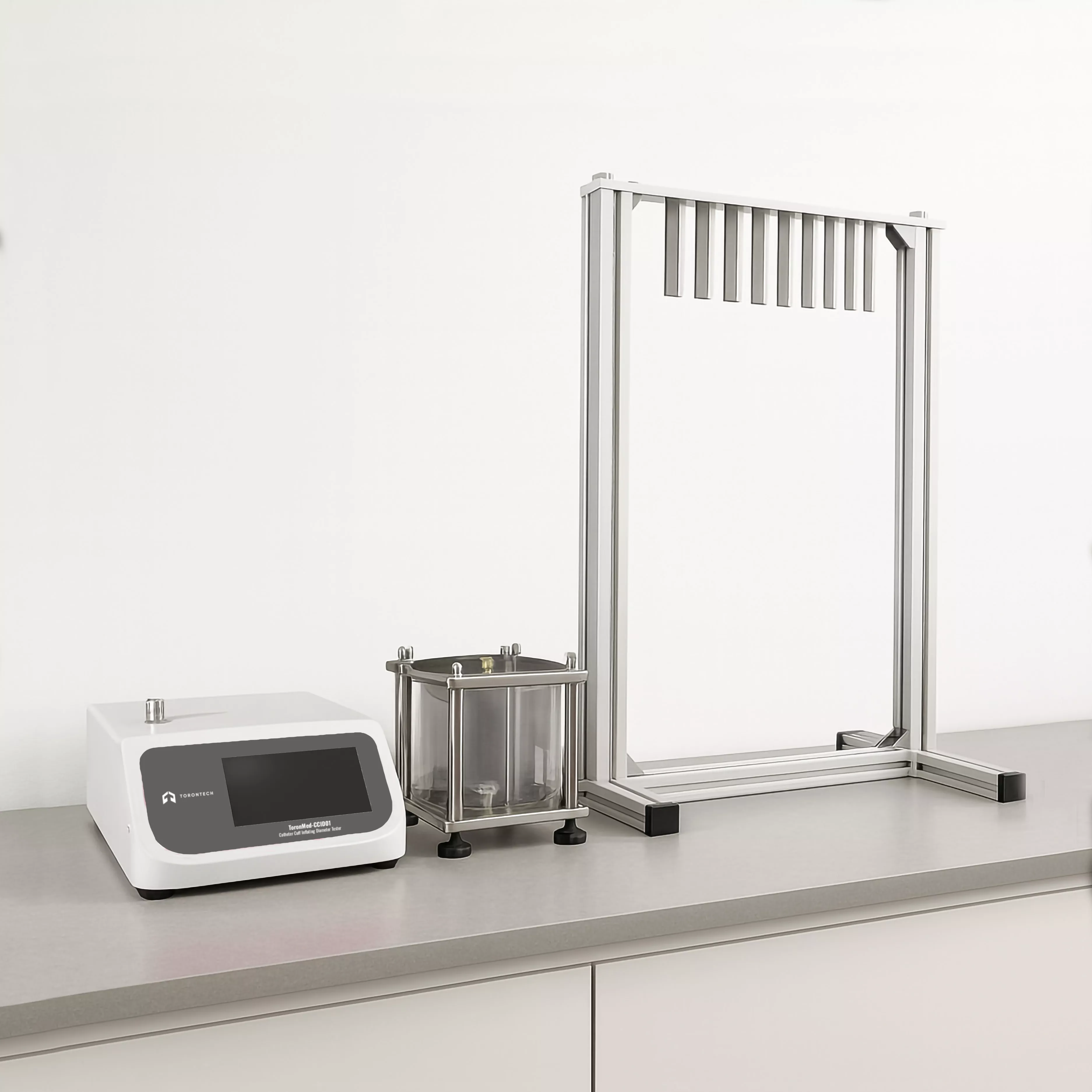

ToronMed-CCID01 Catheter Cuff Inflating Diameter Tester is a precision instrument designed to evaluate the inflated diameter of endotracheal tube cuffs, perform cannula collapse testing, and measure cuff protrusion under controlled conditions. Using a positive pressure principle, this tester simulates real-world clinical environments for consistent and repeatable measurements.
Equipped with an advanced pressure chamber, intuitive touchscreen controls, and robust data security features, the system supports both gas and liquid-based testing, making it ideal for comprehensive validation of a wide range of catheter-based medical devices.
Applications
| Primary Application | Extended Application |
|---|---|
| Endotracheal tubes | Suction catheters |
| Peritoneal catheters | Drainage catheters |
| Urinary catheters | Anesthesia catheter sets |
Included Standard Configuration

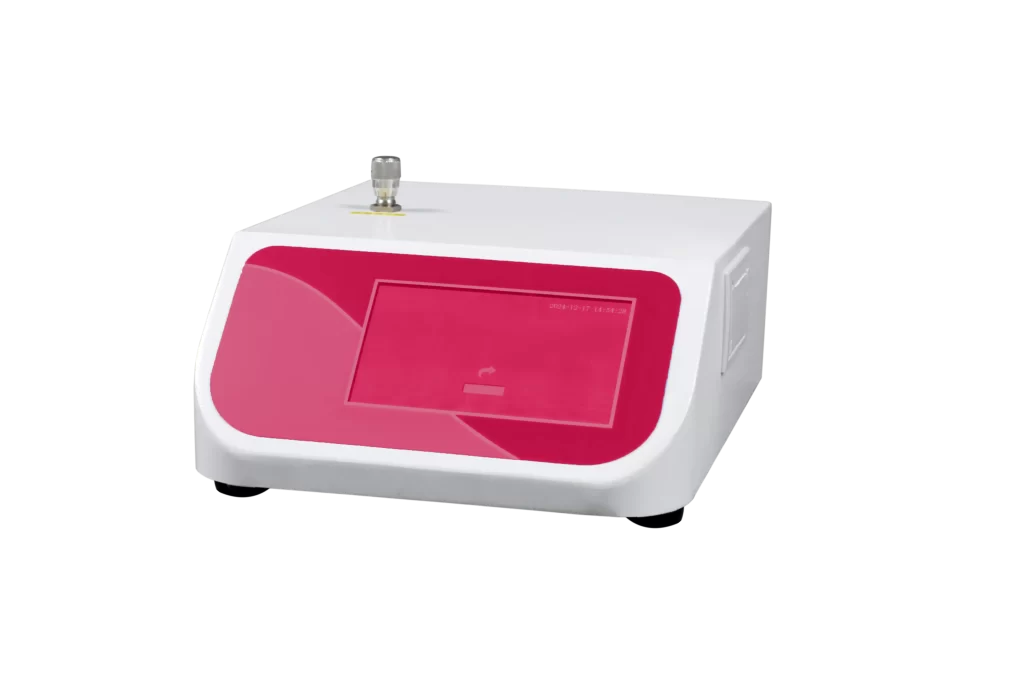

- Main instrument unit
- Pressure/liquid test tank
- Integrated micro printer
- Multi-connector interface set (customized)
Note: Gas source is not included. The user must connect an external compressed air supply to the Ø8 mm PU inlet.
How Can We Help You?
Contact our sales team for a quotation.
Key Features
- Supports three test modes:
- Cuff Inflating Diameter Test
- Cannula Collapse Test
- Cuff Protrusion Test
- Dual-function pressure test tank accommodates both gas and liquid media
- Compatible with Luer lock, cone, pagoda, and other standard connector types
- Built-in overpressure protection, power-off memory, and automatic test result interpretation
- 7-inch HD color touchscreen for real-time curve display and parameter setting
- Adjustable pressure and test duration presets
- RS232 interface for PC connectivity and data transmission
- Micro printer included for immediate hardcopy test reports
- Stores up to 100,000 test records, supporting audit and recall functions
- Fully compliant with GMP computerized system requirements including:
- User access management
- Audit trails
- Multi-level password security
| Specification | Value |
|---|---|
| Model | ToronMed-CCID01 |
| Test Range | 0–10 kPa (0–1.45 psi) |
| Accuracy | ±0.5% FS |
| Gas Supply Requirement | ≤ 0.7 MPa (user-supplied) |
| Gas Inlet Port | Ø8 mm PU tubing |
| Dimensions (Main Unit) | 300 mm (L) × 410 mm (W) × 150 mm (H) |
| Dimensions (Pressure Tank) | 215 mm (L) × 215 mm (W) × 240 mm (H) |
| Voltage | AC 220V 50Hz / AC 110V 60Hz |
| Net Weight | 30 kg |
