Drip Irrigation Emitter Testing Bench
ISO 9260, ISO 9261

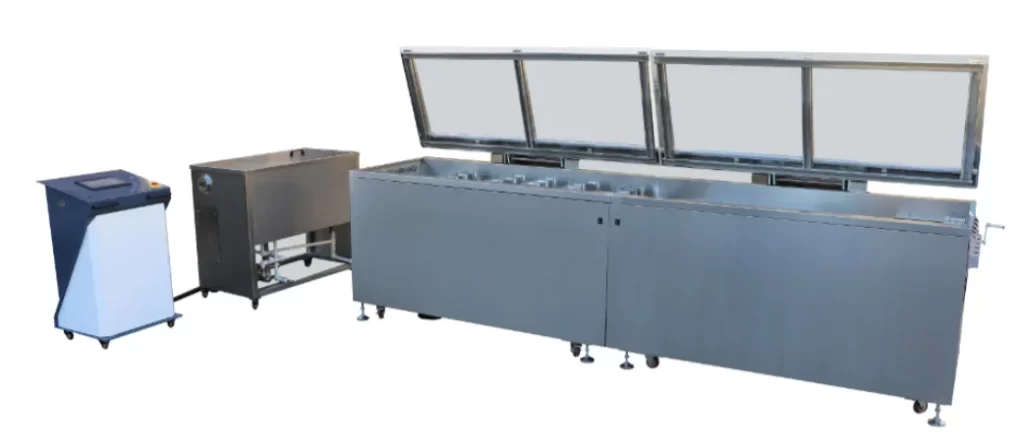

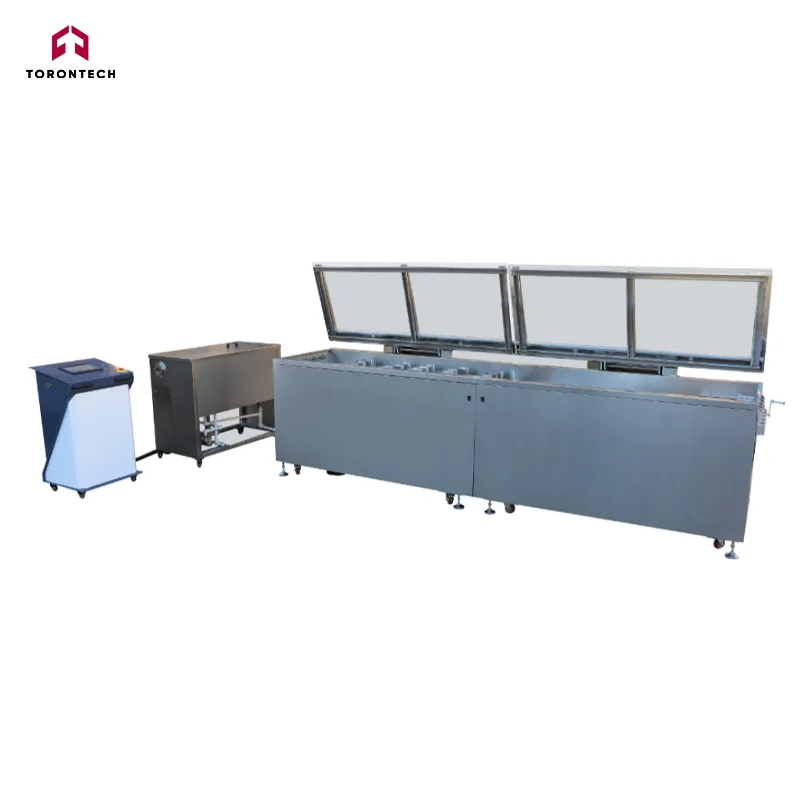

ToronDripBench is designed to perform a range of critical tests on drip irrigation emitters. These include hydrostatic pressure resistance at both ambient and elevated temperatures, flow uniformity, pressure-flow characteristics, burst testing, leak detection, and both pressure increase and decrease evaluations.
It is also suitable for burst and hydrostatic pressure testing of low-pressure PE soft tubing used in irrigation systems. The system features user-friendly operation with fully automated control throughout the testing process.

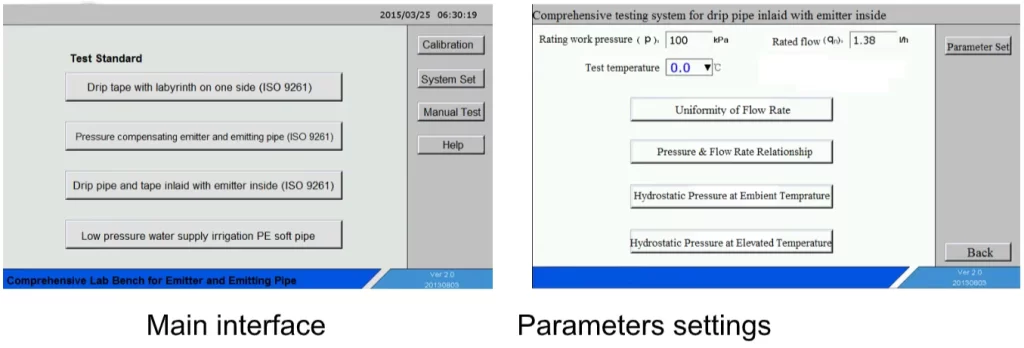

Software instructions
- The system integrates a PLC programmable controller with a coordinating upper-level PC, enabling fast response times and precise data collection. It also supports remote maintenance and feature updates.
- Pressure is controlled using a high-precision pressure transmitter combined with a 12-bit PID adaptive regulation method, maintaining a pressure control gradient of less than 1 kPa.
- The software analyzes collected test data to calculate the average flow rate of emitters, the coefficient of variation, standard deviation, deviation from rated flow, flow coefficient, and flow state index. It also generates flow-pressure curves and automatically saves results to produce detailed test reports.
- The system includes real-time alerts, warnings, and safeguards for abnormal conditions.
- All test procedures can be initiated with one click. Upon completion, data is automatically calculated, a report is generated, and key curves—such as the process curve, real-time pressure curve, and flow-pressure relationship—are displayed and recorded. The km value is calculated and fitted automatically.
- Test reports can be printed directly or exported as PDF or Excel files.
Main Features
- The system uses weighing sensors and a Modbus-RTU digital communication module for highly accurate flow measurement with excellent resistance to interference.
- The test bench operates effectively without requiring specific water quality conditions.
- It supports testing of a wide range of drippers and drip irrigation pipes (tapes) with spacing options from 100mm to 500mm.
- The equipment offers two water circulation modes—loop and closed systems—which can be switched with a single click, making it easy for testing teams to compare and verify results.
| Parameter | Specification |
|---|---|
| Test station number | 5 stations (totally 25 drippers), each station measures 5 drippers & equipped with 5 high-precision wireless weighing modules |
| Weight measurement | 0 - 2L ≤ 2000g), accuracy: ≤ 0.5% FS, resolution: 0.1g; |
| Timing accuracy | ±0.1s |
| Applicable flow range of drip irrigation pipe (belt) | 0.2 l/h ~ 7.50 l/h |
| Settable pressure | 0 ~ 1000 kPa |
| Pressure resolution | 1 kPa |
| Pressure fluctuation | ±2% of displayed value |
| Maximum working pressure of applicable drip irrigation pipe | ≤500 kPa |
| Drip hole spacing range | 100mm ~ 300mm (500mm available) |
| Drip irrigation pipe diameters | Φ12mm, Φ16mm, Φ18mm, Φ20mm, Φ25mm |
| Dimensions | 2880 × 1290 × 1260 mm |
High-temperature test chamber (optional part)
The high-temperature test chamber is designed to perform pressure resistance and other tests that require elevated temperatures. It provides a stable, controlled environment for testing and ensures safety during burst tests.
| Parameter | Specification |
|---|---|
| High temperature chamber dimension | 3300 × 602 × 1020 mm |
| Temperature Range | RT～70℃ |
| Temperature Accuracy | ±1°C |
| Heating Power | 9 kW |
| Test station number | 5 stations (totally 25 drippers), each station measures 5 drippers & equipped with 5 high-precision wireless weighing modules |
| Weight Measurement | 0 - 2L ≤ 2000g), accuracy: ≤ 0.5% FS, resolution: 0.1g; |
| Timing Accuracy | ±0.1s |
| Applicable flow range of drip irrigation pipe (belt) | 0.2 l/h ~ 7.50 l/h |
| Settable pressure | 0 ~ 1000 kPa |
| Pressure Resolution | 1 kPa |
| Pressure Fluctuation | ±2% of displayed value |
| Maximum working pressure of applicable drip irrigation pipe | ≤500 kPa |
| Drip hole spacing range | 100mm ~ 300mm (500mm optional) |
| Drip irrigation pipe diameters | Φ12mm, Φ16mm, Φ18mm, Φ20mm, Φ25mm |
