Four Ball Grinding Spot Measurement System – Toron4BGS

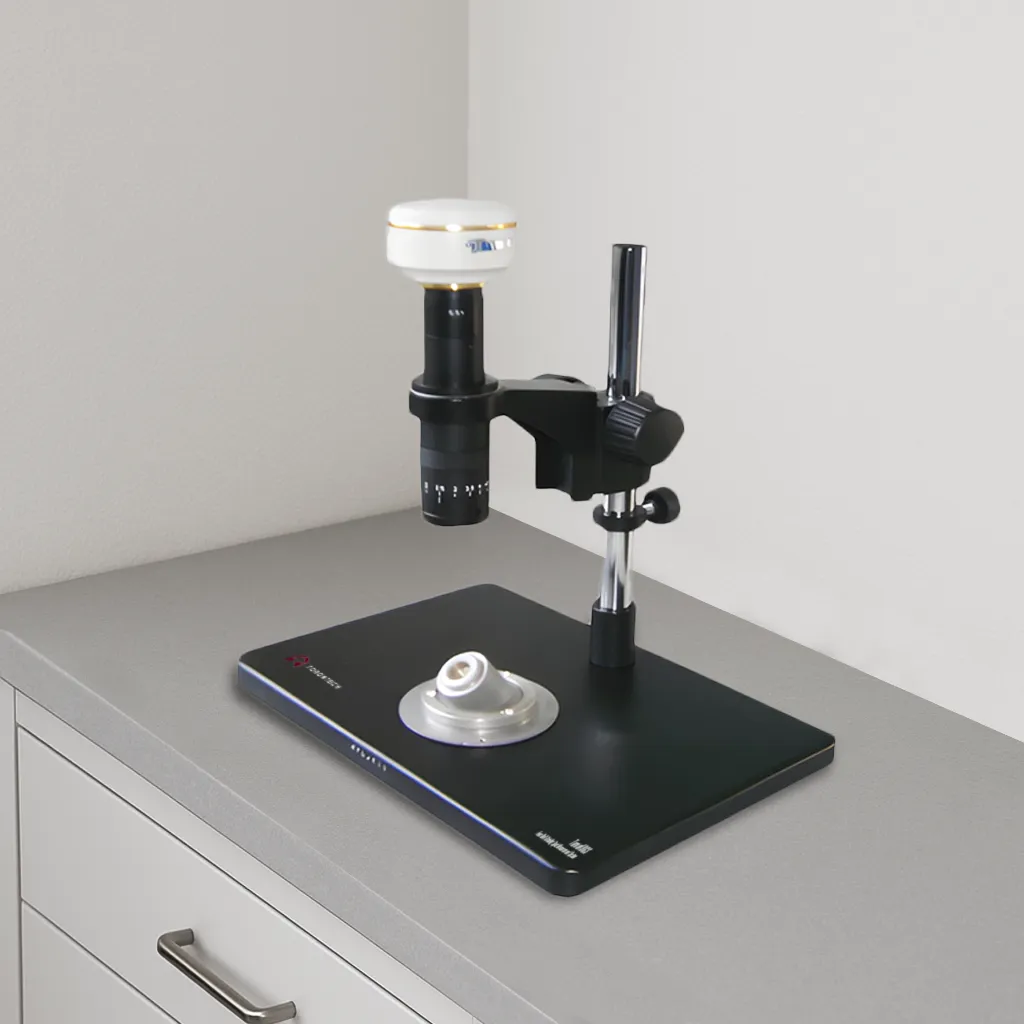

Four Ball Grinding Spot Measurement System – Toron4BGS is a specialized system designed to measure wear spots in our MRS series four-ball friction tester. This advanced tool combines optical, microelectronic, and computer technologies to deliver accurate, repeatable results with speed and ease.
It streamlines the entire process—wear measurement, data analysis, inspection reporting, file management, and report printing—all in one solution. Additionally, it allows for image processing, annotation, editing, and saving in standard image file formats.
| No. | Product Performance | Technical Parameter |
|---|---|---|
| 1 | Measurement range | 2.5× objective lens, maximum 2mm |
| 2 | Measurement error | Not greater than ±1% |
| 3 | Working distance of 3 objective lenses | 2.5× objective lenses approximately 33mm |
| 4 | Camera specifications | UCMOS03100KPA |
| Specification | Details |
|---|---|
| Model | CT-40x |
| Capture Method | Direct cooling |
| No-Load Minimum Temperature | -40°C |
| Cold Trap Size | φ160 × 250 mm |
| Cold Trap Capacity | 5 L |
| Cold Trap Material | 06Cr19Ni10 |
| Vacuum Nozzle | KF25 |
| Safety Features | Delay, over-current, over-heat, over-pressure |
| Refrigerant | R404A |
| Ambient Temperature Range | 5°C to 35°C |
| Dimensions | 388 W × 454 D × 781 H mm |
| Net Weight | 48 kg |
| Power Supply | 220–240V~, 50Hz |
| Protection Grade | IP20 |
| Specification | Details |
|---|---|
| Model | CT-40 |
| Capture Method | Indirect cooling |
| No-Load Minimum Temperature | -40°C |
| Cold Trap Size | φ160 × 250 mm |
| Cold Trap Capacity | 5 L |
| Cold Trap Material | 06Cr19Ni10 |
| Cold Trap Bottle Size | Φ50 × 300 mm |
| Vacuum Nozzle | φ12 hose connector |
| Cold Trap Material | 3.3 borosilicate glass |
| Number of Cold Trap Bottles | 3 |
| Safety Features | Delay, over-current, over-heat, over-pressure |
| Refrigerant | R404A |
| Ambient Temperature Range | 5°C to 35°C |
| Dimensions | 350 W × 470 D × 800 H mm |
| Net Weight | 45 kg |
| Voltage | 220–240V~, 50Hz |
| Protection Grade | IP20 |
