Furnace tubes are critical components in thermal processing systems capable of reaching extreme temperatures up to 1800°C . When working at such high temperatures, even small variations across the heating chamber can significantly impact your results. While traditional temperature monitoring gives you basic readings, precise temperature mapping provides comprehensive insights into thermal distribution throughout the entire furnace.

Tube furnaces offer unmatched thermal uniformity, subjecting workpieces to sustained high temperatures across their full 360° axis . However, achieving this uniformity requires more than basic temperature control. Advanced digital controllers with programmable PID control allow you to precisely execute complex thermal profiles for processes like annealing, sintering, and hardening.

Additionally, material selection plays a crucial role in furnace performance, with options ranging from alumina and quartz to molybdenum and tungsten tubes designed to withstand high temperatures, corrosive environments, and mechanical stress . Understanding these factors helps you optimize your temperature mapping strategy for better control and consistently superior results.

Table of Contents

Key Takeaways

Understanding precise furnace tube temperature mapping is essential for achieving optimal thermal processing results and maintaining equipment longevity.

Temperature mapping creates comprehensive thermal profiles using multiple sensors strategically placed throughout furnace tubes, unlike basic monitoring that uses fewer permanent sensors for real-time alerts.
Design factors critically impact mapping precision – vertical furnaces provide better uniformity than horizontal ones, quartz tubes offer superior thermal stability up to 1000°C, and proper insulation ensures consistent heat distribution.
Strategic thermocouple placement and calibration protocols are essential – use 11 thermocouples distributed across heating zones with NIST-traceable calibration maintaining error under 0.5°C for accurate results.
Precise mapping delivers measurable benefits including 10-40% energy efficiency improvements, extended tube life from 5 to 25 years, and enhanced process control that prevents costly equipment failures.
Operating tubes just 50°C above design temperature can reduce lifespan from 20-25 years to only 5 years, making early hotspot detection through mapping crucial for safety and cost control.

What is Furnace Tube Temperature Mapping?

Temperature mapping in furnace tubes involves a systematic process of recording temperature distributions throughout the thermal system to ensure precise control and optimal performance. Unlike basic temperature readings, mapping creates a comprehensive thermal profile of your entire furnace environment.

Definition and Purpose in Thermal Processing

Temperature mapping is a methodical exercise that determines if your furnace environment can maintain temperatures within defined limits [1]. For tube furnaces specifically, this process involves placing multiple temperature sensors at strategic locations throughout the furnace to collect data over a predetermined time period—typically 24-48 hours or up to one week [2].

The primary purpose of temperature mapping is to verify the uniformity of heat distribution across your furnace tubes. This uniformity survey determines the range of temperatures present at different locations under normal operating conditions. Even in seemingly uniform environments, temperatures can vary by as much as 10°C from one location to another [1].

For industrial furnace tubes, accurate temperature mapping serves as a critical preventative measure. Proper monitoring can extend tube life dramatically—considering that operating tubes just 50°C above recommended temperatures can reduce their lifespan from 20-25 years to merely 5 years. Consequently, temperature mapping helps you identify potential issues before they cause catastrophic failures.

How It Differs from General Temperature Monitoring

Temperature monitoring and temperature mapping, although related, serve distinctly different functions in furnace tube management:

Methodology: Temperature monitoring involves continuous measurement using fewer sensors permanently installed in your furnace system. In contrast, mapping uses a grid of multiple sensors temporarily placed throughout the entire furnace environment.
Duration: Monitoring is continuous and permanent, whereas mapping is a periodic exercise performed at specific intervals or after significant system changes.
Output: Monitoring provides real-time alerts about temperature excursions, but mapping delivers comprehensive reports including floor plans, temperature ranges, graphical data representations, and detailed excursion analysis.
Purpose: Monitoring focuses on maintaining daily operational safety, whereas mapping helps you identify cold spots, hot spots, and areas with inconsistent temperatures—essentially serving as a quality assurance measure.

Furthermore, temperature mapping should precede temperature monitoring implementation since mapping results highlight potential problem areas and provide guidance on where permanent monitoring sensors should be positioned. This sequential approach ensures your continuous monitoring system captures data from the most critical locations within your furnace tube setup.

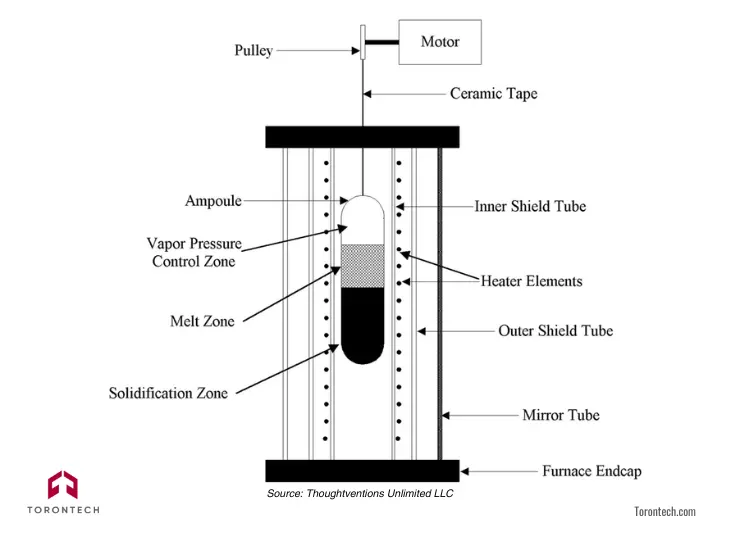

Design Factors That Affect Mapping Precision

Several design elements within tube furnaces directly influence the accuracy of temperature mapping results. Understanding these factors helps you achieve more precise thermal control throughout your processes.

Tube Furnace Geometry and Orientation (Horizontal vs Vertical)

The orientation of your tube furnace significantly affects heat distribution patterns. Horizontal tube furnaces typically rely primarily on radiation for heat transfer, which can lead to slight temperature variations along the sample length [1]. In contrast, vertical tube furnaces utilize both radiation and convection, resulting in more uniform temperature distribution. Moreover, the sample loading process differs substantially—vertical furnaces allow easier insertion of samples, particularly for longer specimens, while horizontal configurations often require more complex handling mechanisms [1].

Spacing between tubes also matters for industrial furnace setups. Research indicates that an ideal horizontal distance between radiant tubes of approximately (π-1)d (where d is the tube diameter) produces the most homogeneous heat flux on processed materials [2]. For vertical placement, a distance of 0.5d between tubes and furnace walls represents an optimal compromise between necessary furnace height and resulting temperatures [2].

Material Impact: Quartz vs Stainless Steel Tubes

Tube material selection dramatically influences mapping precision. Quartz tubes withstand temperatures up to 1000°C, making them suitable for high-temperature applications. Their low thermal expansion coefficient means minimal dimensional changes during temperature fluctuations. Therefore, quartz provides more stable conditions for precise mapping.

Stainless steel tubes, though limited to 300-600°C temperature resistance, offer superior mechanical strength. Given that quartz is relatively brittle and prone to breakage, steel tubes provide greater durability in demanding industrial environments. First, consider your application’s temperature requirements—then evaluate whether chemical stability (where quartz excels) or mechanical robustness is more critical for your mapping needs.

Insulation and Heating Element Placement

Proper insulation fundamentally impacts temperature uniformity and mapping precision. High-quality insulation reduces heat dissipation, improves efficiency, and ensures uniform heating throughout the chamber. This uniform heat distribution is crucial for accurate temperature mapping.

The arrangement of heating elements around furnace tubes also deserves attention. Multi-zone tube furnaces with individually controlled heating sections deliver better temperature uniformity across the entire length. This zoned approach enables creation of well-defined temperature gradients when needed, offering flexibility for diverse thermal processes.

Best Practices for Accurate Temperature Mapping

Achieving accurate temperature profiles across furnace tubes requires meticulous attention to detail and proper implementation of established methodologies. Precise mapping techniques serve as the foundation for reliable thermal processing results.

Thermocouple Grid Layout in Lab Tube Furnace

Effective temperature mapping starts with strategic thermocouple placement. First, determine your furnace classification—ranging from Class 1 (most stringent with ±3°C deviation allowance) to Class 6 (least restrictive with ±28°C deviation tolerance). The number of required temperature sensors depends directly on your furnace’s work zone volume—larger chambers require more measurement points for accurate representation.

For tube furnaces, position thermocouples at equal intervals throughout the heating zone, paying special attention to the corners and center where temperature differences commonly occur. Eleven thermocouples distributed over the heating section provide comprehensive coverage for typical laboratory setups [3]. Indeed, proper sensor grid design allows you to document any hot or cold spots that might affect your process outcomes.

Calibration Protocols for High Temperature Furnaces

Reliable calibration encompasses two critical tests: System Accuracy Tests (SAT) and Temperature Uniformity Surveys (TUS). SATs evaluate errors within your temperature control system, regardless of application, enabling more consistent quality control.

For high-temperature calibration:

Use thermocouples with appropriate temperature ratings—platinum-rhodium types (R, S, or B) for oxidizing atmospheres and tungsten-rhenium types (G, C, or D) for non-oxidizing environments.
Ensure all measurement devices have NIST-traceable 3-point calibration with guaranteed error under 0.5°C at each calibration point [14]
Perform initial TUS before first use of the furnace, with subsequent frequency determined by furnace classification

Mapping Under Controlled Atmospheres (Inert/Reducing)

Atmospheric composition substantially impacts mapping accuracy, especially at elevated temperatures. When mapping under inert conditions, establish a constant flow of purified gas (commonly argon) at approximately 60 cc/minute [5]. An oxygen removal unit should precede the furnace inlet to prevent oxidation of both the furnace components and thermocouples [5].

For optimal results, maintain oxygen partial pressure below 10^-10 and continuously monitor atmospheric composition [5]. Subsequently, select appropriate thermocouple sheathing materials—ceramic or platinum-rhodium alloys for oxidizing environments and tantalum or molybdenum for reducing atmospheres.
