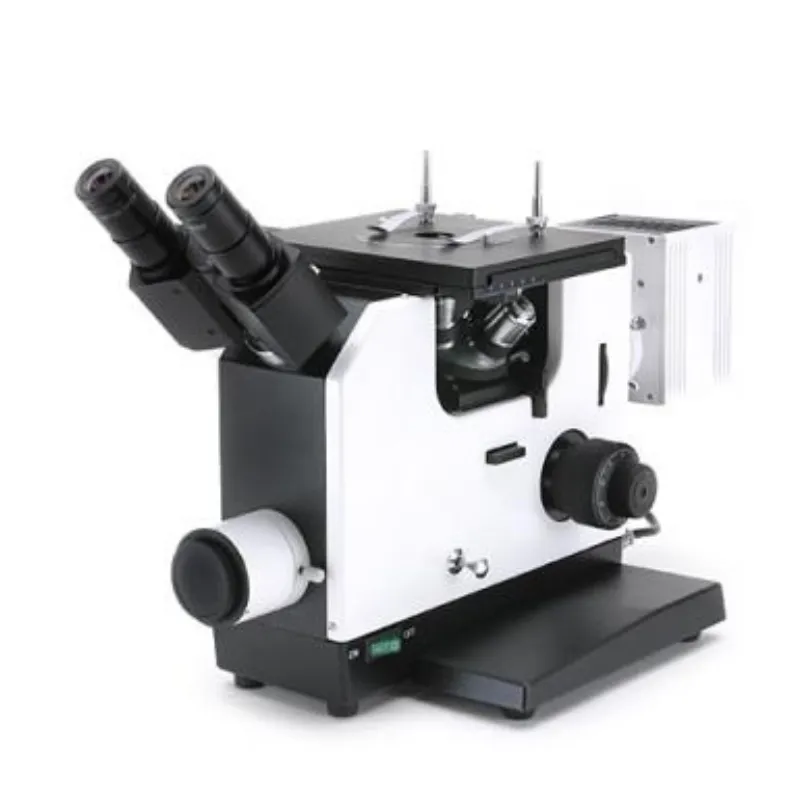

Inverted Metallurgical Microscope - ToronMM-6A
The ToronMM-6A Inverted Metallurgical Microscope is a modern and cost-effective solution designed for surface analysis, crystallographic studies, and material evaluation.
As part of our line of affordable metallurgical microscopes, it offers a powerful combination of performance, usability, and imaging flexibility. Making it ideal for research labs, production facilities, and academic institutions.
Equipped with a polarized light set for enhanced contrast and structure visibility, this metallurgical analysis microscope features a binocular head with a dedicated photo port for seamless digital imaging.
The rotatable quadruple nosepiece, Plan LWD objectives, widefield eyepieces, and integrated measuring eyepiece provide crisp, detailed visuals for a range of observation needs. Its large mechanical stage with coaxial X/Y controls, smooth coarse/fine focusing system, and halogen illumination ensure precise sample handling and optimal viewing conditions.
The ToronMM-6A is built to support a wide range of material-focused applications, including:
- Crystallographic analysis using polarized light for phase differentiation and structural clarity
- Surface measurement and inspection of coatings, treatments, and metallic layers
- Failure analysis and evaluation of heat-affected zones in welds and industrial parts
- Microstructure observation of metals and alloys in research and QA settings
- Dimensional evaluation and documentation with optional camera adapters and video eyepieces
- Educational and training environments requiring reliable, affordable metallurgical microscopes with advanced optical capabilities
Whether in a metallurgical lab, industrial inspection room, or research facility, the ToronMM-6A metallurgical analysis microscope offers the clarity, stability, and adaptability required for accurate results and efficient workflows.
Inverted Metallurgical Microscope - ToronMM-6A Features
- Binocular head with seperate photo tube for photography & video
- Rotatable precision engineered quadruple (4) nosepiece
- Plan LWD objective set 10X/0.25, 20X/0.40, 40X/0.65, 100X/1.25
- Widefield WF10X/18 eyepieces (2)
- Widefield WF12X/14 eyepieces (2)
- Widefield WF10X/14 measuring eyepiece
- Large mechanical stage ( 7 x 6 inch) with co-axial controls for X and Y
- Co-axial coarse and fine focus control
- Halogen 6V20W illumination with field diaphragm and brightness control
- Polarising filters included
- ACCESSORIES: reflex 35mm camera adapter, video eyepiece
