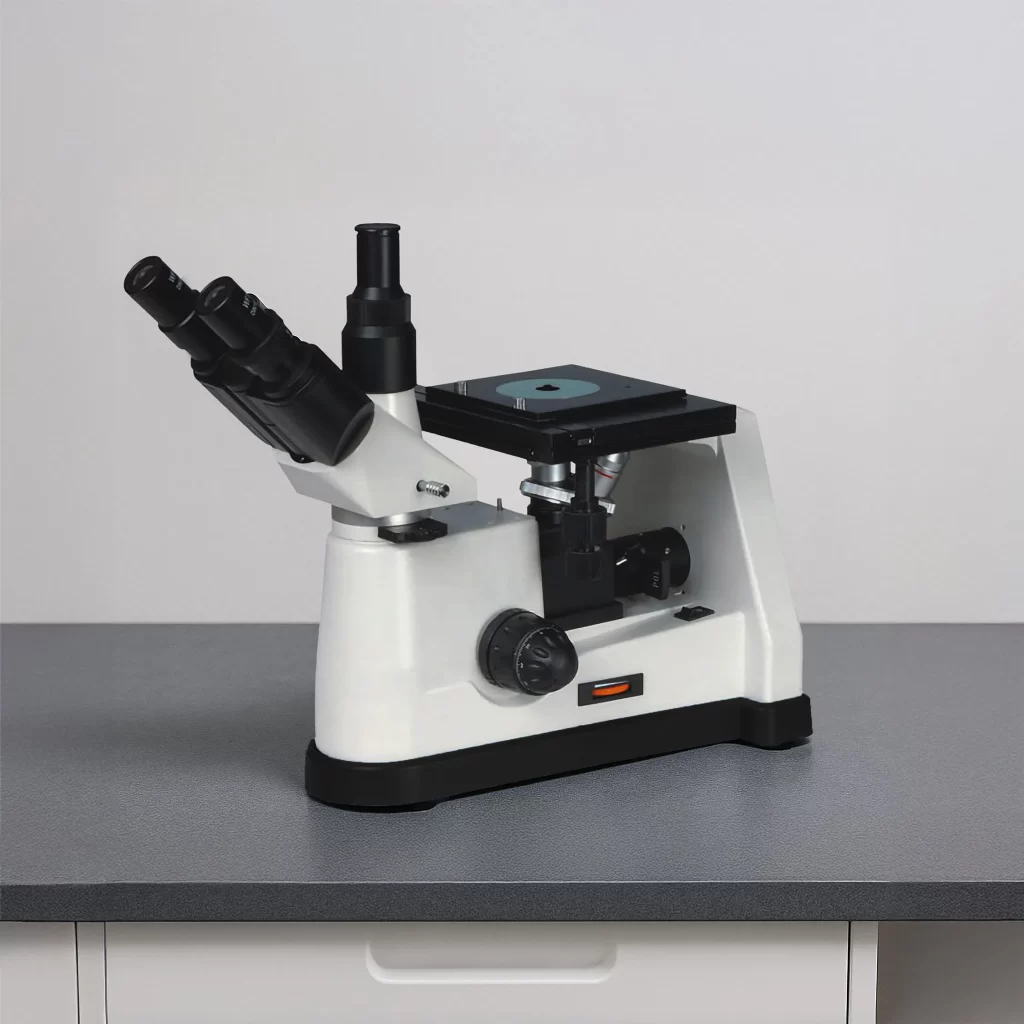

Metallurgical Microscope ToronMM-JM2
The ToronMM-M2 Metallurgical Microscope is a professional-grade optical system designed for accurate microstructure evaluation in metallurgical labs, materials science research, and industrial inspection.
As part of our lineup of advanced metallurgical microscopes for industry, it combines robust construction, high-precision optics, and ergonomic design to deliver reliable performance in demanding environments.
Ideal as a metal surface inspection microscope, the ToronMM-M2 offers sharp, high-contrast imaging for detecting surface defects, evaluating coatings, and analyzing material phases. Its optical clarity and stable platform also make it a trusted microscope for grain structure analysis, supporting critical tasks such as grain size measurement and inclusion rating in both research and production settings.
Metallurgical Microscope ToronMM-JM2 Features
1. Advanced Trinocular Viewing Head
The ToronMM-JM2 features a 45° inclined, compensation-free trinocular head for ergonomic, fatigue-free viewing and high-quality image capture—ideal for extended microscopy sessions in industrial and laboratory environments.
2. High-Quality Eyepieces
Comes with widefield WF10×/18mm eyepieces for clear observation. An optional eyepiece version with a 0.1mm crosshair reticule is available, perfect for precise measurement and calibration tasks.
3. Plan Metallurgical Objectives
Equipped with standard DIN Plan objectives that deliver sharp, flat-field images across various magnifications:
- 4× (NA 0.10, 25mm Working Distance)
- 10× (NA 0.25, 11mm W.D.)
- 20× (NA 0.40, 9mm W.D.)
- 40× (NA 0.60, 3.8mm W.D.)
Optional objectives up to 100× magnification are available for high-resolution material analysis.
4. Precision Mechanical Stage & Focusing System
The double-layer mechanical stage (172×142mm) with a 30×30mm movement range offers precise specimen positioning. Coaxial coarse and fine focusing knobs allow for micro-level adjustments with 0.002mm precision—essential for metallographic inspection and documentation.
5. Versatile Illumination System
Includes a built-in 12V/20W halogen lamp with adjustable brightness, field and aperture diaphragms. Comes with green, blue, and yellow filters to enhance image contrast under different sample conditions.
6. Integrated Polarizing System
The built-in polarizing system includes a 360° rotatable analyzer and a removable polarizer/analyzer pair, enabling advanced contrast techniques critical for material structure analysis and defect detection.
7. Optional Accessories for Enhanced Imaging
- Metallurgical image analysis software
- CMOS digital eyepiece cameras (1.3MP to 5.0MP)
- Photography and CCD camera adapters
- Basic darkfield observation kit
- High-resolution CCD camera (520 TV lines)
| Component | Specification |
|---|---|
| Viewing Head | Compensation Free Trinocular Head, Inclined at 45° |
| Eyepiece | WF10×/18mm |
| WF10×/18mm, crosshair with reticule 0.1mm | |
| Objective | DIN Plan Metallurgical objectives: 4×/0.1 W.D.25mm, 10×/0.25 W.D.11mm, 20×/0.4 W.D.9mm, 40×/0.6 W.D.3.8mm |
| Stage | Double layer mechanical stage |
| Stage Size: 172mm × 142mm | |
| Moving Range: 30mm × 30mm | |
| Filter | Inserting type filter (green, blue, yellow) |
| Focusing | Coaxial coarse & fine focusing adjustment with rack and pinion mechanism. Fine focusing scale value 0.002mm |
| Light Source | With aperture iris diaphragm and Field diaphragm, Halogen lamp 12V/20W, AC85V-230V, Adjustable Brightness |
| Polarizing Device | Analyzer rotatable 360°, both Polarizer and Analyzer can be moved out of the light path |
| Checking Tool | 0.01mm Micrometer |
| Optional Accessory | Professional metallurgical image analysis software |
| 1.3Mega, 2.0Mega, 3.0Mega, 5.0Mega Pixels CMOS Digital camera eyepiece | |
| DIN Plan Metallurgical objectives: 50×80×100× | |
| Photography attachment and CCD Adapter 0.5×, ×0.57×0.75× | |
| Simple Darkfield kit | |
| CCD Camera, colour 1/3″High resolution 520 TV lines |
