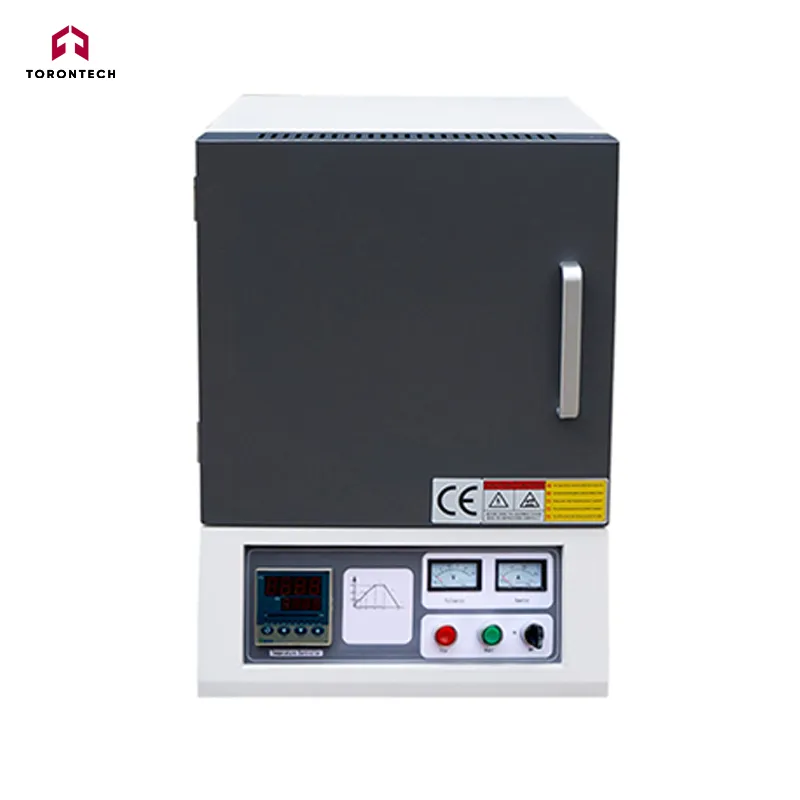

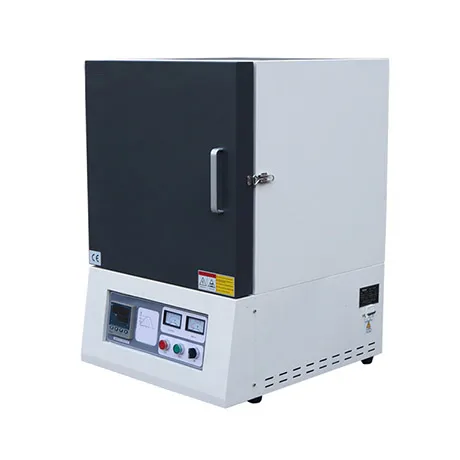

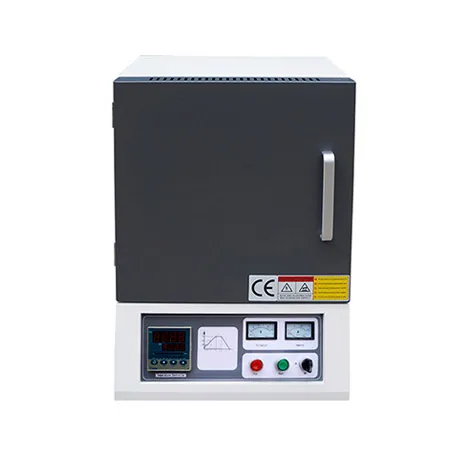

Muffle Furnace TT-MF-12-1700
Muffle Furnace TT-MF-12-1700 is designed for high-temperature heat treatment processes such as sintering ceramic materials, nanomaterials, semiconductors, powder metallurgy, and other advanced materials. It is widely used in universities, research institutes, manufacturing facilities, as well as in the petrochemical and aerospace sectors.

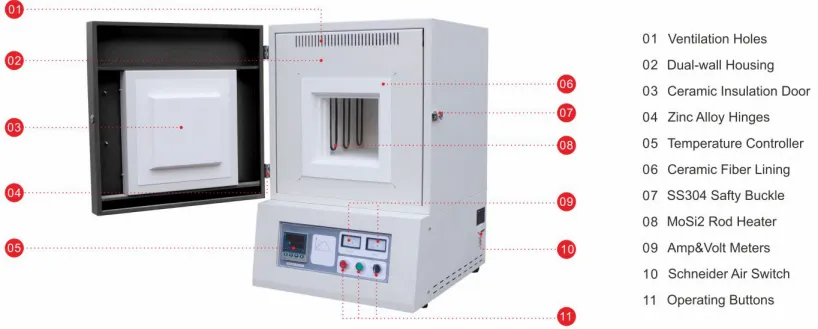

Muffle Furnace TT-MF-12-1700 Features
Furnace Shell
- Constructed from Q235 low-carbon steel with an electrostatic, corrosion-resistant coating.
- Reinforced with a durable double-layer metal frame to keep the exterior temperature low.

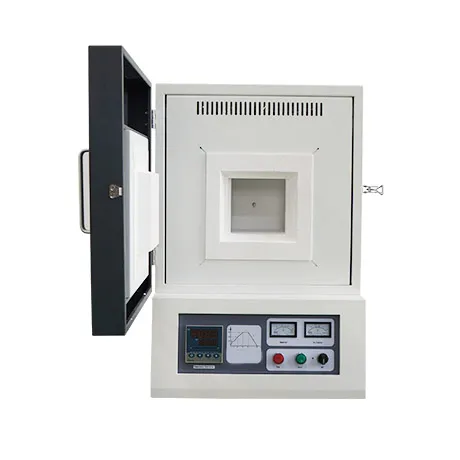

- Features a right-hinged side-opening door for easy access and operation.
Refractory Material
- Multi-layer insulation includes lightweight alumina ceramic fiber and premium insulation boards.
- Asbestos-free, designed for minimal heat loss and reduced energy consumption.
Heating System
- Equipped with high-quality MoSi₂ heating elements, securely mounted on both sides of the chamber.
- Provides efficient, uniform free-radiant heating with excellent energy performance and extended lifespan.
- Dual-side heating ensures even temperature distribution.
- Customizable models available with maximum temperatures of 1750°C or 1800°C, suitable for ceramic sintering.
Temperature Control Panel
- Utilizes PID and SCR control for accurate temperature regulation.
- Includes a B-type platinum-rhodium thermocouple (50–1800 °C) with long-lasting performance.
- Furnace door features an automatic shutoff safety switch when opened.
Program Controller
- Advanced controller supports complex thermal processes.
- User-friendly interface with flexible programming.
- Stores up to 30 programmable segments.
- Built-in over-temperature and fault alarms with automatic safety protocols.
|
Model |
TT-MF-1-1700 |
TT-MF-3-1700 |
TT-MF-8-1700 |
TT-MF-12-1700 |
TT-MF-20-1700 |
TT-MF-36-1700 |
TT-MF-45-1700 |
|
Chamber size （W xD xH）mm |
100 x120x100 |
150 x150x150 |
200x200x200 |
200x300x200 |
250 x320x250 |
300x400x300 |
300 x500x300 |
|
Outer size （W xD xH）mm |
383 x432x660 |
510x560x870 |
600x620x920 |
600x693x920 |
610 x730x970 |
700x840x1500 |
700x940x1500 |
|
Max temperature |
1700℃ |
||||||
|
Working temperature |
1600℃ |
||||||
|
Voltage |
220V/2KW (110V is also available) |
220V/4KW (110V is also available) |
220V/5KW (110V is also available) |
220V/6KW (110V is also available) |
220V/7KW (110V is also available) |
380V/15KW |
380V/18KW |
|
Heating element |
MoSi2 rod |
||||||
|
Chamber material |
Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration |
||||||
|
Temp.Precision |
±1℃ |
||||||
|
Termocouple |
B Type termocouple |
||||||
|
Temperature controller |
Intelligent microcomputer PID temperature control instrument, SCR/SSR control, PID parameter self-tuning function; programmable 32 time periods, program heating, program heat preservation, program cooling |
||||||
|
Heating rate |
1-15℃/min free adjustment |
||||||
|
Furnace structure |
Furnace temperature control integrated structure |
||||||
|
Equipment protection |
Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically |
||||||
|
Safety protection |
The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators |
||||||
|
Quality certificate |
ISO9001 CE SGS TUV |
||||||
|
Optional |
1. Optional exhaust chimney for evacuation of volatile substances 2. Optional corundum crucible, furnace floor, shed board and other kiln furniture 3. Optional material recorder for online recording of temperature curves |
||||||
