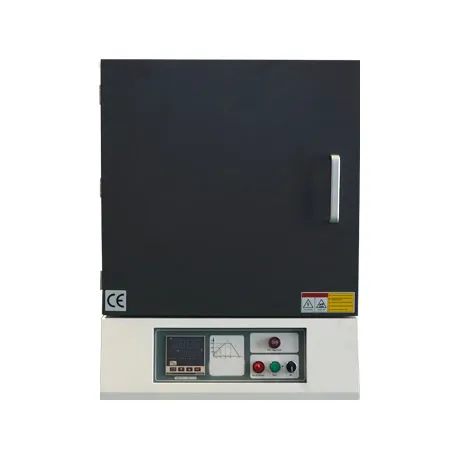

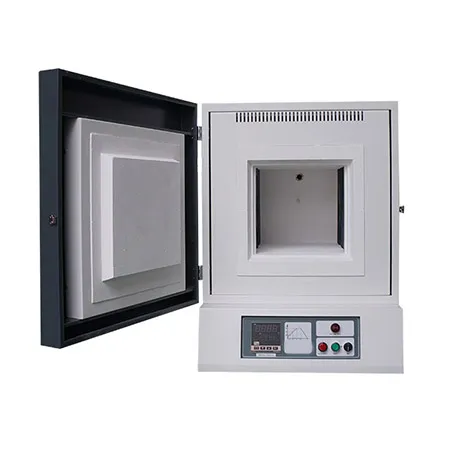

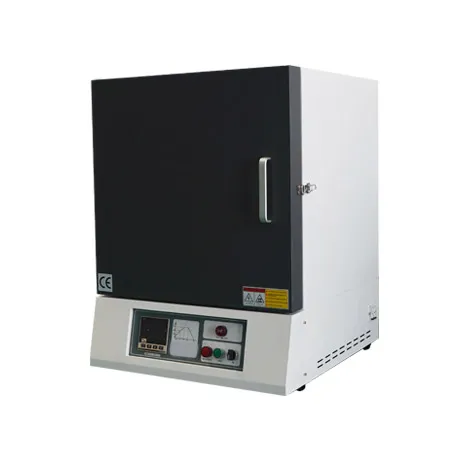

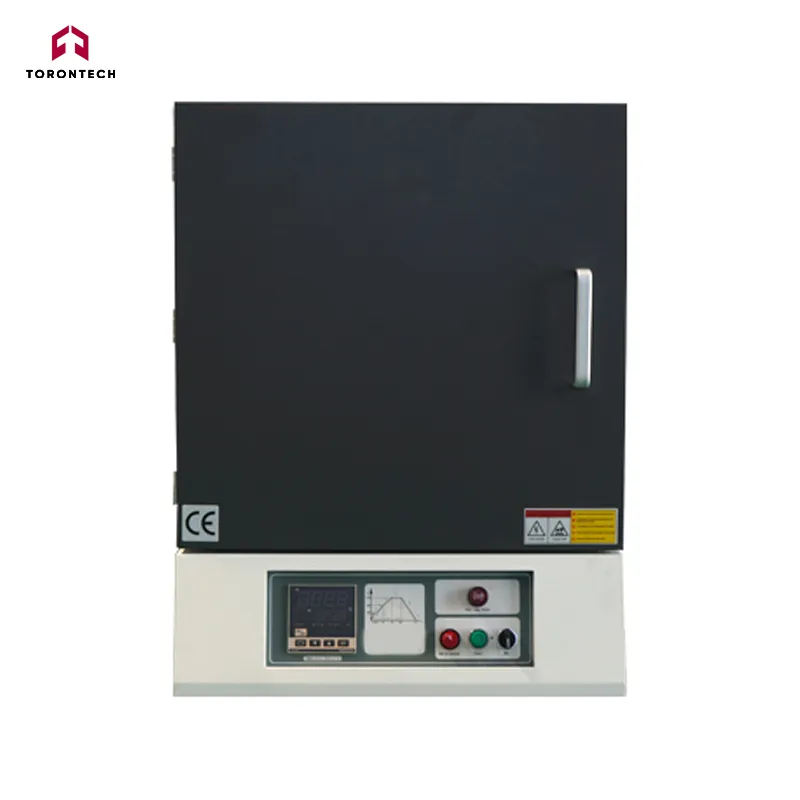

Muffle Furnace TT-MF-18-1400
Chamber Muffle Furnace TT-MF-18-1400 is designed for high-temperature heat treatment processes such as sintering advanced materials, including metals, ceramics, nanomaterials, and semiconductors.

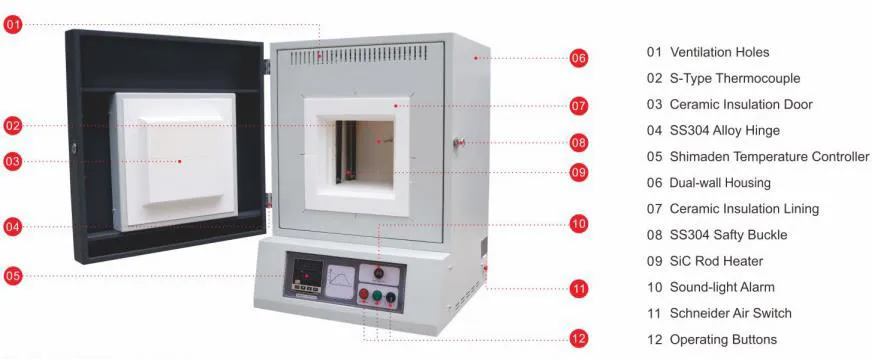

Muffle Furnace TT-MF-18-1400 Features
Furnace Shell
- The shell is constructed from Q235 low-carbon steel with an electrostatic coating that resists corrosion.
- A robust double-layer metal frame helps maintain a low external surface temperature.
- The side-opening furnace door swings to the right for easy operation.
Refractory Material
- Features a multi-layer insulation system made of lightweight alumina ceramic fiber and a high-quality insulation board.
- Free of asbestos, it ensures minimal heat loss and low energy consumption.
Heating System
- High-performance silicon carbide (SiC) heating elements are securely mounted on both sides of the furnace chamber.
- Heat is evenly distributed through free-radiation heating, enhancing energy efficiency and extending service life.
- Dual-side heating (left and right) promotes excellent temperature uniformity.
- A durable SiC bottom plate protects the lower heating elements, supports horizontal loads, and provides strong thermal conductivity.
Temperature Control Panel
- Uses PID and SSR control for accurate temperature regulation.
- Equipped with a platinum-rhodium S-type thermocouple (0–1600°C) for reliable temperature monitoring and extended lifespan.
- Includes a safety switch that cuts power when the furnace door is opened.
Program Controller
- Advanced control system suited for demanding thermal processes
- User-friendly interface with flexible programming options
- Supports up to 30 programmable segments in a single curve
- Built-in over-temperature and system fault alarms with automatic safety shutdown
|
Model |
TT-MF-1.7-1400 |
TT-MF-3-1400 |
TT-MF-8-1400 |
TT-MF-12-1400 |
TT-MF-18-1400 |
TT-MF-36-1400 |
TT-MF-45-1400 |
|
Chamber size （W xD xH）mm |
120 x120x120 |
150 x150x150 |
200x200x200 |
200x300x200 |
250 x300x250 |
300x400x300 |
300 x500x300 |
|
Outer size（W xD xH）mm |
460 x500x720 |
490x530x750 |
575x610x825 |
590 x680x835 |
610 x700x860 |
650x770x900 |
975 x930x1200 |
|
Max temperature |
1400℃ |
||||||
|
Working temperature |
1350℃ |
||||||
|
Voltage |
220V/2.5KW (110V is also available) |
220V/3KW (110V is also available) |
220V/5KW (110V is also available) |
220V/5KW (110V is also available) |
220V/6KW (110V is also available) |
380V/12KW |
380V/14KW |
|
Heating element |
silicon carbide rod (SIC) |
||||||
|
Chamber material |
Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration |
||||||
|
Temp.Precision |
±1℃ |
||||||
|
Termocouple |
S Type termocouple |
||||||
|
Temperature controller |
Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 30 program segments, program temperature rise, program heat preservation, program cooling |
||||||
|
Heating rate |
1-30℃/min free adjustment |
||||||
|
Furnace structure |
Furnace temperature control integrated structure |
||||||
|
Equipment protection |
Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically |
||||||
|
Safety protection |
The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators |
||||||
|
Quality certificate |
ISO9001 CE SGS TUV |
||||||
|
Optional |
1. Optional exhaust chimney for evacuation of volatile substances 2. Optional corundum crucible, furnace floor, shed board and other kiln furniture 3. Optional material recorder for online recording of temperature curves |
||||||
