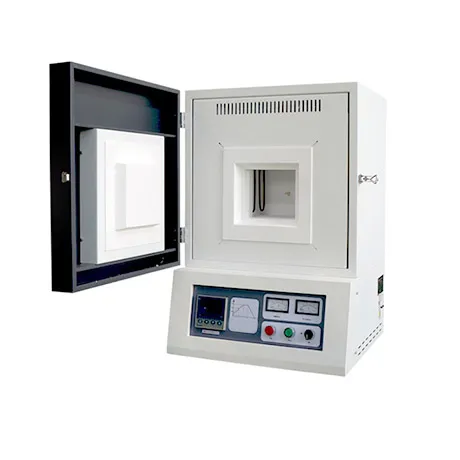

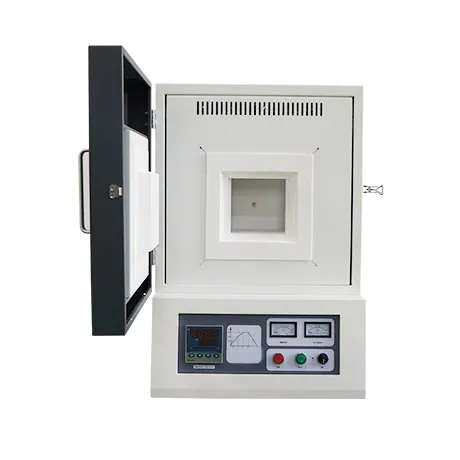

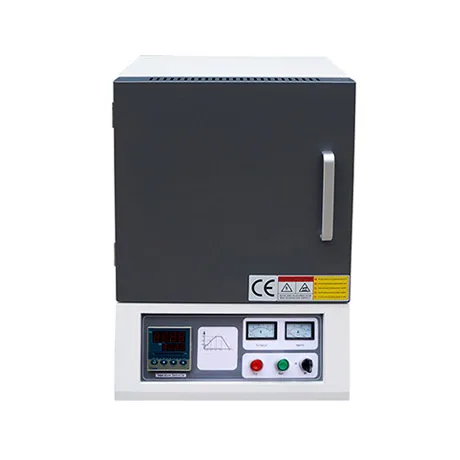

Muffle Furnace TT-MF-20-1700
TT-MF-20-1700 High-Temperature Muffle Furnace is designed for heat treatment processes such as sintering ceramic materials, nanomaterials, semiconductor materials, powder metallurgy, and other advanced materials. It is widely used in universities, research institutions, manufacturing facilities, the petrochemical sector, and the aerospace industry.

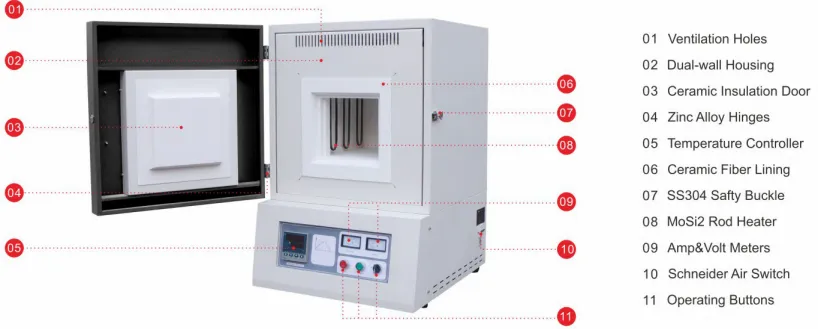

Muffle Furnace TT-MF-20-1700 Features
Furnace Shell
- Crafted from Q235 low-carbon steel, the shell features an electrostatically resistant, corrosion-resistant surface.
- Its robust double-layer metal frame minimizes exterior temperature for safer handling.
- The side-opening door swings to the right for easy access and operation.
Refractory Material
The furnace includes a multi-layer insulation system composed of lightweight alumina ceramic fiber and premium insulation boards. It is free from asbestos, ensuring low heat loss and reduced energy use.
Heating System
- Equipped with high-quality MoSi₂ heating elements, securely positioned on both sides of the chamber.
- This dual-sided setup ensures even heat distribution, enhances efficiency, and supports long-term performance.
- Custom models are available with maximum temperatures of 1750°C and 1800°C, ideal for sintering ceramic materials.
Temperature Control Panel
- Features PID and SCR control for accurate temperature management.
- Utilizes an international-standard B-type platinum-rhodium thermocouple, offering a temperature range of 50–1800°C and extended service life.
- A built-in safety switch cuts power when the furnace door is opened.
Program Controller
- Advanced controller supports complex heating processes
- User-friendly interface with flexible programming
- Stores up to 32 programmable segments
- Includes over-temperature and fault alarms for automatic protection
|
Model |
TT-MF-1-1700 |
TT-MF-3-1700 |
TT-MF-8-1700 |
TT-MF-12-1700 |
TT-MF-20-1700 |
TT-MF-36-1700 |
TT-MF-45-1700 |
|
Chamber size （W xD xH）mm |
100 x120x100 |
150 x150x150 |
200x200x200 |
200x300x200 |
250 x320x250 |
300x400x300 |
300 x500x300 |
|
Outer size （W xD xH）mm |
383 x432x660 |
510x560x870 |
600x620x920 |
600x693x920 |
610 x730x970 |
700x840x1500 |
700x940x1500 |
|
Max temperature |
1700℃ |
||||||
|
Working temperature |
1600℃ |
||||||
|
Voltage |
220V/2KW (110V is also available) |
220V/4KW (110V is also available) |
220V/5KW (110V is also available) |
220V/6KW (110V is also available) |
220V/7KW (110V is also available) |
380V/15KW |
380V/18KW |
|
Heating element |
MoSi2 rod |
||||||
|
Chamber material |
Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration |
||||||
|
Temp.Precision |
±1℃ |
||||||
|
Termocouple |
B Type termocouple |
||||||
|
Temperature controller |
Intelligent microcomputer PID temperature control instrument, SCR/SSR control, PID parameter self-tuning function; programmable 32 time periods, program heating, program heat preservation, program cooling |
||||||
|
Heating rate |
1-15℃/min free adjustment |
||||||
|
Furnace structure |
Furnace temperature control integrated structure |
||||||
|
Equipment protection |
Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically |
||||||
|
Safety protection |
The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators |
||||||
|
Quality certificate |
ISO9001 CE SGS TUV |
||||||
|
Optional |
1. Optional exhaust chimney for evacuation of volatile substances 2. Optional corundum crucible, furnace floor, shed board and other kiln furniture 3. Optional material recorder for online recording of temperature curves |
||||||
