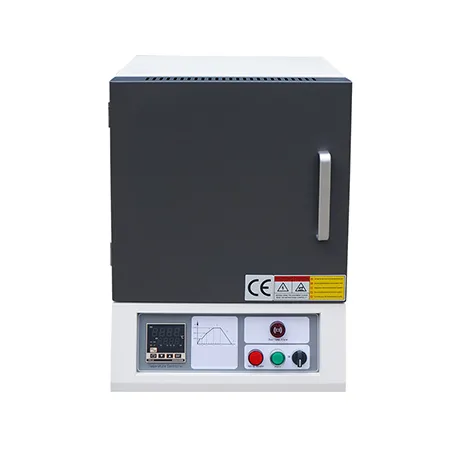

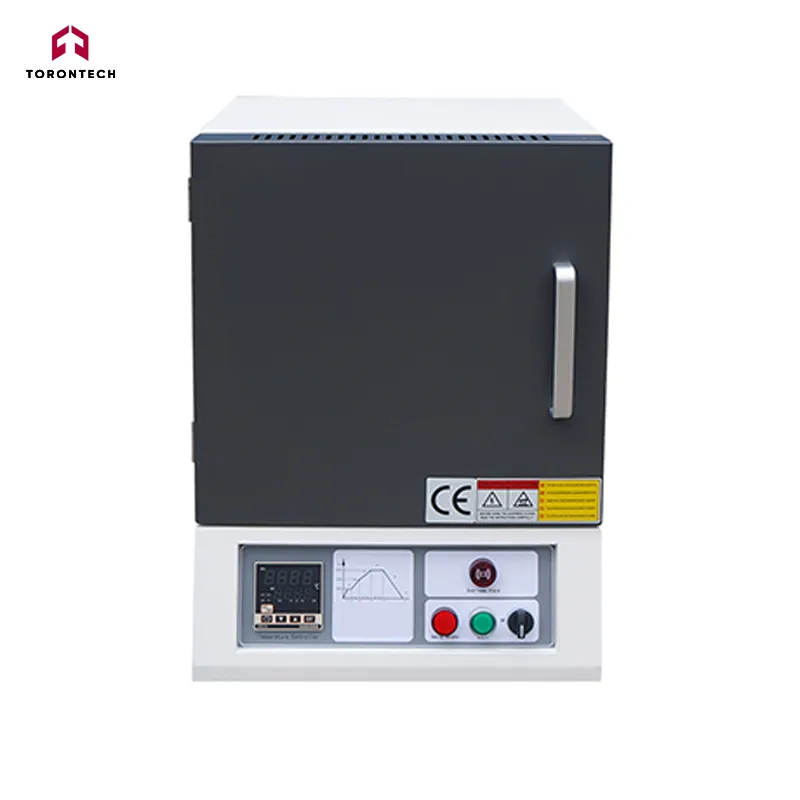

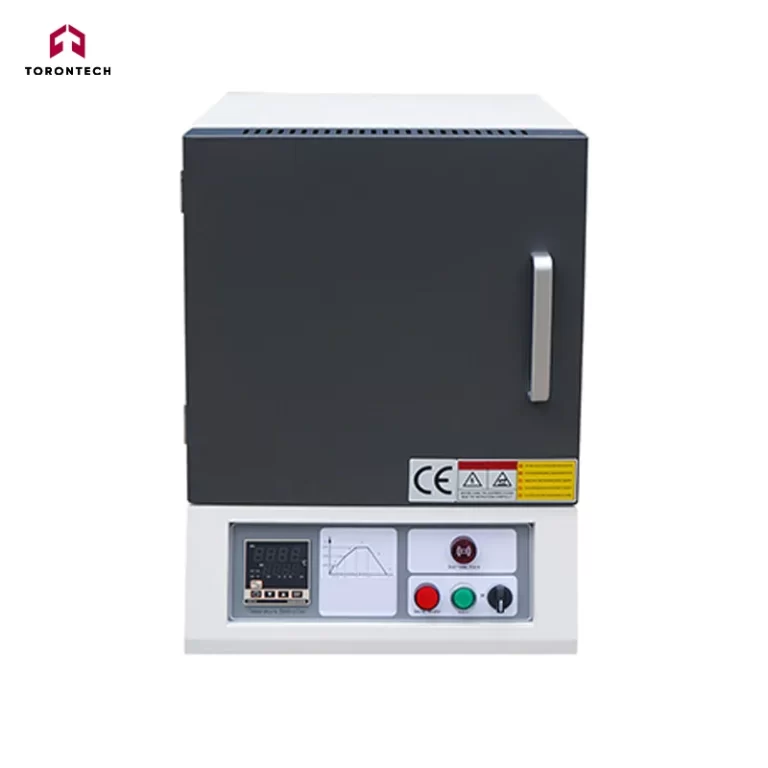

Muffle Furnace TT-MF-3-1200
Laboratory Muffle Furnace TT-MF-3-1200 is used for sintering and heat treating advanced materials, including metals, ceramics, nanomaterials, and semiconductors. It supports high-temperature thermal processing.
Muffle Furnace TT-MF-3-1200 Features
Furnace Shell
- Constructed from Q235 low-carbon steel with an electrostatic-resistant, corrosion-resistant finish.
- Durable metal frame design helps maintain a low external surface temperature.

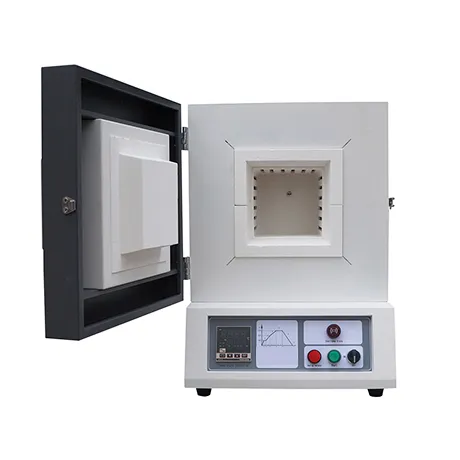

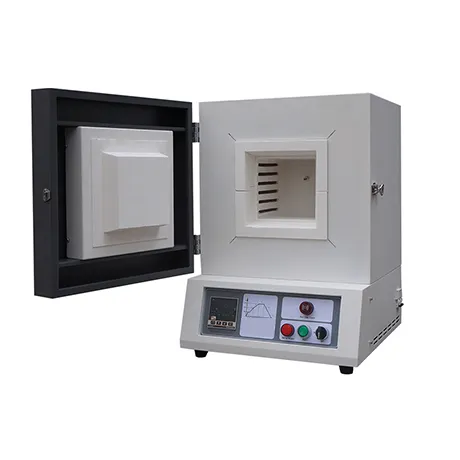

- Side-opening door hinges on the right for convenient operation.
Refractory Material
Features a multi-layer insulation system made from lightweight alumina ceramic fiber and premium insulation board. Asbestos-free, it ensures low heat loss and reduced energy consumption.
Heating System
- High-grade HRE spiral resistance wire heating elements are securely embedded on the chamber walls. Radiant heating inside the cavity ensures energy efficiency and long service life.
- Three-sided heating (left, right, and bottom) promotes excellent temperature uniformity.
- A silicon carbide plate covers the bottom elements, enhancing durability, thermal conductivity, and horizontal load support.
Temperature Control Panel
- PID and SSR-based control system delivers accurate temperature regulation.
- Equipped with an N-type nickel-chromium-silicon thermocouple (0–1300°C range) for reliable temperature measurement and extended lifespan.
- Integrated safety switch automatically cuts power when the furnace door is opened.
Program Controller
- Designed to handle complex thermal processing routines.
- User-friendly interface with flexible programming options.
- Supports up to 30 programmable segments per curve.
- Includes over-temperature and fault alarms with automatic safety shutdown.
|
Model |
TT-MF-1-1000 |
TT-MF-3-1200 |
TT-MF-6-1200 |
TT-MF-8-1200 |
TT-MF-12-1200 |
TT-MF-18-1200 |
TT-MF-30-1200 |
|
Chamber size（W xD xH）mm |
100 x100x100 |
150 x150x150 |
180x230x150 |
200x300x120 |
200 x300x200 |
250 x300x250 |
300 x500x200 |
|
Outer size（W xD xH）mm |
250 x240x350 |
430x465x620 |
460x570x660 |
480 x630x630 |
480 x630x710 |
550x635x780 |
600 x870x735 |
|
Max temperature |
1200℃ |
||||||
|
Working temperature |
1100℃ |
||||||
|
Voltage |
220V/1.2KW (110V is also available) |
220V/2.5KW (110V is also available) |
220V/3KW (110V is also available) |
220V/3KW (110V is also available) |
220V/4KW (110V is also available) |
220V/6KW (110V is also available) |
380V/7.5KW |
|
Heating element |
HRE Alloy resistance wire |
||||||
|
Chamber material |
Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration |
||||||
|
Temp.Precision |
±1℃ |
||||||
|
Termocouple |
N Type termocouple |
||||||
|
Temperature controller |
Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 30 program segments, program temperature rise, program heat preservation, program cooling |
||||||
|
Heating rate |
1-25℃/min free adjustment |
||||||
|
Furnace structure |
Furnace temperature control integrated structure |
||||||
|
Equipment protection |
Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically |
||||||
|
Safety protection |
The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators |
||||||
|
Furnace shell |
High-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder |
||||||
|
Quality certificate |
ISO9001 CE SGS TUV |
||||||
|
Standard packing |
1. Furnace body 1 set 2. Temperature controller 1 set 3. Power cord 3 meters 4. Thermocouple 1 set 5. Manual 1 copy 6. Crucible pliers 1 set 7. High temperature gloves 1 pair |
||||||
|
Optional |
1. Optional exhaust chimney for evacuation of volatile substances 2. Optional corundum crucible, furnace floor, shed board and other kiln furniture 3. Optional material recorder for online recording of temperature curves |
||||||
