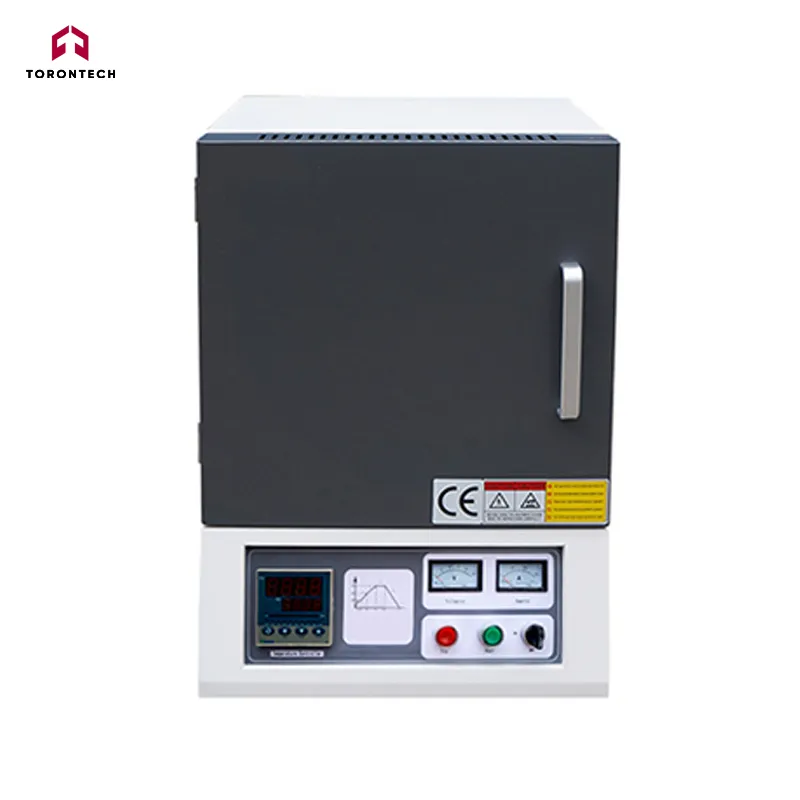

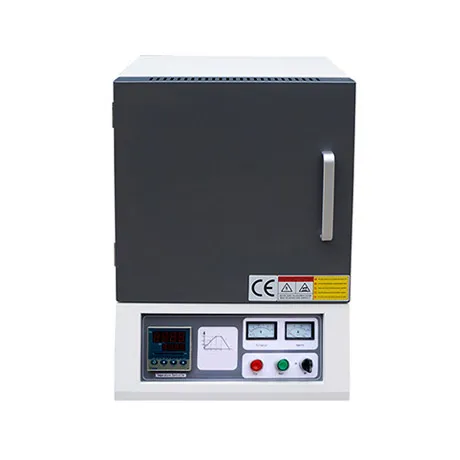

Muffle Furnace TT-MF-3-1800
High-Temperature Box Muffle Furnace TT-MF-3-1800 is designed for high-temperature heat treatment processes such as sintering ceramic materials, nanomaterials, semiconductor materials, powder metallurgy, and other advanced materials. It is widely used in universities, research institutes, manufacturing facilities, as well as in the petrochemical and aerospace industries.

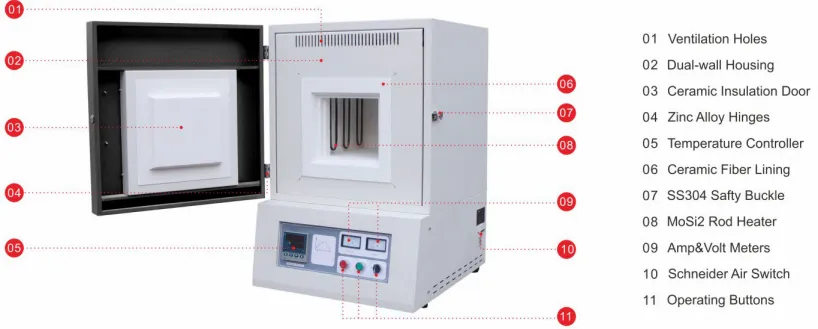

Muffle Furnace TT-MF-3-1800 Features
Furnace Shell
- The shell is constructed from Q235 low-carbon steel with an electrostatically coated, corrosion-resistant surface.
- Its durable double-layer metal frame minimizes external surface temperature.

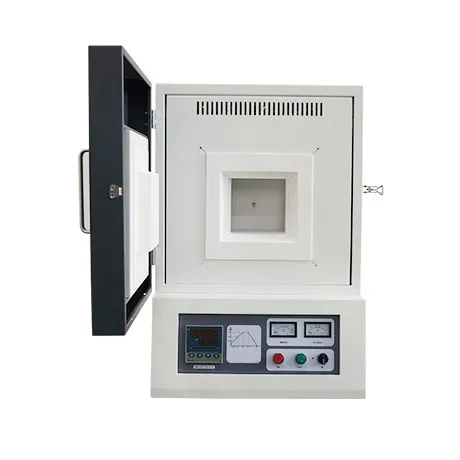

- The side-opening door, hinged on the right, ensures convenient access and operation.
Refractory Material
- Features a multi-layer insulation system composed of lightweight alumina ceramic fiber and premium insulation boards.
- It is asbestos-free, with low heat loss and reduced energy consumption.
Heating System
- Equipped with high-quality MoSi₂ heating elements, securely mounted on both sides of the chamber.
- These elements provide efficient, free-radiation heating, resulting in high energy efficiency and a long lifespan.
- Bilateral heating (left and right) ensures excellent temperature uniformity within the chamber.
- Customizable models available with maximum temperatures of 1750°C or 1800°C, suitable for ceramic sintering applications.
Temperature Control Panel
- Utilizes PID and SCR control for precise temperature regulation.
- Features an international standard B-type platinum-rhodium thermocouple with a range of 50–1800°C and long operational life.
- Includes a safety switch that automatically cuts power when the door is opened.
Program Controller
- Advanced control unit suitable for complex thermal processes
- Intuitive interface with flexible programming options
- Supports up to 30 programmable segments
- Includes over-temperature and fault alarms with automatic safety shutdown
|
Model |
TT-MF-1-1800 |
TT-MF-3-1800 |
TT-MF-8-1800 |
TT-MF-12-1800 |
TT-MF-20-1800 |
TT-MF-36-1800 |
TT-MF-45-1800 |
|
Chamber size （W xD xH）mm |
100 x120x100 |
150 x150x150 |
200x200x200 |
200x300x200 |
250 x320x250 |
300x400x300 |
300 x500x300 |
|
Outer size （W xD xH）mm |
383 x432x660 |
510x560x870 |
600x620x920 |
600x693x920 |
610 x730x970 |
700x840x1500 |
700x940x1500 |
|
Max temperature |
1800℃ |
||||||
|
Working temperature |
1700℃ |
||||||
|
Voltage |
220V/2KW (110V is also available) |
220V/4KW (110V is also available) |
220V/5KW (110V is also available) |
220V/6KW (110V is also available) |
220V/7KW (110V is also available) |
380V/15KW |
380V/18KW |
|
Heating element |
MoSi2 rod |
||||||
|
Chamber material |
Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration |
||||||
|
Temp.Precision |
±1℃ |
||||||
|
Termocouple |
B Type termocouple |
||||||
|
Temperature controller |
Intelligent microcomputer PID temperature control instrument, SCR/SSR control, PID parameter self-tuning function; programmable 32 time periods, program heating, program heat preservation, program cooling |
||||||
|
Heating rate |
1-15℃/min free adjustment |
||||||
|
Furnace structure |
Furnace temperature control integrated structure |
||||||
|
Equipment protection |
Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically |
||||||
|
Safety protection |
The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators |
||||||
|
Quality certificate |
ISO9001 CE SGS TUV |
||||||
|
Optional |
1. Optional exhaust chimney for evacuation of volatile substances 2. Optional corundum crucible, furnace floor, shed board and other kiln furniture 3. Optional material recorder for online recording of temperature curves |
||||||
