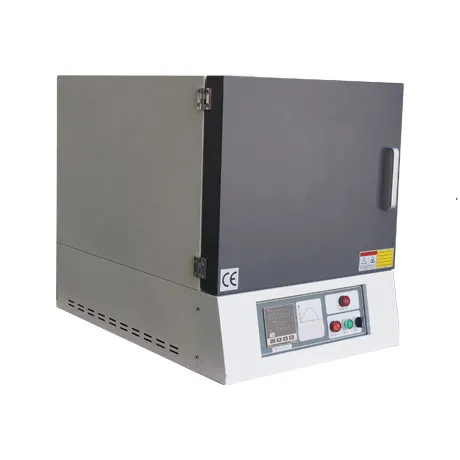

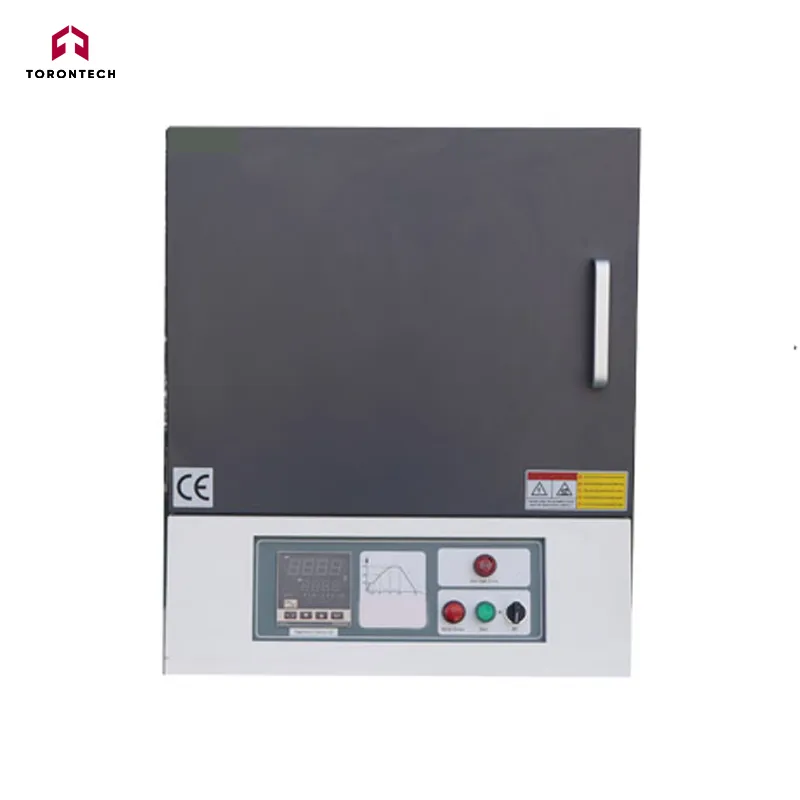

Muffle Furnace TT-MF-30-1200
Electric Muffle Furnace TT-MF-30-1200 is designed for high-temperature heat treatment processes, including sintering and heating of advanced materials such as metals, ceramics, nanomaterials, and semiconductors.
Muffle Furnace TT-MF-30-1200 Features
Furnace Shell
- Built from Q235 low-carbon steel with a corrosion-resistant, electrostatically coated surface.
- Rigid metal frame design ensures durability and helps maintain a low external temperature.
- Features a side-opening door hinged on the right for convenient operation.

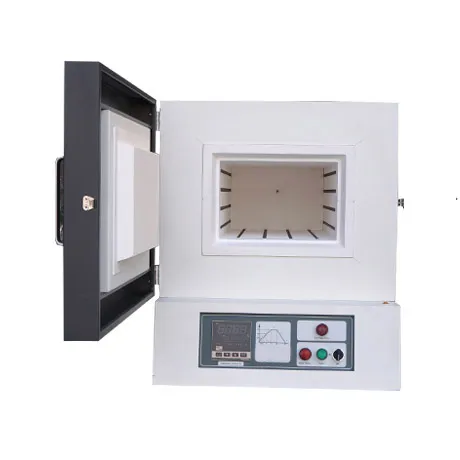

Refractory Material
The furnace is insulated with multiple layers of lightweight alumina ceramic fiber and high-quality backing board. This design is asbestos-free, minimizes heat loss, and supports energy efficiency.
Heating System
- Equipped with premium HRE spiral resistance wire heating elements, securely embedded along the inner surface. Radiant heat distribution ensures energy efficiency and long operational life.
- Heats from three sides—left, right, and bottom—for consistent temperature uniformity throughout the chamber.
- A silicon carbide bottom plate shields the lower heating element, offering strong mechanical support, excellent thermal conductivity, and reliable horizontal load capacity.

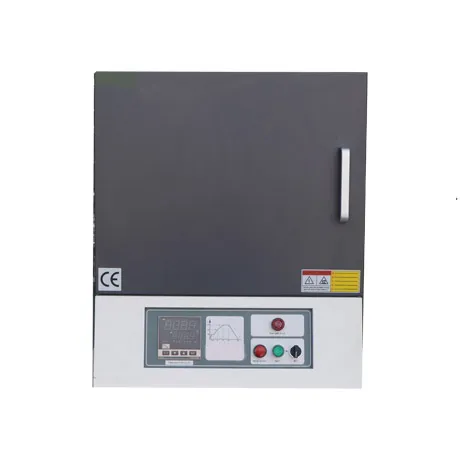

Temperature Control Panel
- Features PID and SSR control modes for accurate and stable temperature regulation.
- Uses an internationally standardized N-type nickel-chromium-silicon thermocouple, with a measurement range of 0–1300°C and extended durability.
- Includes a built-in safety switch that cuts power when the furnace door is opened.
Program Controller
- Advanced control system supports a wide range of thermal process needs.
- Easy-to-use interface allows for flexible and intuitive programming.
- Supports up to 30 programmable segments within a single temperature profile.
- Equipped with over-temperature and fault detection alarms, with automatic safety shutdown.
|
Model |
TT-MF-1-1000 |
TT-MF-3-1200 |
TT-MF-6-1200 |
TT-MF-8-1200 |
TT-MF-12-1200 |
TT-MF-18-1200 |
TT-MF-30-1200 |
|
Chamber size（W xD xH）mm |
100 x100x100 |
150 x150x150 |
180x230x150 |
200x300x120 |
200 x300x200 |
250 x300x250 |
300 x500x200 |
|
Outer size（W xD xH）mm |
250 x240x350 |
430x465x620 |
460x570x660 |
480 x630x630 |
480 x630x710 |
550x635x780 |
600 x870x735 |
|
Max temperature |
1200℃ |
||||||
|
Working temperature |
1100℃ |
||||||
|
Voltage |
220V/1.2KW (110V is also available) |
220V/2.5KW (110V is also available) |
220V/3KW (110V is also available) |
220V/3KW< (110V is also available)/p> |
220V/4KW (110V is also available) |
220V/6KW (110V is also available) |
380V/7.5KW |
|
Heating element |
HRE Alloy resistance wire |
||||||
|
Chamber material |
Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration |
||||||
|
Temp.Precision |
±1℃ |
||||||
|
Termocouple |
N Type termocouple |
||||||
|
Temperature controller |
Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 30 program segments, program temperature rise, program heat preservation, program cooling |
||||||
|
Heating rate |
1-25℃/min free adjustment |
||||||
|
Furnace structure |
Furnace temperature control integrated structure |
||||||
|
Equipment protection |
Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically |
||||||
|
Safety protection |
The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators |
||||||
|
Furnace shell |
High-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder |
||||||
|
Quality certificate |
ISO9001 CE SGS TUV |
||||||
|
Standard packing |
1. Furnace body 1 set 2. Temperature controller 1 set 3. Power cord 3 meters 4. Thermocouple 1 set 5. Manual 1 copy 6. Crucible pliers 1 set 7. High temperature gloves 1 pair |
||||||
|
Optional |
1. Optional exhaust chimney for evacuation of volatile substances 2. Optional corundum crucible, furnace floor, shed board and other kiln furniture 3. Optional material recorder for online recording of temperature curves |
||||||
