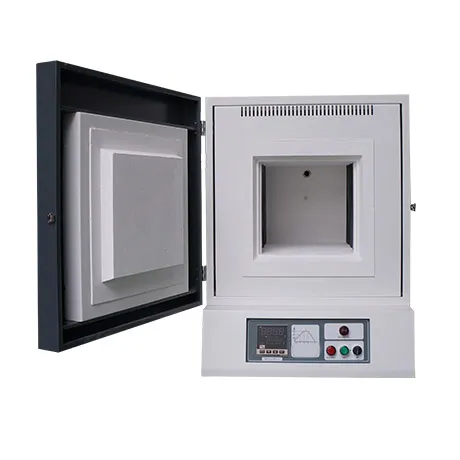

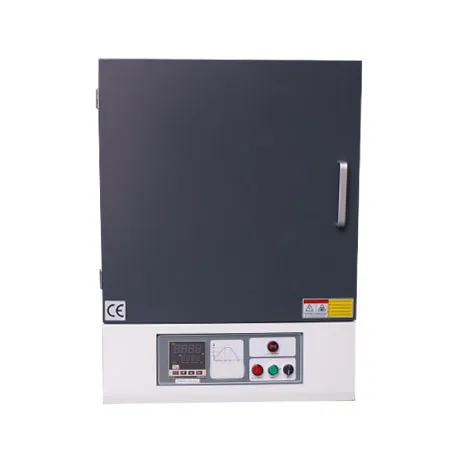

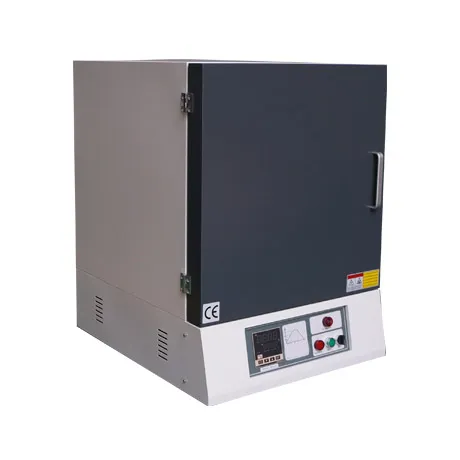

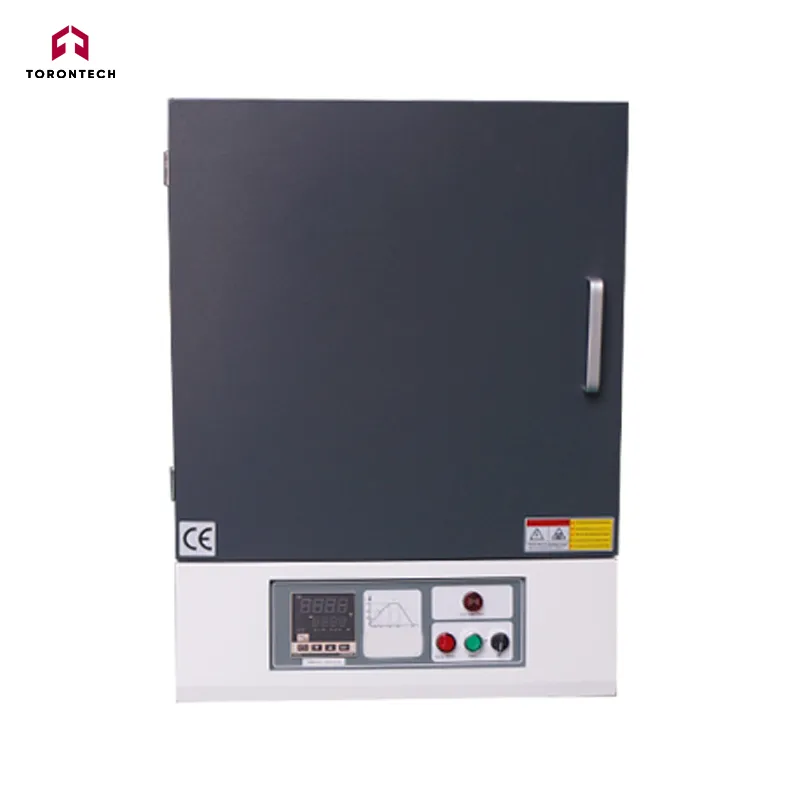

Muffle Furnace TT-MF-36-1400
Laboratory Muffle Furnace TT-MF-36-1400 is designed for high-temperature heat treatment processes such as sintering advanced materials, including metals, ceramics, nanomaterials, and semiconductors.

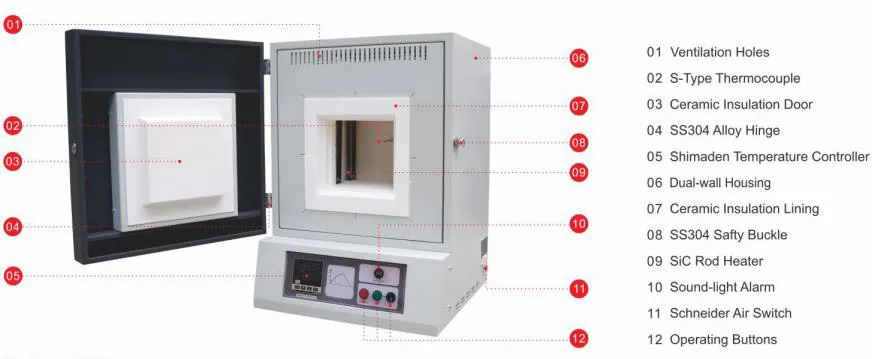

Muffle Furnace TT-MF-36-1400 Features
Furnace Shell
- Constructed from Q235 low-carbon steel, the shell features a corrosion-resistant, electrostatically coated surface.
- Its durable double-layer metal frame helps maintain a low external temperature.
- The side-opening door swings to the right, offering easy and safe access.
Refractory Material
- The furnace uses a multi-layer insulation system made of lightweight alumina ceramic fiber and high-quality insulation boards.
- Free from asbestos, this design ensures minimal heat loss and reduced energy consumption.
Heating System
- Premium silicon carbide (SiC) heating elements are securely mounted on both sides of the chamber, allowing efficient radiant heat transfer for energy savings and consistent performance.
- Dual-side heating ensures even temperature distribution throughout the chamber.
- A silicon carbide bottom plate shields the lower heating element, offering strong load-bearing capacity, excellent thermal conductivity, and mechanical strength.
Temperature Control Panel
- Features PID and SSR control for accurate temperature regulation.
- Equipped with an S-type platinum-rhodium thermocouple with a wide measurement range of 0–1600°C and extended lifespan.
- A built-in safety switch cuts power when the door is opened.
Program Controller
- Designed to support advanced thermal processing needs
- Easy-to-use interface with flexible programming options
- Supports up to 30 segments in a single heating profile
- Includes over-temperature and system fault alarms with automatic safety shutdown
|
Model |
TT-MF-1.7-1400 |
TT-MF-3-1400 |
TT-MF-8-1400 |
TT-MF-12-1400 |
TT-MF-18-1400 |
TT-MF-36-1400 |
TT-MF-45-1400 |
|
Chamber size （W xD xH）mm |
120 x120x120 |
150 x150x150 |
200x200x200 |
200x300x200 |
250 x300x250 |
300x400x300 |
300 x500x300 |
|
Outer size（W xD xH）mm |
460 x500x720 |
490x530x750 |
575x610x825 |
590 x680x835 |
610 x700x860 |
650x770x900 |
975 x930x1200 |
|
Max temperature |
1400℃ |
||||||
|
Working temperature |
1350℃ |
||||||
|
Voltage |
220V/2.5KW (110V is also available) |
220V/3KW (110V is also available) |
220V/5KW (110V is also available) |
220V/5KW (110V is also available) |
220V/6KW (110V is also available) |
380V/12KW |
380V/14KW |
|
Heating element |
silicon carbide rod (SIC) |
||||||
|
Chamber material |
Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration |
||||||
|
Temp.Precision |
±1℃ |
||||||
|
Termocouple |
S Type termocouple |
||||||
|
Temperature controller |
Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 30 program segments, program temperature rise, program heat preservation, program cooling |
||||||
|
Heating rate |
1-30℃/min free adjustment |
||||||
|
Furnace structure |
Furnace temperature control integrated structure |
||||||
|
Equipment protection |
Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically |
||||||
|
Safety protection |
The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators |
||||||
|
Quality certificate |
ISO9001 CE SGS TUV |
||||||
|
Optional |
1. Optional exhaust chimney for evacuation of volatile substances 2. Optional corundum crucible, furnace floor, shed board and other kiln furniture 3. Optional material recorder for online recording of temperature curves |
||||||
