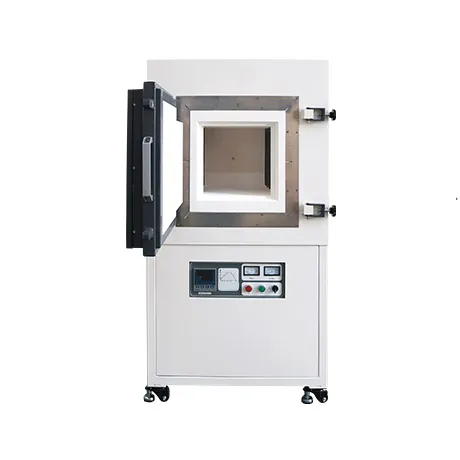

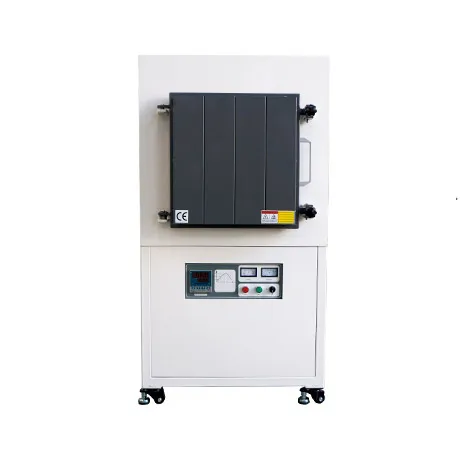

Muffle Furnace TT-MF-36-1700

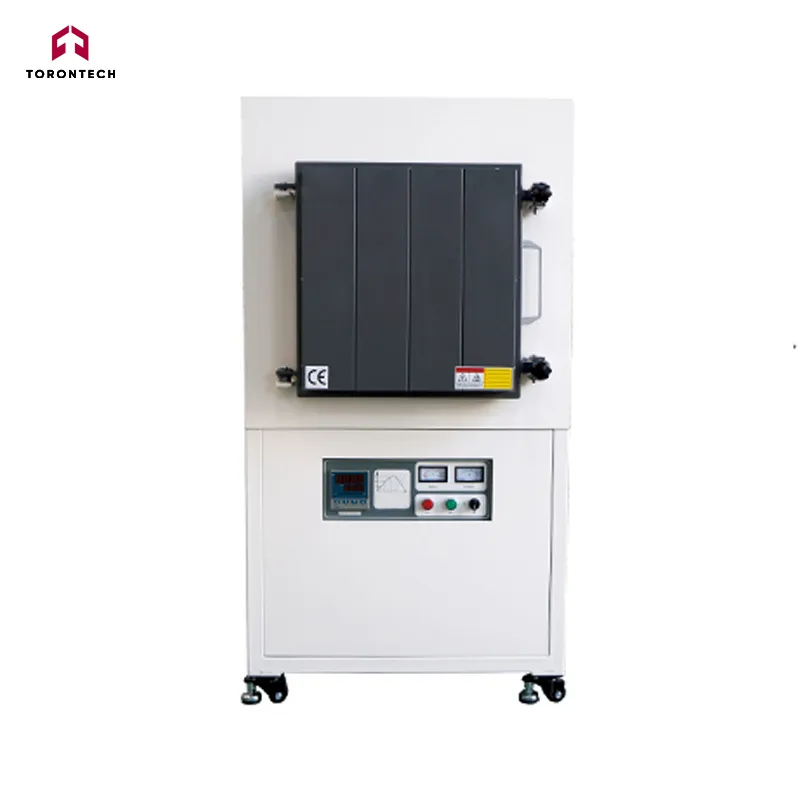

TT-MF-36-1700 Box Muffle Furnace is designed for high-temperature heat treatment processes such as sintering ceramic materials, nanomaterials, semiconductors, powder metallurgy, and other advanced materials. It is widely used in universities, research institutions, industrial facilities, the petrochemical sector, and the aerospace industry.
Muffle Furnace TT-MF-36-1700 Features
Furnace Shell
- Constructed from Q235 low-carbon steel with a corrosion-resistant, electrostatically coated surface.
- The durable double-layer metal frame helps minimize the external surface temperature.
- Features a side-opening door that opens to the right for convenient operation.
Refractory Material
Designed with multi-layer insulation, including lightweight alumina ceramic fiber and premium insulation board backing.
Asbestos-free, with low heat loss and reduced energy consumption.
Heating System

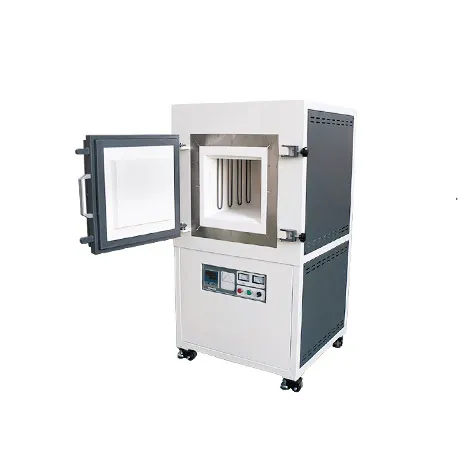

- Equipped with high-quality MoSi₂ heating elements, securely installed on both sides of the chamber for efficient and consistent heat distribution.
- Dual-side heating ensures excellent temperature uniformity.
- Custom high-temperature models available, with maximum temperatures of 1750°C or 1800°C—ideal for ceramic material sintering.
- Energy-efficient design with long service life.
Temperature Control Panel
- Features PID and SCR control for precise temperature regulation.
- Uses a high-grade B-type platinum-rhodium thermocouple (temperature range: 50–1800°C) for accuracy and durability.
- Built-in safety switch cuts power when the furnace door is opened.
Program Controller
- Advanced controller supports complex thermal processing.
- Intuitive interface with flexible programming options.
- Supports up to 32 programmable segments.
- Includes over-temperature and fault alarms for automatic safety protection.
|
Model |
TT-MF-1-1700 |
TT-MF-3-1700 |
TT-MF-8-1700 |
TT-MF-12-1700 |
TT-MF-20-1700 |
TT-MF-36-1700 |
TT-MF-45-1700 |
|
Chamber size （W xD xH）mm |
100 x120x100 |
150 x150x150 |
200x200x200 |
200x300x200 |
250 x320x250 |
300x400x300 |
300 x500x300 |
|
Outer size （W xD xH）mm |
383 x432x660 |
510x560x870 |
600x620x920 |
600x693x920 |
610 x730x970 |
700x840x1500 |
700x940x1500 |
|
Max temperature |
1700℃ |
||||||
|
Working temperature |
1600℃ |
||||||
|
Voltage |
220V/2KW (110V is also available) |
220V/4KW (110V is also available) |
220V/5KW (110V is also available) |
220V/6KW (110V is also available) |
220V/7KW (110V is also available) |
380V/15KW |
380V/18KW |
|
Heating element |
MoSi2 rod |
||||||
|
Chamber material |
Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration |
||||||
|
Temp.Precision |
±1℃ |
||||||
|
Termocouple |
B Type termocouple |
||||||
|
Temperature controller |
Intelligent microcomputer PID temperature control instrument, SCR/SSR control, PID parameter self-tuning function; programmable 32 time periods, program heating, program heat preservation, program cooling |
||||||
|
Heating rate |
1-15℃/min free adjustment |
||||||
|
Furnace structure |
Furnace temperature control integrated structure |
||||||
|
Equipment protection |
Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically |
||||||
|
Safety protection |
The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators |
||||||
|
Quality certificate |
ISO9001 CE SGS TUV |
||||||
|
Optional |
1. Optional exhaust chimney for evacuation of volatile substances 2. Optional corundum crucible, furnace floor, shed board and other kiln furniture 3. Optional material recorder for online recording of temperature curves |
||||||
