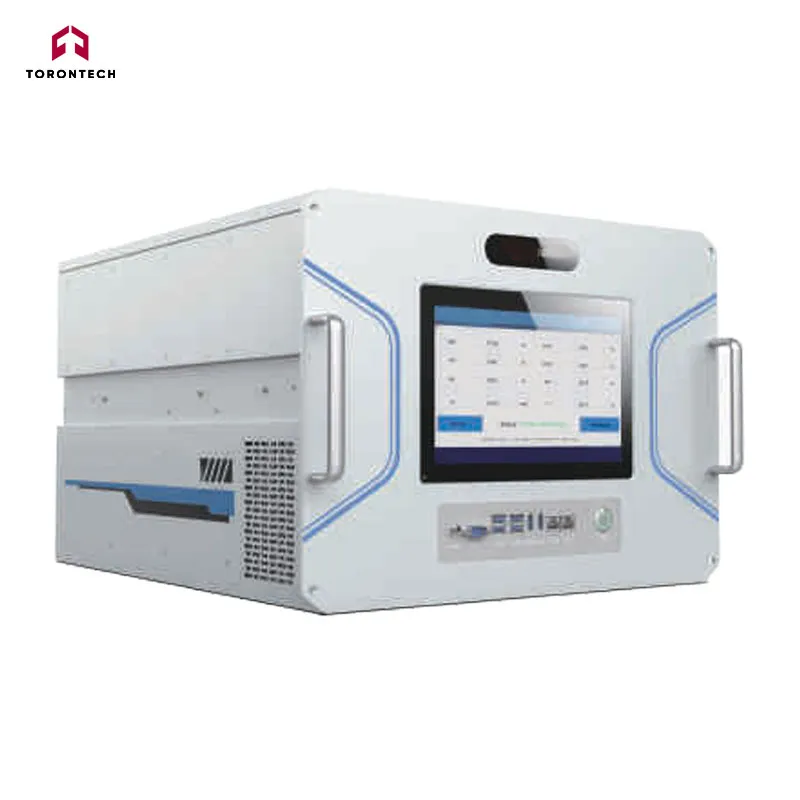

Multi-Gas Analyzer based on Raman Spectroscopy
Multi-Gas Analyzer ToronMGA utilizes Raman spectroscopy to detect and analyze all gases except noble gases. It provides simultaneous, real-time monitoring of multiple gases across various applications, including:
-
Petrochemicals: CH₄, C₂H₆, C₃H₈, C₂H₄, and more
-
Fluorine compounds: F₂, BF₃, PF₅, Cl₂, HCl, HF, etc.
-
Fermentation: CO, H₂O, H₂S, N₂, O₂, CH₄, and others
-
Metallurgy: N₂, H₂, O₂, CO₂, CO, and similar gases
-
Gas isotopologues: H₂, D₂, T₂, HD, HT, DT, and more
This analyzer delivers accurate, efficient gas detection for diverse industrial and scientific needs.
Typical Spectra

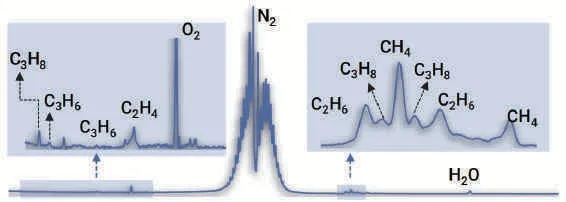

Gas Mixture Analysis
| Component | Concentration (ppm) |
|---|---|
| CH₄ | 50 |
| C₂H₆ | 30 |
| C₃H₈ | 40 |
| C₂H₄ | 15 |
| C₃H₆ | 20 |

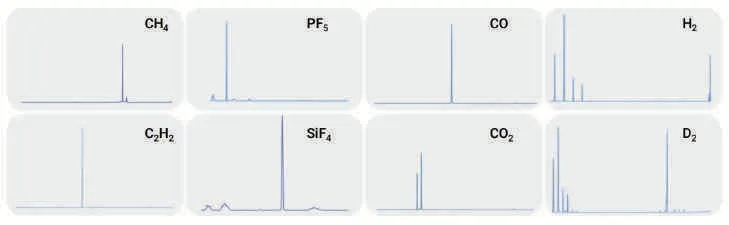

Standard Gas Spectra
Applications

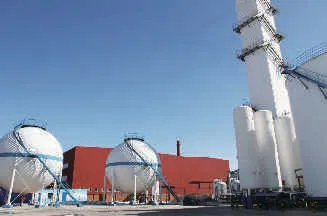

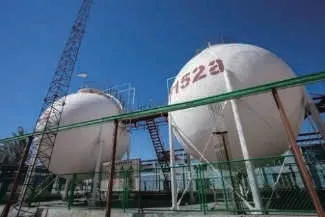

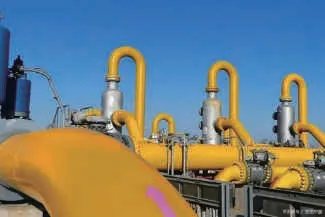

Natural gas industry
Fluorine chemical industry
Electronic special gas

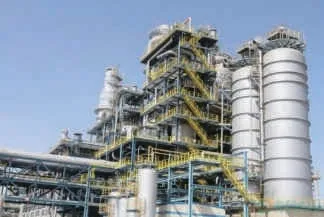

Coal chemical industry

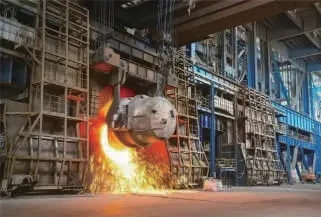

Metallurgical industry

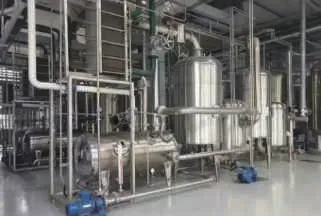

Pharmaceutical chemical industry
Key Features of the ToronMGA Multi-Gas Analyzer
-
Multi-Component Analysis: Simultaneous, real-time monitoring of multiple gases in a single measurement.
-
Universal Detection: Capable of identifying over 500 gas types—excluding noble gases—for broad application coverage.
-
Pressure-Independent Operation: Accurate quantification without requiring sample gas pressure control.
-
Fast Response Time: Delivers results in seconds per detection cycle.
-
Wide Dynamic Range: Detects concentrations as low as ppm levels and measures up to 100% gas composition.
| Sample Gas Requirements | |
|---|---|
| Gas Pressure | 1 kPa ~ 1 MPa |
| Gas Temperature | -50 ~ 40 °C |
| Gas Flow Rate | 0.5 ~ 15 L/min |
| Installation Conditions | |

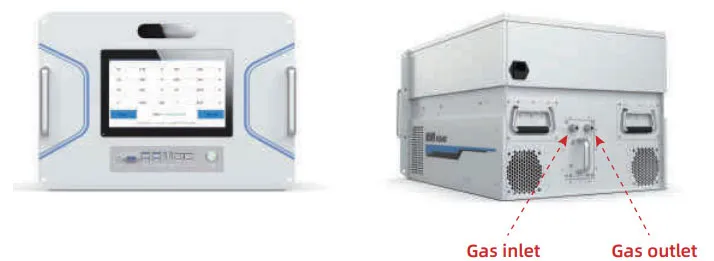

| Sample Gas Interface | 6 mm standard tube fitting (3 mm, 1/8'', and 1/4'' are optional) |
| Voltage | 100~240 VAC, 50~60 Hz |
| Operating Temperature | 0 ~ 35 °C |
| Relative Humidity | 0 ~ 90%RH |
| Dimensions | 445 mm (Width) × 350 mm (Height) × 600 mm (Depth) |
| Weight | 40 kg |
| Data Communication | |
| Output Interface | USB2.0, RS232/RS485 DB9, RJ45 |
| Input Interface | Temperature / pressure sensor, 12 V power supply, RS485 |
