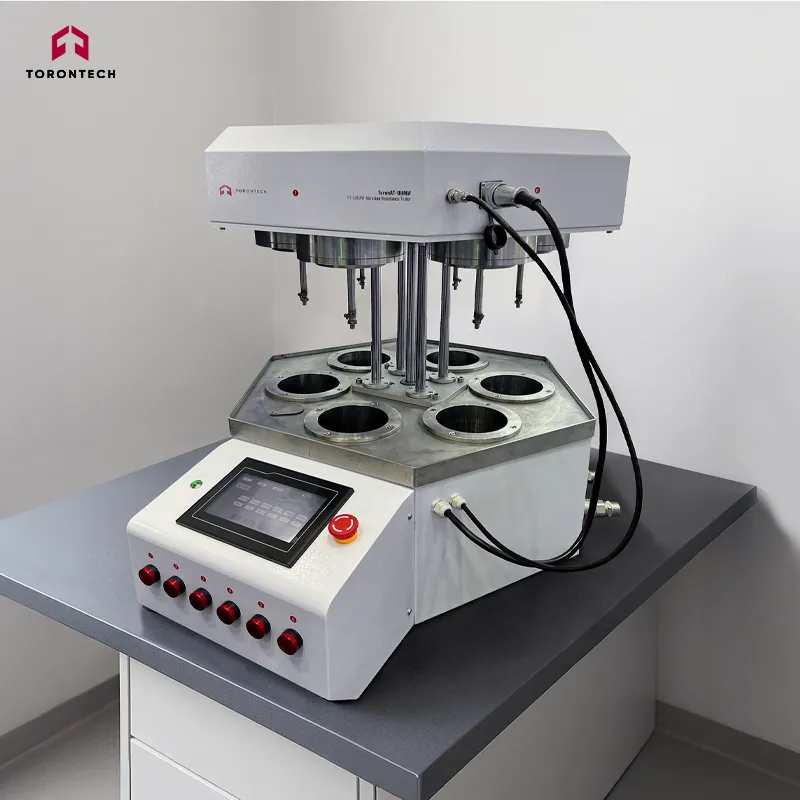

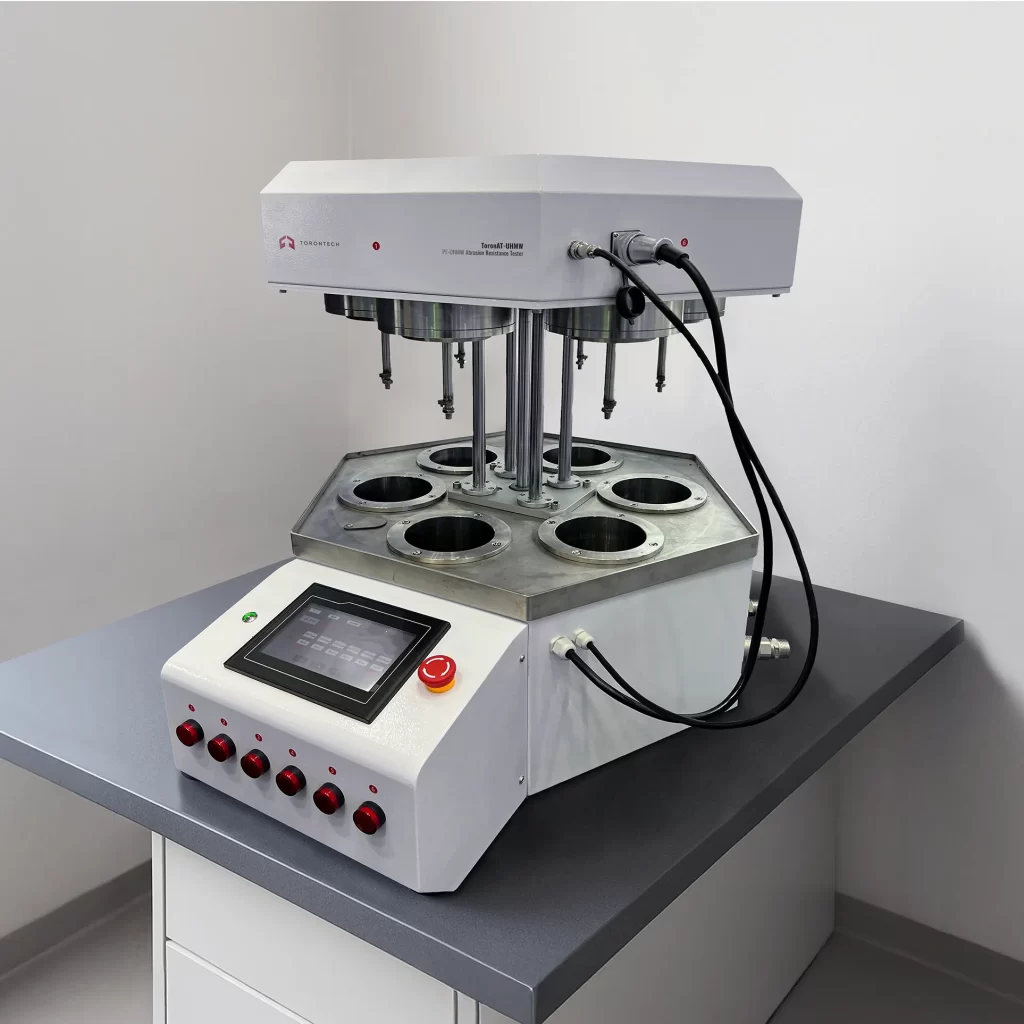

PE-UHMW Abrasion Resistance Tester - ToronAT-UHMW – ISO 15527 Compliant
PE-UHMW Abrasion Resistance Tester - ToronAT-UHMW – ISO 15527 Compliant is designed to measure the wear performance of ultra-high molecular weight polyethylene (PE-UHMW) and high-density polyethylene (PE-HD). It is an essential testing tool for quality control during factory inspections, incoming materials evaluation, and product comparison in resin-based industries.
Controlled by a microcomputer, the device accurately displays real-time rotation speed and temperature on its panel. It also allows countdown settings directly on the interface. This control system ensures reliable readings with high precision and no delay in response.
Standards
- ISO 15527
- SH/T 1818
- TCSTM 00173
- DB51/T 2450
PE-UHMW Abrasion Resistance Tester Features
Consistent Rotation Across All Six Stations
PE-UHMW Abrasion Resistance Tester - ToronAT-UHMW is equipped with six stations, allowing simultaneous testing on six specimens. Each station is driven by a synchronous belt connected to a single spindle motor, ensuring uniform rotation speed across all stations. This setup enhances result consistency and comparability.
Automatic Lifting System for High Efficiency and Safety
The lifting mechanism uses a single capacitor motor and chain structure to raise and lower the rotating specimen system. It can stop at any point within the travel range, making it easy to observe and access specimens. Dual-limit protection is built in—if the primary limit fails, the secondary limit immediately cuts power for added safety.
Immersed Abrasion Test Cup Design
The test cup lid fits securely into a circular groove to prevent slurry spillage during specimen rotation. Three upper springs press the lid into place, providing a tight, secure seal.
Independent Cooling System
All six test cups sit in a ring-shaped water tank. Slurry temperature is controlled by water cooled through copper tubing connected to an independent refrigeration unit. This setup ensures all cups maintain a consistent temperature with less than 1°C variance.
Rotating Specimen Disk with External Stirring System
Components such as the handle, stirring shaft, test cup lid, test cup, and water tank are made from stainless steel, offering enhanced corrosion resistance and easier maintenance.
Automated Testing with Real-Time Monitoring
The digital control panel allows users to set the test duration (default is a 3-hour countdown). The timer activates automatically when the test begins, and real-time data on slurry temperature and specimen rotation is displayed, streamlining operation and reducing manual effort.
| Model | ToronAT-UHMW |
|---|---|
| Number of instrument test stations | 6 |
| Rate of rotation | 800 to 1400 r/min |
| Rotation control precision | 1% (≥1000 r/min); 10 r/min (＜1000 r/min) |
| Rate of rotation display resolution | 1 r/min |
| Timing accuracy | 1s |
| Timing deviation | 0.1% |
| Temperature display resolution | 0.1 ℃ |
| Temperature control accuracy | ±0.5 ℃ |
| Tank volume | 35 liters |
| Mortar ratio in each test cup | 450g silica sand, 300g water |
| Refrigeration power | 5.1 KW |
| Refrigeration medium | Water |
| Voltage | 220V AC 2Kva (110V is also available) |
| Dimensions (L × W × H) | 1.2 × 0.5 × 1.2 m |
| Weight | 220 kg |
