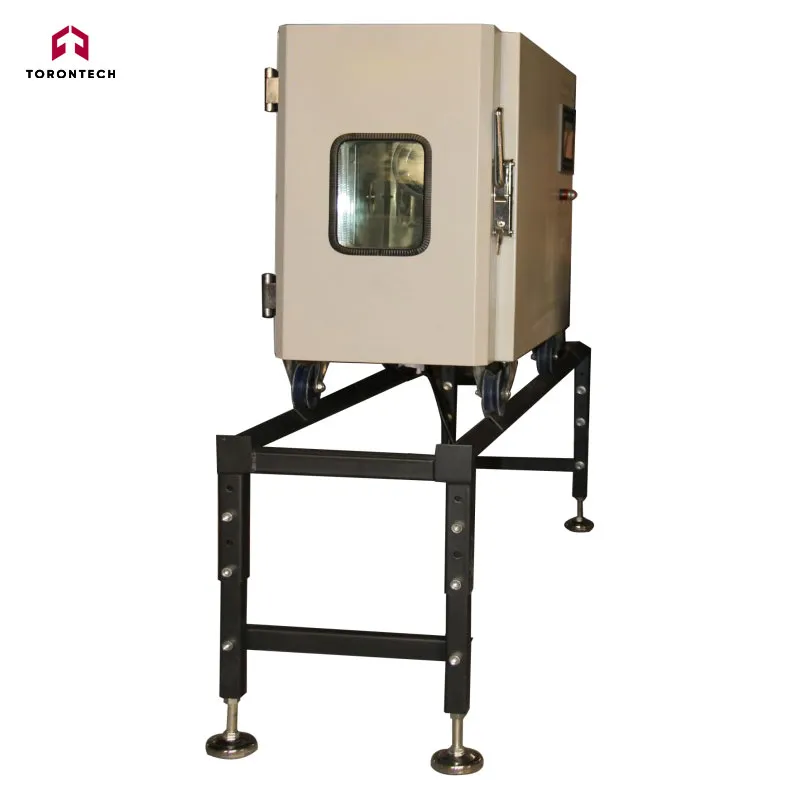

Tensile Test Chamber ToronTTC-300
Tensile Test Chamber ToronTTC-300 is designed to meet precise temperature control requirements for advanced material testing. It features a PID-controlled temperature system, ensuring minimal overshoot and high accuracy. A centrifugal fan enhances airflow within the chamber, maintaining uniform temperature distribution. This high-performance testing equipment is ideal for universities, research institutions, and industrial material testing facilities.
The chamber integrates seamlessly with testing machines without requiring modifications. It is equipped with a track system, allowing easy repositioning when conducting room-temperature tests. This user-friendly design enables efficient testing of metals and nonmetals under various temperature conditions, including tensile, compression, bending, and shear tests. It is well-suited for industries such as plastics and rubber, ensuring reliable performance across diverse applications.
Standards
-
Metallic materials – Tensile testing at elevated temperatures
-
Other relevant industry standards for high- and low-temperature testing chambers and tensile testing of metallic materials
How Can We Help You?
Contact our sales team for a quotation.
Key Features
-
Efficient Heating System – Equipped with a finned stainless steel electric heater for reliable temperature control.
-
Durable Construction – The exterior features an electrostatic spray coating, while the interior is made of mirror-finish stainless steel. The front door includes an observation window with a demisting function and internal lighting for clear visibility during testing.
-
Precision Temperature Control – Utilizes a PID control system with a display accuracy of 0.1°C, ensuring stable and precise temperature regulation.
-
Optimized Airflow – A centrifugal fan ensures forced air circulation, maintaining uniform temperature distribution to meet test standard requirements.
-
User-Friendly Design – Built with a guide rail system for effortless movement of the test chamber in and out of the testing machine’s test space.
-
Sealed Access Points – Features U-shaped openings on both the top and bottom, equipped with sealing components for smooth integration with the testing machine.
| Temperature control range | Room temperature +10～300℃ |
|---|---|
| Temperature control accuracy | ≤±1℃ |
| Instrument display accuracy | 0.1℃ |
| Temperature uniformity | ≤±2℃ (Axial center 200mm) |
| Heating speed | 1～3℃/min (Free load) |
| Internal Dimensions | 250×530×260mm (width × height × depth) |
| Chamber External Dimensions | 370×670×880mm (width × height × depth) |
| Tensile rod hole size | Φ50mm |
| Dimensions reference | Please reference the dimensions picture |
| Voltage | AC220V, 50HZ (110V is also available) |
| Power | 1.5kW |
| Operating environment temperature | 5℃～30℃ |
Configuration
-
Observation Window – Hollow electric heating glass for clear visibility.
-
Temperature Control – PID automatic temperature regulation for precise and stable operation.
-
Exterior Material – Cold-rolled steel with an electrostatic spray coating or stainless steel.
-
Interior Material – Mirror-finish stainless steel for durability and easy maintenance.
-
Insulation – Flame-retardant insulation material for enhanced safety and efficiency.
-
Illumination – Single internal lamp positioned for optimal visibility, controlled externally.
-
Air Regulation System:
-
Temperature Control – PID automatic regulation.
-
Air Circulation – Centrifugal fan ensures uniform airflow.
-
Heating Method – Stainless steel electric heater with forced ventilation and internal circulation for precise temperature adjustments.
-
Temperature Sensor – Platinum resistance sensor for accurate measurement.
-
-
Sealed Construction – Silicone strip seals on the door and chamber body provide excellent insulation and prevent leakage.
-
Easy Mobility – Guide rail system enables smooth, linear movement for effortless installation and removal.
-
Safety Protection Features:
-
Power overload and short-circuit protection.
-
Ground protection.
-
Leakage protection.
-
Over-temperature safety mechanism.
-

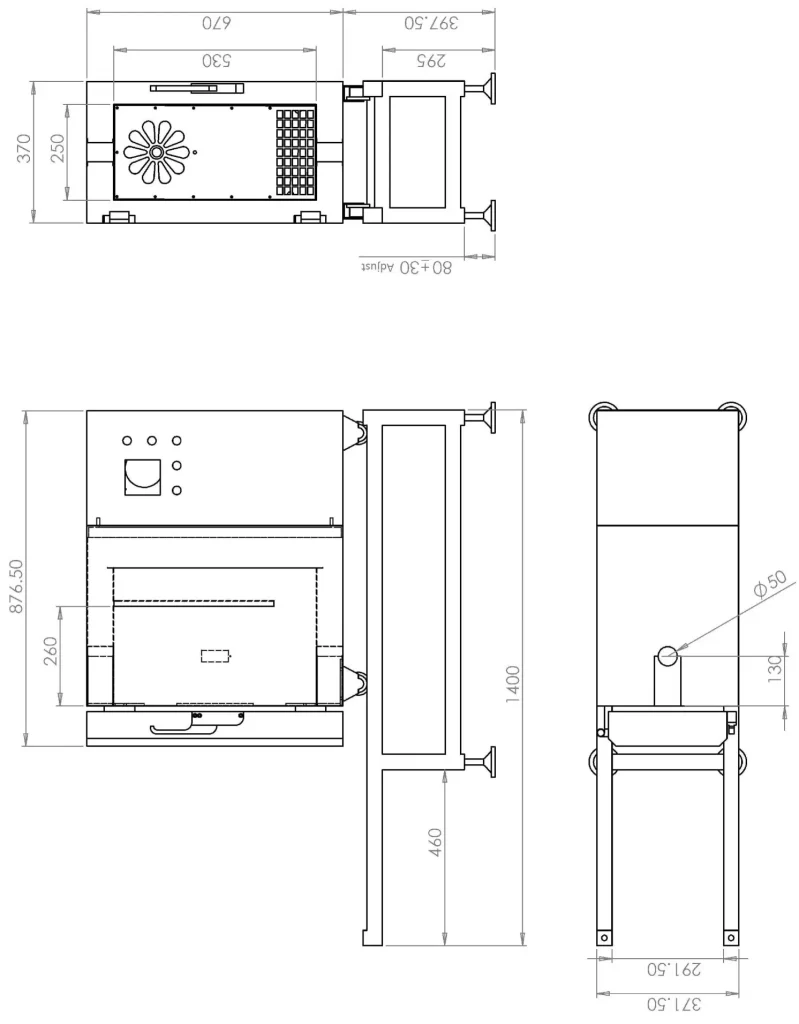

Dimensions
