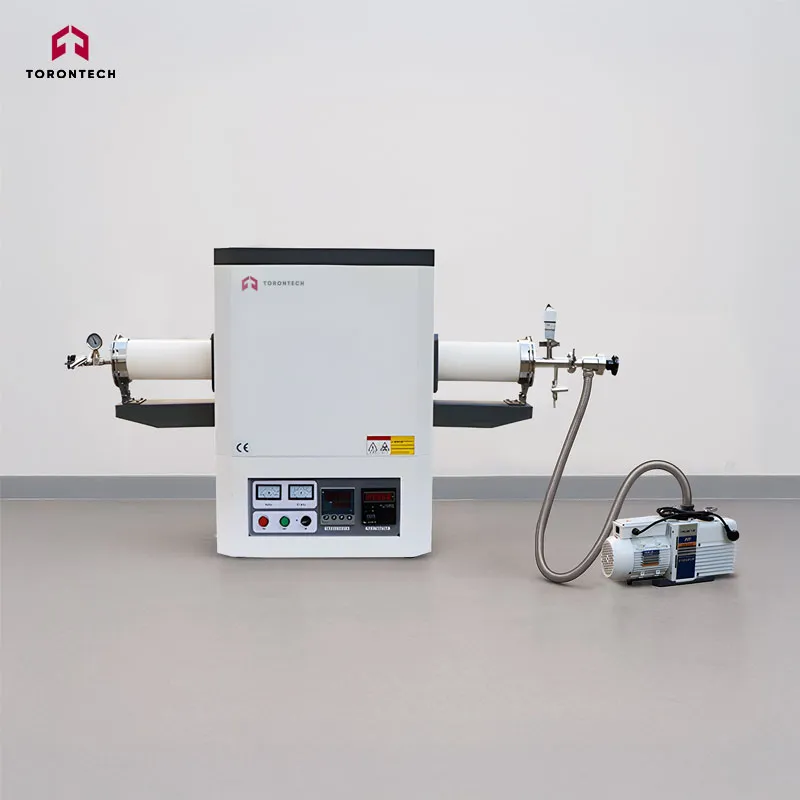

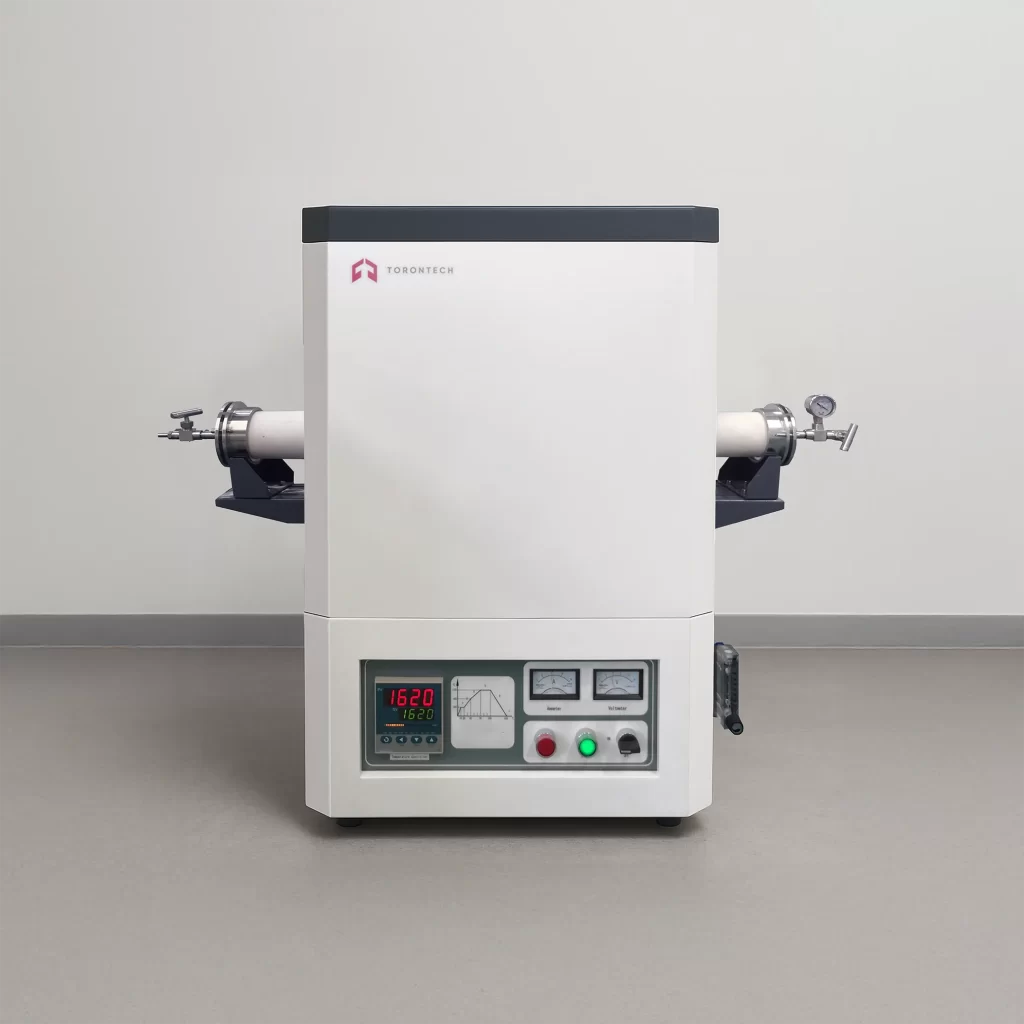

Tube Furnace – Single Zone TTTF-17-60
Tube Furnace – Single Zone TTTF-17-60 is designed for high-temperature heat treatment and sintering of metal, ceramic, nano, and semiconductor materials, as well as powder metallurgy and other advanced materials. It is widely used in universities, research labs, manufacturing facilities, the petrochemical sector, and the aerospace industry.

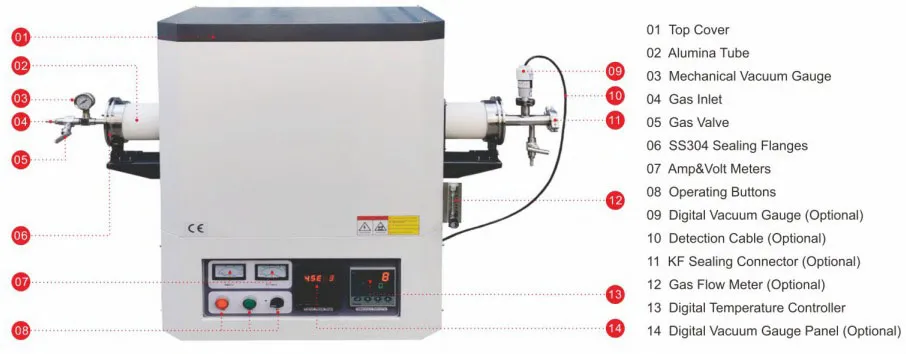

Tube Furnace – Single Zone TTTF-17-60 Features

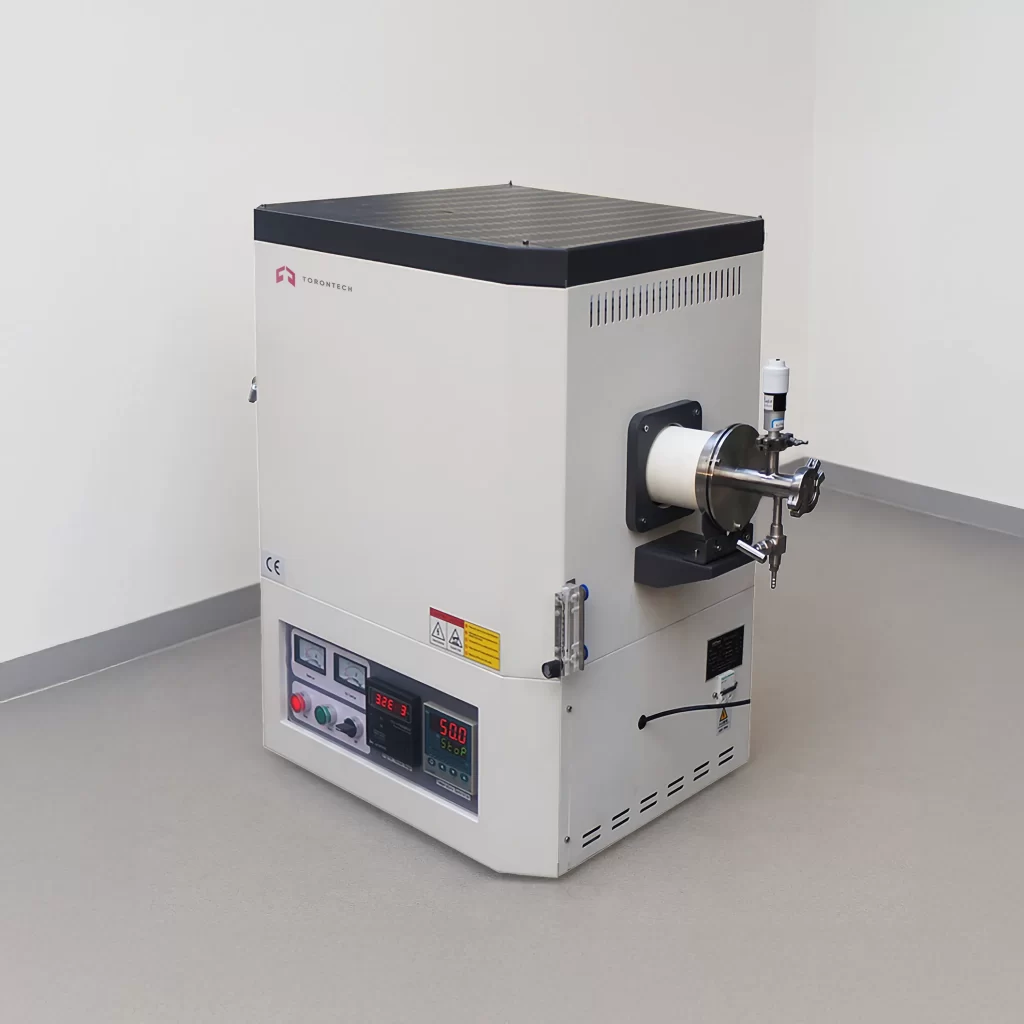

Furnace Shell
Constructed from Q235 low-carbon steel, the shell features an electrostatic-resistant, corrosion-resistant finish.
The durable double-layer metal frame integrates a heat-insulating fan structure, keeping the outer surface cool.
Horizontal orientation allows for easy operation.
Refractory Material
Designed with multi-layer insulation made from lightweight alumina ceramic fiber and high-performance insulation boards.
Free from asbestos, this design minimizes heat loss and reduces energy consumption.
Heating System
Premium MoSi₂ heating elements are securely mounted on both sides of the chamber, delivering efficient radiant heating.
Dual-sided heating (left and right) ensures excellent temperature uniformity throughout the furnace.
Engineered for energy efficiency and extended operational life.
Temperature Control Panel
Utilizes PID and SSR control for accurate temperature management.
Features an internationally standardized Type B Ni-Cr silicon thermocouple with a range of 0–1800°C and long service life.
Includes a heating indicator and an over-temperature alarm buzzer for enhanced safety.
Program Controller
Equipped with an advanced controller that supports complex thermal processing.
User-friendly interface with flexible programming capabilities.
Supports up to 32 programmable segments.
Built-in alarms for over-temperature and system faults with automatic safety shutoff.

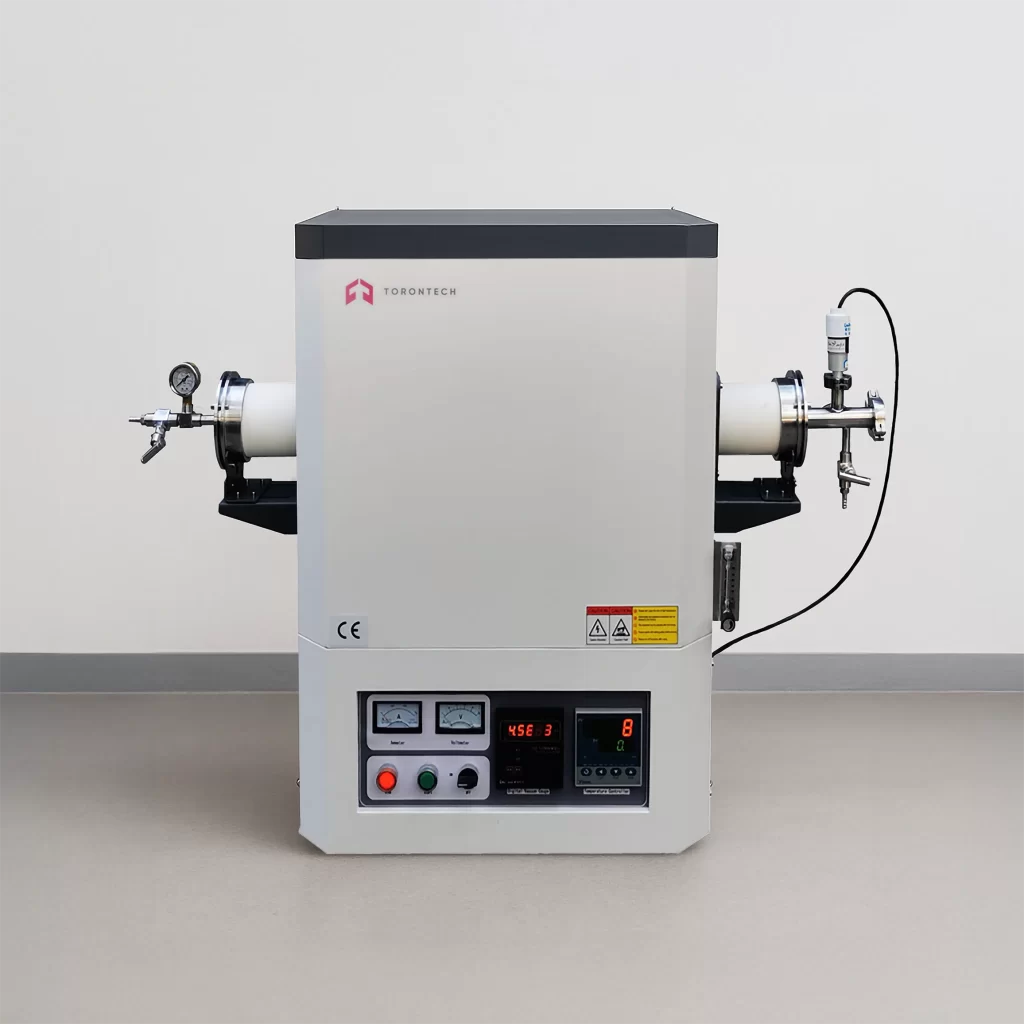

Vacuum & Atmosphere Compatibility
Includes a 304 stainless steel sealing flange for creating a vacuum or controlled atmosphere inside the furnace tube.
Compatible with high-quality quartz glass tubes; optional metal or corundum tubes are available to suit various applications.
|
Model |
TTTF-40-17 |
TTTF-60-17 |
TTTF-80-17 |
TTTF-100-17 |
|
Tube size |
Φ40 x 900mm |
Φ60 x 900mm |
Φ80 x 900mm |
Φ100 x 900mm |
|
Max Temperature |
1700℃ |
|||
|
Working temperature |
1600℃ |
|||
|
Heating zone size |
300mm |
|||
|
Voltage |
220V/3KW |
220V/4KW |
220V/5KW |
220V/5KW |
|
Heating element |
MoSi2 |
|||
|
Furnace material |
Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration |
|||
|
Furnace tube material |
High purity corundum tube |
|||
|
Temperature control accuracy |
±1℃ |
|||
|
Temperature measuring element |
B-type national standard platinum rhodium thermocouple |
|||
|
Temperature control instrument |
Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 4 groups of 8 program segments, program temperature rise, program heat preservation, program cooling |
|||
|
Heating rate |
1-15℃/min free adjustment |
|||
|
Furnace structure |
Furnace temperature control integrated structure; double-layer shell, air circulation and heat insulation |
|||
|
Sealing performance |
Both ends of the furnace tube are equipped with stainless steel metal flanges, matched with high-temperature PTFE gaskets, which can work under vacuum with a vacuum degree of ≤5pa (rotary vane vacuum pump) |
|||
|
atmosphere performance |
There are air inlets and outlets at both ends of the flange. The pressure gauge is installed on the metal flange. The precision needle valve can adjust the air intake and output, and can be fed with protective gases such as nitrogen, argon, and hydrogen. |
|||
|
equipment protection |
Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically |
|||
|
safety protection |
The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators |
|||
|
shell |
High-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder |
|||
|
Quality Certification |
ISO9001 CE SGS TUV (By Request) |
|||
|
The standard configuration |
1. 1 furnace body 2. 1 temperature controller 3. Power cord 3 meters 4. 1 thermocouple 5. 1 manual 6. One furnace hook 7. One pair of high temperature gloves 8. Two pipe plugs 9. One set of sealing flange |
|||
|

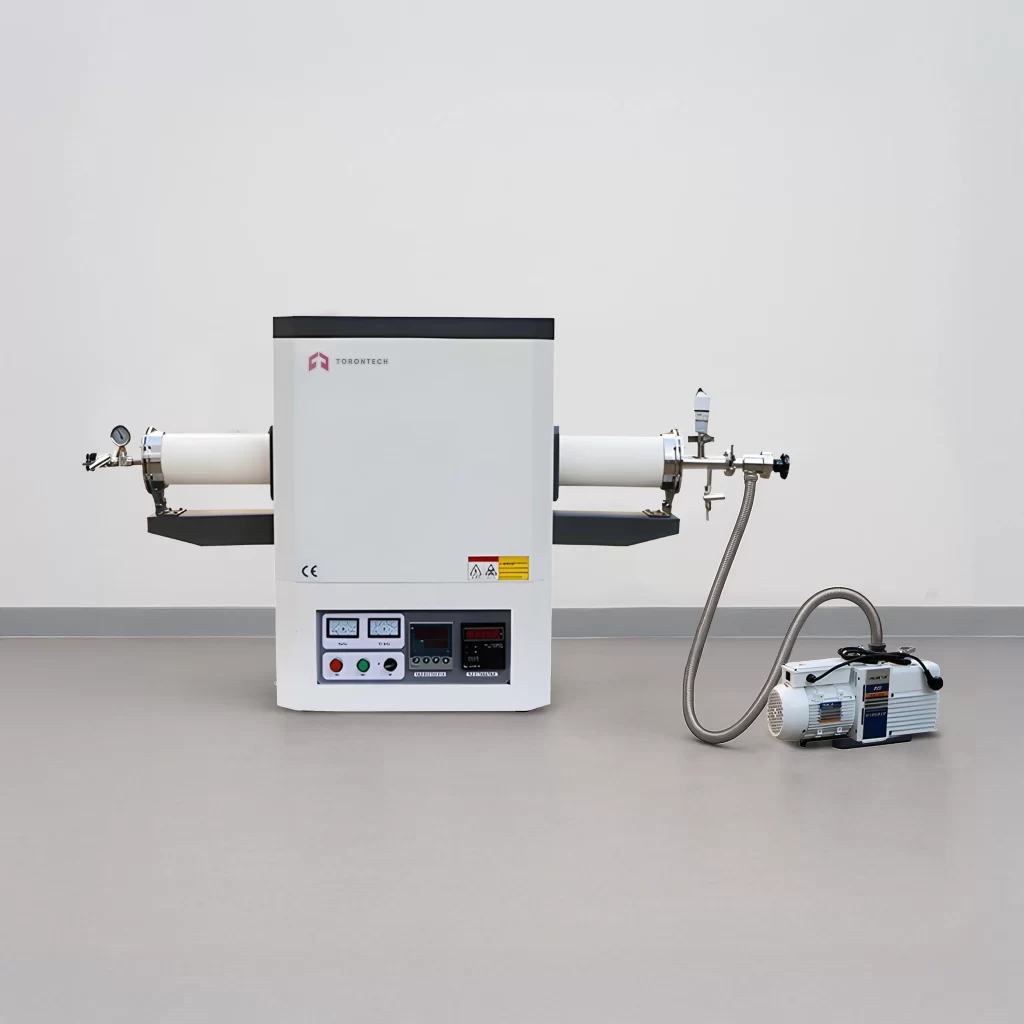

Optional accessories |
1. Optional rotary vane vacuum pump (vacuum degree ≤ 5pa) 2. Optional digital vacuum gauge ((1.0×105-1.0×10-1pa)) 3. Optional float flowmeter (range 60-600ml/min) 4 , optional corundum boat |
|||
