A densitometer for printing is one of the simplest ways to improve print quality and consistency. If you’re relying only on visual checks, you’re missing the precision that modern workflows demand. Color shifts, ink waste, and uneven tone can quietly drain your bottom line.
This article breaks down exactly how densitometers work, why they matter, and how to choose the right one for your pressroom.
What Is a Densitometer for Printing?
A densitometer is a measurement device used to check how much light reflects from or passes through printed materials. It doesn’t see color the way a spectrophotometer does. Instead, it reads optical density, or how dark an area appears based on ink thickness and reflectance.
There are two main types:
- Reflection densitometers: Measure ink density on paper surfaces
- Transmission densitometers: Measure light passing through transparent film
When you place the device on a printed sheet, it evaluates how much light bounces back. That data helps you adjust ink levels for better balance and repeatability.
Densitometers are often used in CMYK printing. They measure values like:
- Solid ink density (SID)
- Dot gain (also called TVI or tone value increase)
- Print contrast and gray balance
In short, they help replace visual guesswork with hard numbers you can trust.
Types of Densitometers
Understanding the types of densitometers helps you choose the right tool for your workflow. Each serves a different stage of the printing process and measures light in a specific way.
1. Reflection Densitometer
This is the most common type used in pressrooms. It measures the light reflected off the printed surface, typically paper. By reading how dark each ink area appears, it helps press operators adjust ink levels across the sheet.
You’ll often use it to:
- Monitor solid ink density for CMYK
- Control dot gain (tone value increase)
- Maintain gray balance and visual consistency
Reflection densitometers are ideal for managing live press runs and color output on paper-based substrates.
2. Transmission Densitometer
Used mainly in prepress, this type measures how much light passes through a transparent material, such as film. It’s essential for verifying image setter output, film linearization, and exposure accuracy.
Transmission readings help you evaluate:
- Dmin (lightest area of the film)
- Dmax (darkest area)
- Mid-tone values across test wedges or halftone tints
If your workflow involves plate-making or film inspection, transmission densitometry is a must.
Both types share a common goal: giving you measurable control over ink behavior, dot integrity, and print stability.
Densitometer vs. Spectrophotometer: What’s the Difference?
A densitometer for printing measures how dark an ink appears. A spectrophotometer measures how a color actually looks to the human eye. They’re both valuable, but they do different jobs.
Densitometers use red, green, and blue filters to measure optical density. This tells you how much ink is on the paper and how it’s behaving mechanically. It’s perfect for monitoring:
- Solid ink density (SID)
- Dot gain (TVI)
- Print contrast and trap
But here’s the limit—densitometers don’t measure color. They only track darkness, not hue or color accuracy. That’s where spectrophotometers come in.
Spectrophotometers use a white light source and sensors to capture a full reflectance spectrum. They measure:
- Lab* color values
- ΔE color differences
- Spot color accuracy (including non-CMYK inks)
They’re ideal when brand color matching, spot colors, or expanded gamut printing is part of your job. Some advanced spectrophotometers can also measure density and dot gain, making them a hybrid solution.
Still, densitometers are faster, simpler, and more affordable when your main focus is CMYK process control.

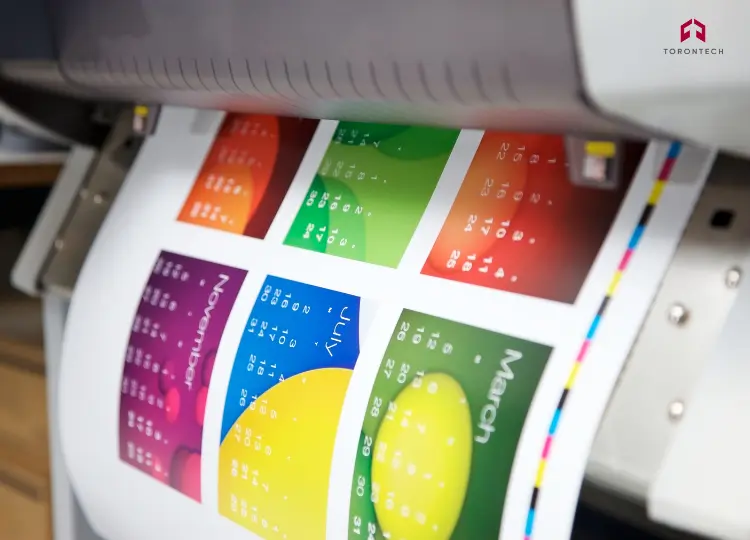

How Densitometers Improve Print Quality
When print quality matters, relying on visual checks isn’t enough. Density readings show exactly how ink behaves on paper, so you can make precise adjustments.
Here’s how densitometers help:
- Consistent ink coverage: They measure solid ink density (SID), helping you maintain even color across the sheet.
- Accurate tone reproduction: By tracking dot gain at 25%, 50%, and 75% areas, you can ensure smooth gradations.
- Improved gray balance: Balanced dot gain among CMY inks maintains neutral tones in mid-gray areas.
- Fewer press adjustments: With real-time data, operators waste less ink and time correcting issues mid-run.
- Predictable results: Once your target values are locked in, repeating jobs becomes faster and more consistent.
Over time, densitometers reduce waste, improve efficiency, and keep customers happy with reliable output.
How to Use a Densitometer in the Pressroom
Using a densitometer for printing is simple once you follow a consistent routine. You don’t need advanced tools—just clear targets and regular checks. With the right steps, it quickly becomes a dependable part of your daily process.
1. Start with a Colorbar
A colorbar is printed on each sheet, typically near the trailing edge. It contains solid patches and halftones for CMY and black. These patches are your reference points for measurement.
2. Measure Solid Ink Density (SID)
Place the densitometer on each solid patch. Read the density values for:
- Black (typically 1.50–1.70)
- Cyan (~1.35)
- Magenta (~1.30)
- Yellow (~1.00)
Use these as your baseline and aim to keep values within ±0.08 across the sheet.
3. Track Dot Gain
Measure halftones at 25%, 50%, and 75% tones. This helps you monitor how dots are spreading due to pressure, ink, or substrate behavior. Stable dot gain ensures smooth transitions and cleaner images.
4. Maintain Gray Balance
Compare dot gain between cyan, magenta, and yellow. If one color shifts too much, grays may appear tinted. Keep dot gains within 2% of each other for best balance.
5. Measure Across Key Zones
Don’t rely on just one patch. Read multiple locations to identify variations across the press width. This helps catch local issues like roller wear or inconsistent pressure.
Repeat these checks throughout the run. Densitometry becomes powerful when used continuously, not just during setup.
Choosing the Right Densitometer for Your Needs
Not every densitometer for printing is the same. The right one depends on what you print, how often, and how precise your control needs to be. Start by considering your workflow—then match the features.
A. For CMYK Process Printing
If you mostly print standard four-color jobs, a basic reflection densitometer is enough. It gives you quick access to:
- Solid ink density
- Dot gain (TVI)
- Print contrast and gray balance
Look for models with auto-patch recognition and fast scanning to save time on press.
B. For Spot Colors and Expanded Gamut
Need to measure Pantone or specialty inks? Choose a densitometer that supports SCTV (Spot Color Tone Value). This feature aligns with ISO 20654, designed for non-CMYK inks. Some advanced densitometers can even switch to spectrophotometer mode.
C. Reflection or Transmission?
If you work with film, you’ll need transmission capability to measure Dmin and Dmax. This is especially useful in prepress, plate-making, or film-based workflows.
D. Additional Features to Look For
- Calibration reminders
- Pass/fail indicators
- USB or wireless data transfer
- Integration with RIP or color management software
If you expect to scale up, consider a model that’s upgradeable to full spectrophotometry. That way, your investment grows with your needs.
FAQs About Densitometers for Printing
Answering common questions helps clear confusion—and builds trust. Below are real concerns printers often have when considering or using a densitometer for printing.
1. What does a densitometer do in printing?
It measures how much light reflects off or passes through a printed sample. This helps you control ink thickness, dot gain, and overall print consistency. It doesn’t measure color—it measures optical density.
2. Is a reflection densitometer the same as a transmission densitometer?
No. A reflection densitometer is used on paper to measure surface ink density. A transmission densitometer is used on transparent film to measure how much light passes through the material. Each is suited to a different part of the print process.
3. Can a densitometer measure spot colors?
Basic models can’t measure spot color tone values accurately. For that, you’ll need a densitometer that supports SCTV or a hybrid spectro-densitometer. These tools read non-CMYK inks more precisely.
4. How often should I calibrate my densitometer?
Ideally, calibrate daily before press runs or anytime you change lighting or working conditions. Most modern units have a built-in calibration function with reminders.
5. What are typical density targets for CMYK inks?
While it varies by paper and ink, a general guideline is:
- Black: 1.50–1.70
- Cyan: 1.35
- Magenta: 1.30
- Yellow: 1.00
Maintain within ±0.08 to ensure even ink laydown across the sheet.
Final Thoughts
A densitometer for printing gives you the data to print with confidence, not just intuition. Whether you’re managing dot gain, checking ink density, or maintaining gray balance, it keeps your output consistent from start to finish.
You don’t need the most expensive tools, just the right one for your process. Choose based on what you print, how precise your targets are, and how much control you want on press.
Consistent use leads to fewer reprints, better color stability, and happier clients. When quality matters, densitometry helps you deliver it—sheet after sheet.
