COLOR / PAINT / COATING TEST EQUIPMENT - Portable Color Spectrophotometer – Colorimeter ToronSpec™-700D

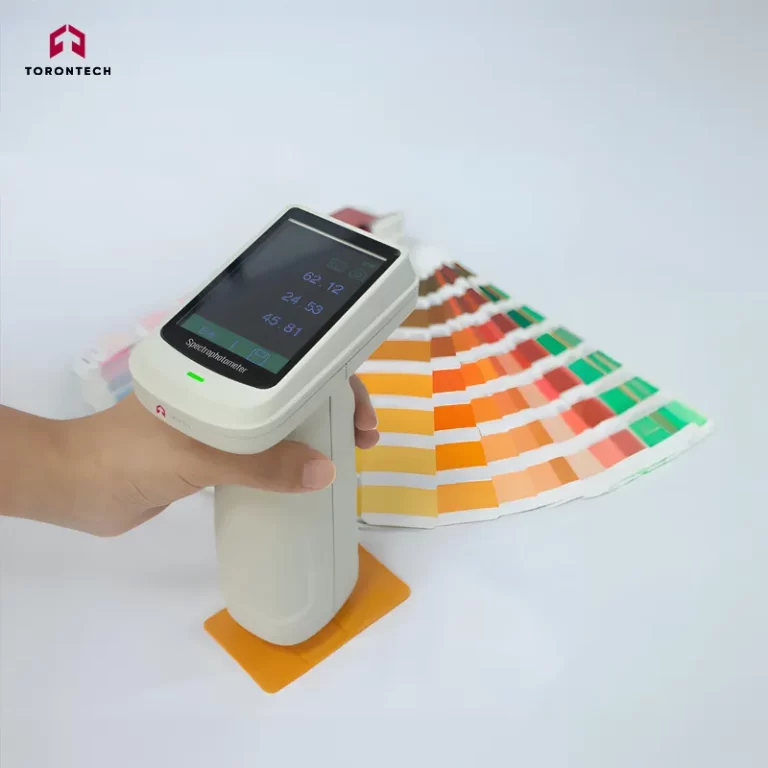

Portable Color Spectrophotometer – Colorimeter ToronSpec™-700D

Portable Color Spectrophotometer – Colorimeter ToronSpec™-700D features an excellent technical and technological level for accurate color measurement, ensuring superb inter-instrument agreement with dE*ab < 0.25. The dual-path design featuring a flat-field concave grating enhances instrument repeatability to dE*ab < 0.025.

Portable Spectrophotometer ToronSpec™-700D offers over 30 measurement parameters and nearly 40 evaluation light sources for selection. It comes with four aperture sizes (11mm, 6mm, 3mm, 1*3mm) to accommodate different sample sizes. Additional features include camera viewfinder positioning, ultraviolet UV measurement, mobile phone measurement, and color matching software.

Portable Color Spectrophotometer – Colorimeter
Portable Color Spectrophotometer – Colorimeter
Portable Color Spectrophotometer – Colorimeter
Portable Color Spectrophotometer – Colorimeter
Portable Color Spectrophotometer – Colorimeter

Application of Portable Color Spectrophotometer – Colorimeter ToronSpec™-700D

Portable Color Spectrophotometer – Colorimeter

Double optical path improves repeatability accuracy dE*ab≤0.025

The dual optical path design monitors the energy fluctuations of the light source while measuring the sample signal, reducing interference during measurement. This results in higher accurate color measurement stability and improves the instrument's repeatability index to dE*ab ≤ 0.02. This ensures high standards of measurement speed, accuracy, and stability between stations. The related technologies are protected by American invention patents.

Portable Color Spectrophotometer – Colorimeter

Innovative concave grating light path structure

We have utilized concave grating to achieve optical performance surpassing 10 nm, significantly enhancing the product's technical capabilities. The related technologies are protected by invention patents in the United States and have independent intellectual property rights worldwide.

Portable Color Spectrophotometer – Colorimeter

Features of Portable Spectrophotometer ToronSpec™-700D

Portable Color Spectrophotometer – Colorimeter

Excellent inter-station consistency dE*ab≤0.25

The ToronSpec™-700D features an excellent technical and technological level, ensuring superior inter-instrument agreement. Using the BCRA series of standard color tiles for color transfer and color value tracing guarantees that the same type of instrument maintains outstanding desk-to-desk consistency between upstream and downstream companies.

Portable Color Spectrophotometer – Colorimeter

Ultra-high repeatability accuracy: dE*ab < 0.025

Repeatability accuracy is a crucial index for describing the accuracy of a spectrophotometer. The ToronSpec™-700D spectrophotometer features an exceptional photoelectric test system that ensures its repeatability accuracy is unmatched by similar products. The repeatability evaluation of the ToronSpec-700D follows stringent standards, demonstrating its excellent repeatability accuracy.

The calibration white tile is a zirconium reference with a Mohs hardness of 9 to calibrate the instrument, which guarantees the long-term stability of the instrument

Unlike existing products, this spectrophotometer does not require frequent manual calibration. Simply placing it on the calibration base allows the instrument to automatically calibrate its functions and accuracy according to its state and environmental factors, ensuring it remains in a stable and ready-to-use condition at all times.

Calibrating the white tile is fundamental to the instrument's operation. Through extensive investment and research, we have incorporated zirconium materials, known as "artificial diamonds," into the calibration white tile, achieving a surface Mohs hardness of 9. This material's hardness and stability, comparable to diamonds, ensure that the calibration white tile surface remains scratch-free and does not change color with variations in temperature and humidity. In contrast to similar foreign and domestic products, which use ordinary industrial ceramics or even plastics for their calibration whiteboards, our choice of zirconium material significantly enhances the stability, durability, and overall performance of the instrument.

Portable Color Spectrophotometer – Colorimeter

Calibrated white tile (artificial diamond zirconium material)

  • Mohs hardness: 9
  • Spectral reflectance: >90%
  • No discoloration due to changes in temperature and humidity
  • No discoloration from oxidation
  • Ultra-high strength and resistant to scratching
  • More than 30 measurement parameters and nearly 40 evaluation light sources are available

    The ToronSpec™-700D spectrophotometer provides over 30 measurement indicators, including spectral reflectance, CIE-Lab, CIE-LCh, ΔE*ab, covering power, whiteness, and yellowness. It offers nearly 40 evaluation light sources, such as A, B, C, D50, D55, and D65, covering almost all the color measurement indicators and light source types in the industry.

    Portable Color Spectrophotometer – Colorimeter

    Supports 4 apertures

    To accommodate different sample sizes, the ToronSpec™-700D spectrophotometer supports four apertures: Φ11mm, Φ6mm, Φ3mm, and 1*3mm. This flexibility allows it to be used effectively in various sample testing scenarios.

    Portable Color Spectrophotometer – Colorimeter

    Built-in HD camera for clear viewing of measured area

    The ToronSpec™-700D spectrophotometer features a camera that captures images of the measured area during the measurement process. This allows for clear localization of the sample's measured area, preventing measurement inaccuracies caused by errors in area selection.

    Portable Color Spectrophotometer – Colorimeter

    Support Android, Apple, mobile APP

    The ToronSpec™-700D spectrophotometer can connect to various mobile phones using the Color Meter App. Users can easily share color data, eliminating the need to convey color values manually for samples and physical objects. The app allows users to identify the most similar colors across multiple sets of color cards.

    Additionally, users can create personalized color databases and input information for color cards used in printing, paint, and textiles. These color libraries can be uploaded to the cloud for convenient color processing and shared across multiple devices.

    For business users, the app enables them to create and manage their own color card information library and color recipes in the cloud. They can then share this information and recipes with their users through a unique invitation code.

    Portable Color Spectrophotometer – Colorimeter

    Use the powerful PC-based colour management system ColorExpert*

    The ToronSpec™-700D spectrophotometer comes with a Windows color management system called ColorExpert, which can connect to the spectrophotometer via Bluetooth or USB cable. ColorExpert is comprehensive color management software that comprises four functional modules: My Color, Color QC, Color Matching System, and Personal Center.

    Portable Color Spectrophotometer – Colorimeter

    My Color

    Users can collect or create their own color library from hundreds of other users' shared color libraries. Both the PC software and mobile app can share accounts, allowing color library data to synchronize between PC and mobile devices.

    Portable Color Spectrophotometer – Colorimeter

    Color QC

    The user can calibrate, measure, and configure the spectrophotometer using the PC software. They can utilize colors from the cloud database as specimens to measure color differences, view spectrograms, color difference graphs, specimen trial data, and export the desired data test reports.

    Portable Color Spectrophotometer – Colorimeter

    Color matching

    Offering users a more convenient and efficient color matching process, the system automates formula calculation in the formula center after the instrument measures the sample's color. This automated process ensures accurate color matching by automatically adjusting the color. The system is ideal for computerized automatic color matching applications in industries such as paint, coating, printing, textile, and others.

    Portable Color Spectrophotometer – Colorimeter

    Personal centre

    Users can edit personal information, search for or delete connected instruments, manage downstream users, and manage color libraries shared with downstream users.

    Appearance structure and accessories

    Portable Color Spectrophotometer – Colorimeter
    Quantity
    Spectrophotometer
    1
    Aperture
    4
    Calibration base
    1
    Portable package
    1
    Instructions
    1
    Charger
    1
    USB cable
    1
    Calibration Certificate
    1
    Software U Disk
    1

    Specification of Portable Color Spectrophotometer - Calorimeter ToronSpec™-700D

    Product model
    ToronSpec™-700D
    Measuring Geometry*
    D/8,SCI/SCE
    Measurement repeatability**
    ΔE*ab≤ 0.025
    Inter-instrument Agreement***
    ΔE*ab≤0.25
    Display accuracy
    0.01
    Measuring aperture
    Φ11mm,Φ6mm,Φ3mm,1*3mm
    Color Spaces and Indices
    Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73), Blackness(My,dM),Color Fastness, Tint,(ASTM E313-00),Color Density CMYK(A,T,E,M), Milm, Munsell, Opacity, Color strength
    Illuminants
    A, B, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, U35, DLF, NBF, TL83, TL84, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2
    Light source
    LED+UV
    Measurement observation method
    Camera
    Calibration
    Auto calibration
    Software
    Android, iOS, Windows
    Guaranteed accuracy
    Guaranteed first class measurement
    Observer
    2°,10°
    Integrating sphere diameter
    40mm
    Standards
    CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
    Spectrometry
    Grating
    Sensor
    Two-column high precision CMOS array sensor
    Wavelength interval
    10nm
    Wavelength range
    400-700nm
    Reflectance determination range
    0-200%
    Reflectance resolution
    0.01%
    Measurement time
    Less than 2 seconds
    Interface
    USB, Bluetooth
    Screen
    IPS full color screen, 3.5 inches
    Battery capacity
    8000 consecutive measurements, 7.2V/3000mAh with a single charge
    Life of Light Source
    10 years and 1 million cycles
    Language
    English and others
    Storage Memory
    Instrument: 100 standard samples and 10,000 samples; APP: Mass Storage
