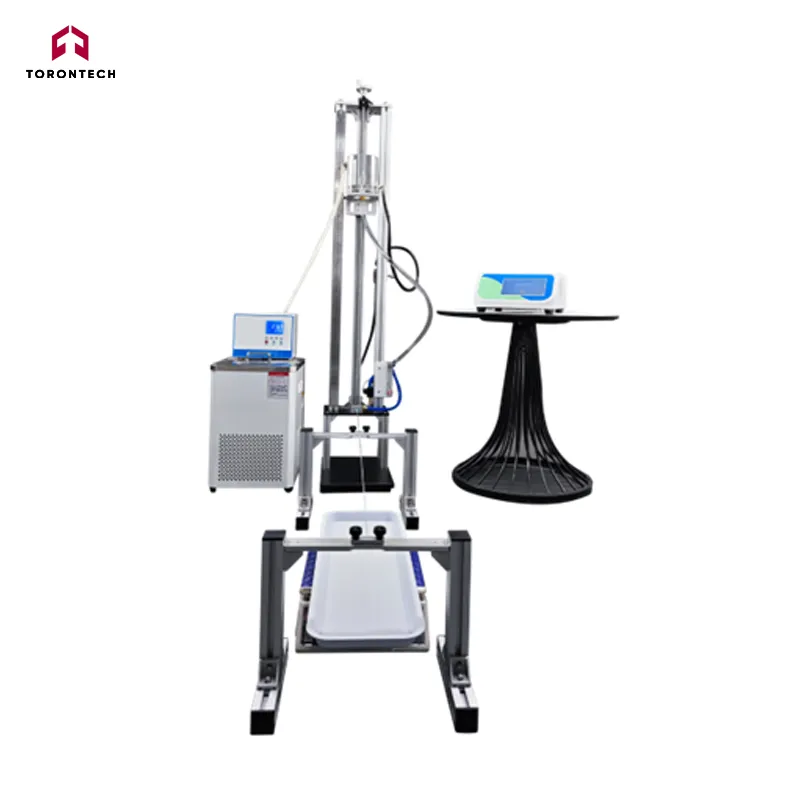

Auto Catheter Flow Rate Tester
Automated System for Flow Rate Testing of Catheters and Infusion Sets with Precision Balance and Real-Time Data Analysis
ToronMed-CFRT-Auto Auto Catheter Flow Rate Tester is an advanced, fully automated system designed to measure the flow rate of water through intravascular and non-intravascular catheters, as well as infusion sets, in accordance with the latest edition of ISO 10555-1:2023 and other applicable international standards.
Utilizing a high-precision balance and intelligent touchscreen interface, this tester offers real-time weighing, flow calculation, result printing, and automatic data storage — making it ideal for regulatory testing, production quality control, and R&D validation.
Data Integrity & Compliance
- Four-level user password access policy to ensure data protection
- Fully compliant with GMP computerized system requirements, including:
- User and role management
- Audit trail functionality
- Historical data search and traceability
Applications
| Device Type | Test Description |
|---|---|
| Intravascular Catheters | Flow rate testing under controlled pressure |
| Non-Intravascular Catheters | Validation of water flow characteristics |
| Infusion Sets | Automated flow delivery measurement and verification |
Standards Compliance
The ToronMed-CFRT-Auto supports test procedures aligned with major international standards, including:
- ISO 10555-1:2023 – Intravascular catheters – General requirements
- ISO 8536-4 – Infusion equipment for medical use – Infusion sets
- EN 1618 – Catheters other than intravascular – Flow characteristics
These standards define procedures for fluid delivery testing using hydrostatic pressure and are essential for verifying catheter and infusion set performance.

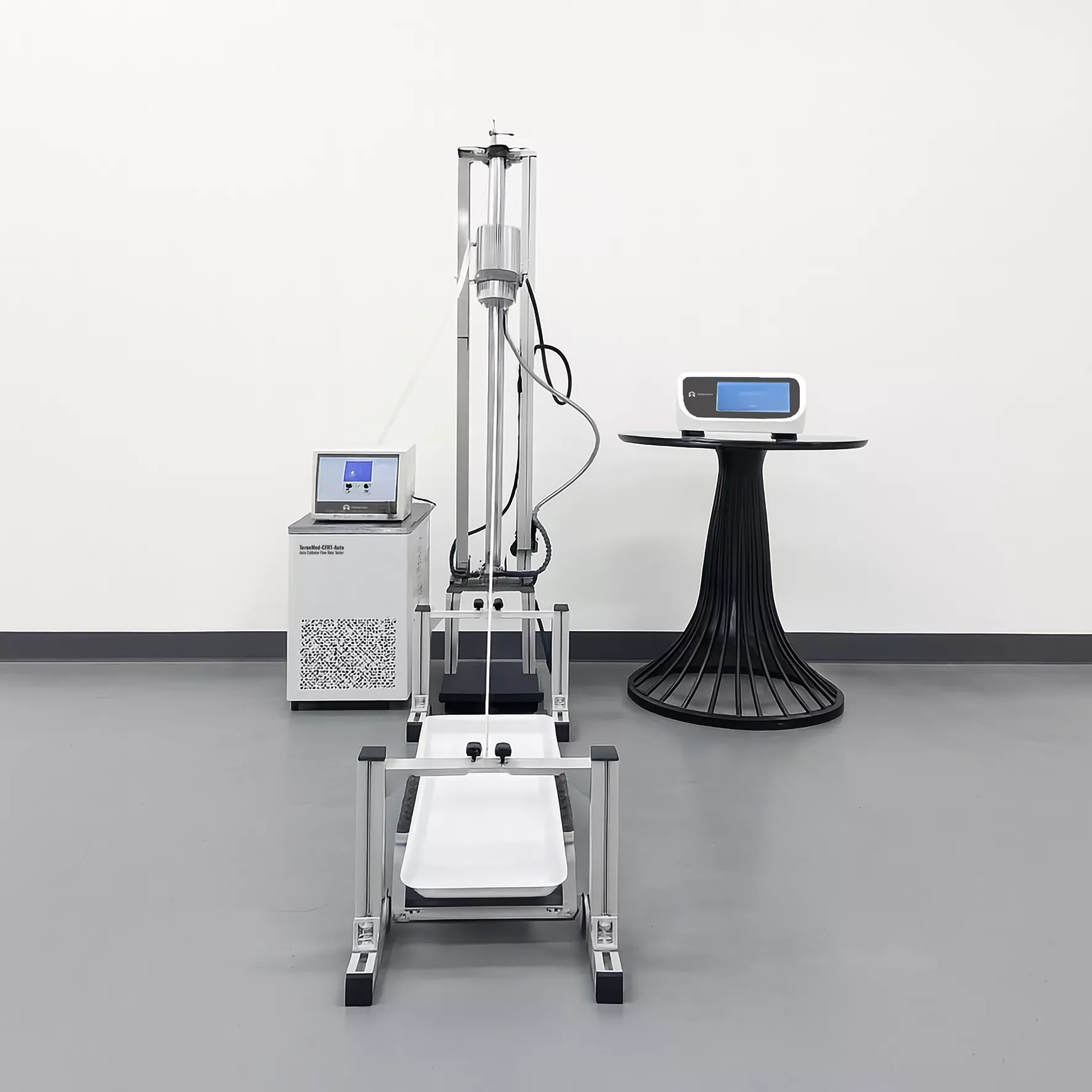

Standard Configuration
- Main instrument with touchscreen controller
- Hydrostatic pressure head
- Adjustable height test stand
- Constant temperature water tank
- PU tubing and test setup accessories
How Can We Help You?
Contact our sales team for a quotation.
Key Features

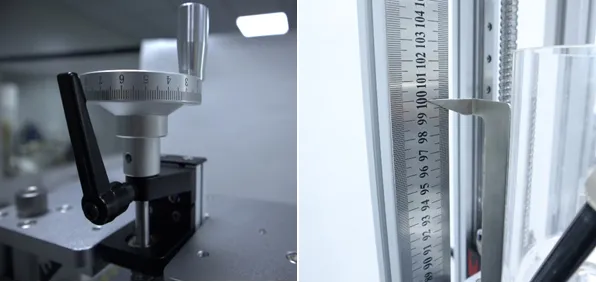

- Maintains a hydrostatic pressure height of 1000 ± 10 mm, adjustable across a wide vertical range
- Two selectable flow rates: 525 mL/min and 500 mL/min to comply with multiple testing standards
- Constant temperature water tank ensures test fluid is maintained at 23 °C (adjustable from 15–55 °C)
- Automated timing and flow calculation system integrated with high-precision balance
- 7-inch HD color touchscreen for real-time data visualization and user control
- Multiple flow measurement units available: L/min, g/min, etc.
- Stores up to 100,000 test records, with result printing and historical data review
- Supports automated result determination and custom report output formats
| Specification | Value |
|---|---|
| Model | ToronMed-CFRT-Auto |
| Balance Range | 0–3000 g |
| Accuracy | 0.1 g |
| Flow Rates | 500 mL/min, 525 mL/min (selectable) |
| Flow Rate Deviation | ≤ ±3 mL/min |
| Test Time | 1–99,999 seconds (user-configurable) |
| Time Accuracy | ≤ ±1 s |
| Temperature Range | 15–55 °C |
| Temperature Accuracy | ≤ ±1 °C |
| Voltage | 220V 50Hz / 120V 60Hz |
| Dimensions | 420 mm (L) × 280 mm (W) × 1680 mm (H) |
| Net Weight | 75 kg |
