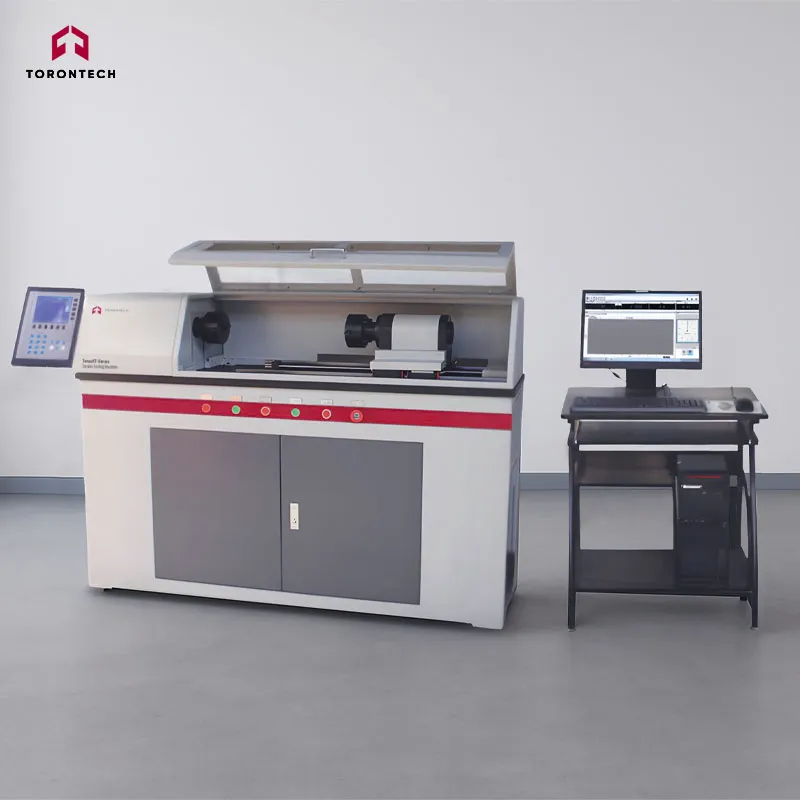

Computer - Controlled Torsion Testing Machine ToronTT-6000
Computer - Controlled Torsion Testing Machine ToronTT-6000 is a high-precision torsion testing system designed for accuracy, stability, and efficiency. Equipped with advanced servo motor control, real-time data processing, and comprehensive safety features, it ensures reliable performance for various testing applications.
Standards
ASTM A938-2004《Metal Wire Torsion Test Standard Test Method》
Inspection standard: JJG269-2006 " Torsion Testing Machine "
Test method: GB/T10128-2007 " Metal Room Temperature Torsion Test Method "
Usage
This machine is used for metal, non-metallic, composite materials and components torsion performance test.
- Servo motor drive ensures consistent reverse speed.
- Cycloidal reducer drive enhances efficiency and stability.
- The electrical control system offers high stability, smooth operation, fast response, and low noise. Parameters can be adjusted for different models to optimize performance.
- Features overload protection, emergency stop, and other safety functions.
- Test software on an English Windows platform provides advanced data and graphics processing, with instant test reports and curves.
- Includes torque value tracking, automatic torsion angle measurement, loading rate display, peak hold, and more.
- Automatically processes, displays, and prints test data, including test date, sample number, material properties, direction, strength, and other details.
- High-precision linear guides ensure proper coaxiality and parallel alignment.
| Max. torque (N.m) | 6000 |
| Measuring range of torque | 2%-100%FS |
| Accuracy class | 1 class |
| Relative error of indicating value of torque | ±1% |
| Resolution of torque | 1/300000 of max. torque |
| Measuring range of torsion angle | 0º-9999º |
| Relative error of indicating value of torsion angle | ±1% |
| Resolution of torsion meter torsion angle | 0.01º |
| Torsion speed | 3.6-1080°/min |
| Relative error of torsion speed | Within ±1.0% of setting value |
| Max. distance between two collets (mm) | 500 |
| Diameter of sample | φ8～φ37mm |
| Voltage (V) | 380V 50Hz |
