Pharmaceutical Testing Equipment - Dissolution Tester

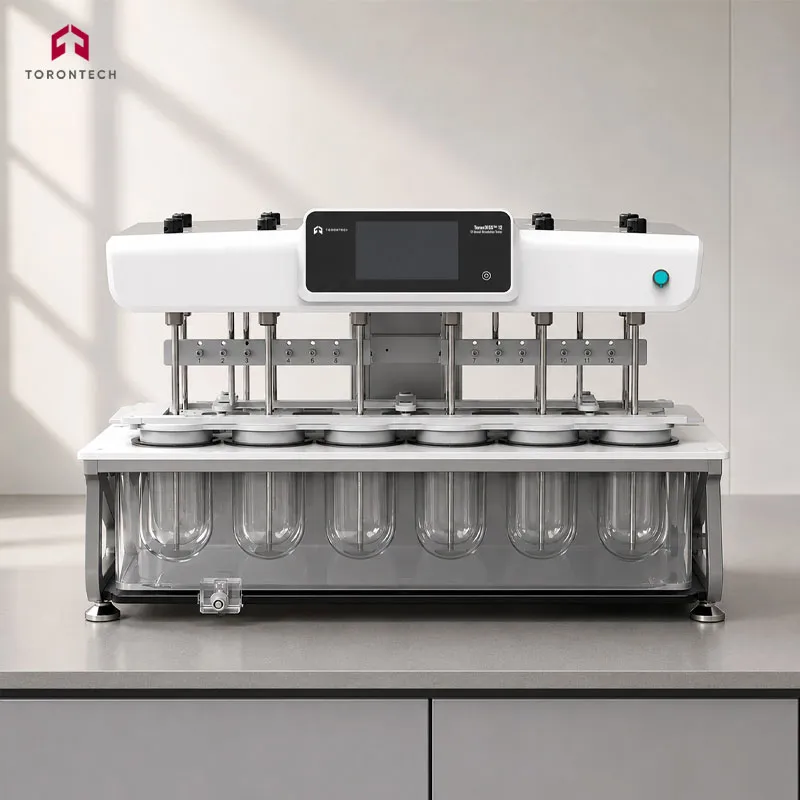

Dissolution Testers Features ToronPharma TTdisso series of Dissolution Testers - TTdisso8/TTdisso14

USP, IP, Ph, Eur, and JP

A dissolution test is a means of identifying and proving the availability of active drug materials in their delivered form. A dissolution test simulates the availability of active substance and allows the prediction of the time for complete release of the material from the dosage form.

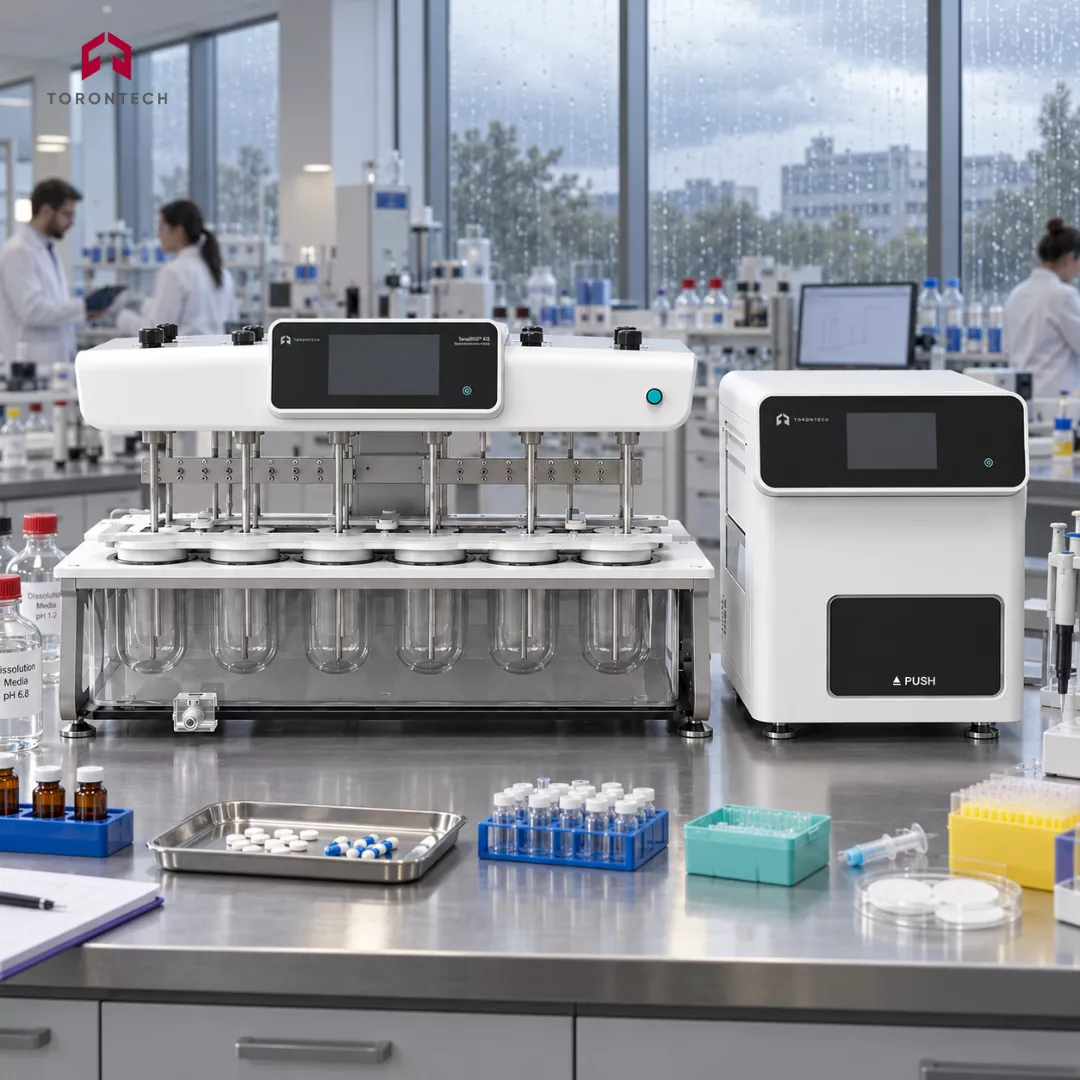

ToronPharma TTdisso series of Dissolution Testers are the most efficient dissolution instruments in the market, specially designed with the end-user in mind. They are simple to operate with features that make analyst training and lab integration easy. TTdisso8 and TTdisso14 are not only ideal for manual testing but can be easily integrated with our automated system and ToronSOFT Dissolution Software.

ToronPharma TTdisso8 and TTdisso14 complies with current USP, IP, Ph, Eur and JP specifications. The automatic stirrer height positioning for USP 1, 2, 5, 6 intrinsic test methods and also allows users specified height. The machine comes with 20 programmable protocols and 24 programmable sampling intervals. Bath temperature range between 30℃ to 40℃ is controlled with an accuracy of ±0.1℃. With the isolated water circulating pump, the water bath temperature could be controlled precisely. User-friendly design allows the water bath to be cleaned and emptied easily, also minimize routine validation. Instrument accessories like paddles, baskets, and vessels are laser marked with serial numbers. For online test validation, monograph and error log, a report will be generated.

New 40 × 4 LCD display

Alphanumeric data entry of products and user details

Multilevel security with password

Designed to minimize routine validation

Unique time-action function which allows media changeover and infinity test run

LAN connectivity allows central printing, storing and sharing of data

Ideal for sustained and controlled release products

Report for online validation of test, monograph and error log


Model	TTdisso8	TTdisso14
No. of Stations	8	14
Speed Range	20 RPM to 300 RPM
Speed Accuracy	± 0.5RPM
Temperature Range	20℃ to 40℃
Temperature Accuracy (at 37℃)	0.1℃
Display	40 × 4 character LCD
No. of Protocols	20
No. of Samples	24
Sample Interval	1 min to 999 hrs 59 min
No. of syringes	Standard: 6, optional: 8	Standard: 12, optional: 14
Interface Port	Ethernet, RS 232, RS 485
Stirrer Drive	High-performance BLDC (maintenance-free)
Vessel Capacity	100ml, 250ml, 1L, 2L, 4L	100ml, 250ml, 1L, 2L
Water Bath	One-piece moulded (clear or amber)
Bath Capacity	28L	40L
Temperature Controller	Heater: 1kw, ss 316 with thermal protection Sensor: RTD
Electrical Power	220/230 V, AC, 50/60
Dimensions (W × H × D)
Main Unit	1240 × 650 × 710mm	1670 × 650 × 710mm
Offline Automation System	1700 × 650 × 710mm	2300 × 650 × 710mm
Weight
Main Unit	84kg	126kg
Offline Automation System	141kg	212kg
Standard Configurations	Laser marked Basket with rod (USP I) × 8 Laser marked Paddle (USP II) × 8 Clear 1000ml glass jars with lids. × 6 Clear 1000ml merlon jars with lids. × 2 Water circulator × 1 Moulded Perspex water bath × 1 External temperature probe × IQ/OQ Documents x 1	Laser marked Basket with rod (USP I) × 14 Laser marked Paddle (USP II) × 14 Clear 1000ml glass jars with lids. × 12 Clear 1000ml merlon jars with lids. × 2 Water circulator × 1 Moulded Perspex water bath × 1 External temperature probe × IQ/OQ Documents x 1

Quote Form

First Name

Last Name/ Surname

Phone Number

Company Name

Company Type

Country

State/Province

Product Interest

Timeline

Message

Dissolution Tester - Reciprocating - ERD-03

The flexibility to select from multiple configurations of rows, vessels, and vessel volumes to meet testing needs for USP 7

Provides 20 programmable protocols with 24 sample intervals

Offers two-level security with password protection

Equipped with a touch screen featuring a graphical display for user-friendly operation

Allows for dip rate adjustments ranging from 5 to 50 dpm with an accuracy of ±1%

Supports programmable hold, drain time, and dip rate settings in each row

Has a temperature range between 30°C to 40°C with a control accuracy of ±0.2°C

Features online validation of dip rate and temperature

Utilizes a rugged clear acrylic water bath

Offers PC and LAN connectivity for centralized printing, data storage, and sharing

Includes a retractable curtain to prevent media loss due to evaporation

Can be configured with vessels of both 100 ml and 1000 ml capacity, along with a vessel tray for convenience.


Model	ERD-07
Material of Construction	SS 316
Water Bath	Clear acrylic molded water bath
Bath capacity	44 liters
No. of rows	6
Vessel capacity (ml)	300
Reciprocating height (mm)	100
No. of dips rate (dpm)	5 to 50
Accuracy (°C)	± 0.2
Controlled temperature range (°C)	30 to 40
Display	Touch screen
Motor	Single shaft Motor 10 kg cm
Heater	1000 Watts, 230 V AC, S. S 304
Mains fuse	1 Amp
Heater fuse	6 Amp
Dimension (L X W X H)	795 X 675 X 780 mm
Power Supply	(110V is also available. Please specify when ordering)

Quote Form

First Name

Last Name/ Surname

Phone Number

Company Name

Company Type

Country

State/Province

Product Interest

Timeline

Message

Diffusion Cell Apparatus Model EDC-07

7 station apparatus

Ideal for transdermal and topical products

Offers 10 programmable protocols with 12 sample intervals

Designed ergonomically to conserve bench space

Vertical diffusion cells are available in sizes of 5, 7.5, 12.5 ml, and 20 ml

Specifically designed for use in academic institutions

Features an evenly packed surface for optimal performance.


Model	EDC-07
Number of Cells	7
No. of protocol	10 Maximum
Sample interval	12
No. of motor	1
Range	30.0⁰C to 40.0⁰C
Control accuracy	± 0.1°C
Resolution	0.1⁰C
Heater sensor	RTD (PT 100)
Heater wattage	100 watts
External probe	RTD (PT 100)
Type	Magnetic Coupling
Flow rate	15 liters/min
No. of Timer	1
Range	1 min to 999 hrs 59 min
Display	20 x 4 LCD
Supply	230 VAC, 50 Hz OR 110 VAC, 60 Hz (110V is also available. Please specify when ordering)
Fuse	2 Amp/250 V (For Input 230 V AC,50Hz)
Power Consumption	1 K VA

Quote Form

First Name

Last Name/ Surname

Phone Number

Company Name

Company Type

Country

State/Province

Product Interest

Timeline

Message

Dissolution Tester - Reciprocating - ERD-07

It allows users to choose from various configurations of rows, vessels, and vessel volumes to cater to their specific testing requirements for USP 7.

It comes with 20 programmable protocols featuring 24 sample intervals.

The device ensures security with two-level access protected by a password.

It features a user-friendly touch screen with a graphical display for easy operation.

The dip rate can be adjusted within a range of 5 to 50 dpm (dips per minute) with an impressive accuracy of ±1%.

Each row is programmable for hold time, drain time, and dip rate.

The temperature control falls within the range of 30°C to 40°C, with precise control accuracy at ±0.2°C.

It offers online validation for both dip rate (dpm) and temperature.

Featuring a rugged and clear acrylic water bath, it ensures durability.

With PC and LAN connectivity, users can conveniently centralize tasks such as printing, data storage, and data sharing.

A retractable curtain is included to prevent media loss due to evaporation.

Configuration options include the use of vessels with capacities of 100 ml and 1000 ml, complemented by a vessel tray for added convenience.


Model	ERD-03
Material of Construction	SS 316
Water Bath	Clear acrylic molded water bath
Bath capacity	liters
No. of rows	6
Vessel capacity (ml)	300
Reciprocating height (mm)	100
No. of dips rate (dpm)	5 to 50
Readable temperature range (°C)	15 to 50
Controlled temperature range (°C)	30 to 40
Display	Touch screen
Motor	Single shaft Motor 10 kg cm
Heater	1000 Watts, 230 V AC, S. S 304
Mains fuse	1 Amp
Heater fuse	6 Amp
Dimension (L X W X H)	795 X 675 X 780 mm
Power Supply	(110V is also available. Please specify when ordering)

Quote Form

First Name

Last Name/ Surname

Phone Number

Company Name

Company Type

Country

State/Province

Product Interest

Timeline

Message

Dissolution Tester - 8 Station Inspire-08

An LCD display with 40 characters and 4 lines

Three-level security with password protection

Alphanumeric data entry for product and user details

A unique TimeAction™ function, which allows for media changeover and infinite test runs, making it ideal for sustained and controlled release products

Compliance with USP, IP, Ph. Eur., and JP specifications

Automatic stirrer height positioning for USP 1, 2, 5, 6, and intrinsic test methods

An Easy Snap-Fit shaft locking mechanism, ensuring secure engagement and wobble-free operation

A clear water bath with a metal top-plate

A precise individual vessel centering system

Adjustable leveling of the instrument

Vibration-free, smooth motorized lift movement

An isolated water circulating pump, providing precise temperature control of the water bath

Support for 20 programmable protocols

16 programmable sampling intervals

An easy-to-empty and clean water bath with bottom drainage

Designed to minimize routine validation efforts

Capability to generate reports for online validation of tests, monographs, and error logs during the test

Programmable wake-up feature for temperature control

Programmable sample volume ranging from 1 ml to 25 ml

Audio-visual indicators for system status

Power failure detection facility.


Model	Inspire-08
Accuracy	+/-1% RPM
Temperature range	20° C to 40° C
Temperature Accuracy	±0.1°C
Display	40 x 4 character backlighted LCD
No. of protocols	20 maximum
Sample interval	Maximum 16 of 1 min to 23 hrs, 59 min
Printer interface	Serial port
Printer supported	80 column Dot Matrix printer
Bath	Clear acrylic molded water bath
Bath size (L x W x H)	705 x 374 x 200 mm
Heater	1 kW/230 VAC, material S.S. 304 with sensor
Pump supply	230 VAC,50 Hz
Pump type	Magnetic coupling
Pump flow rate	10 liters/minutes maximum
Power supply	220 /230 VAC , 50 / 60 Hz, 1.3kW/6Amp (110V is also available. Please specify when ordering)
Dimension(L x W x H)	705 x 505 x 645 mm

Quote Form

First Name

Last Name/ Surname

Phone Number

Company Name

Company Type

Country

State/Province

Product Interest

Timeline

Message

Dissolution Tester - Inspire-08 with Sample Collector (Dc)
