Lube Oils Testing Equipment - Full Automatic Kinematic Viscosity Tester

Full Automatic Kinematic Viscosity Tester

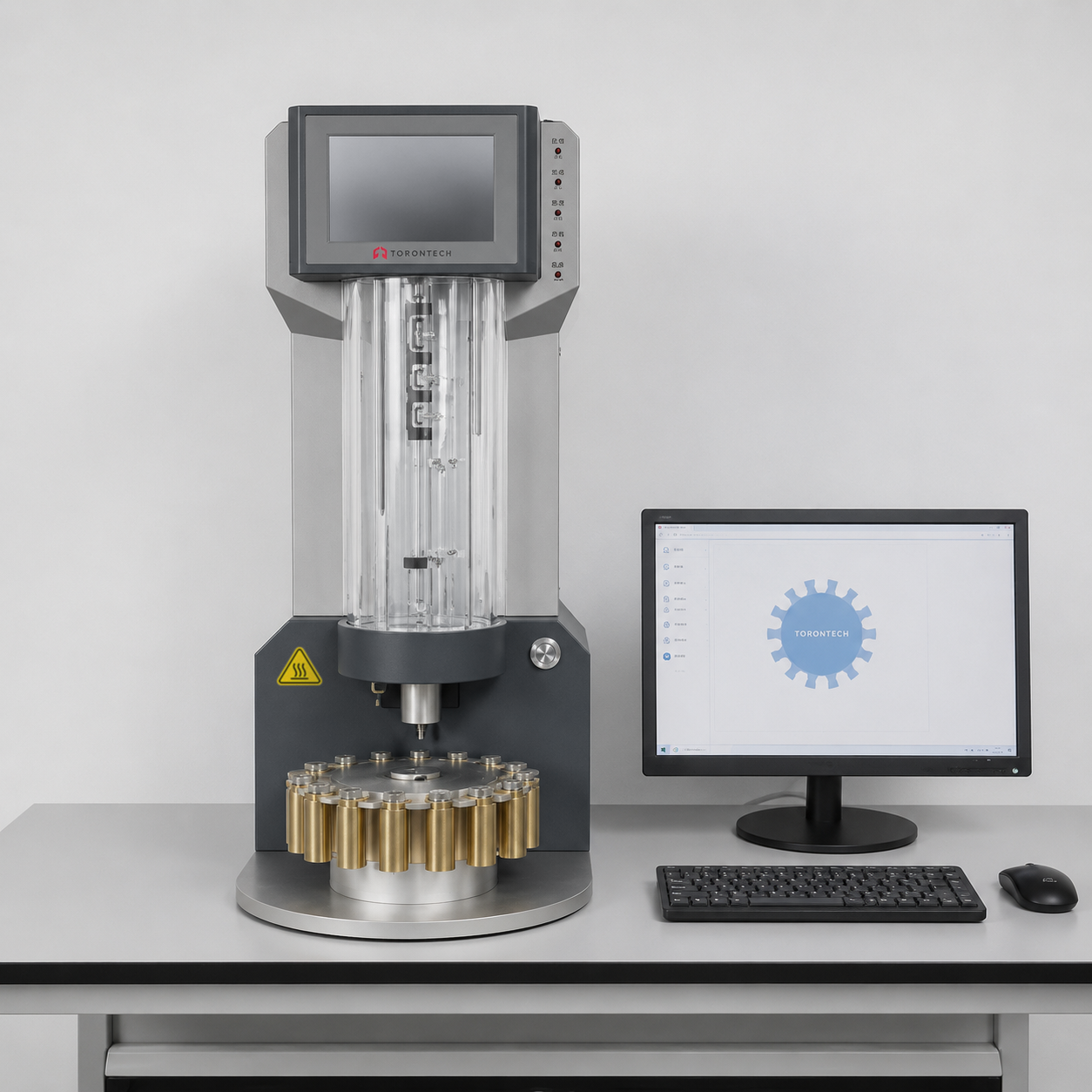

Full Automatic Kinematic Viscosity Tester TT-445Z

Full Automatic Kinematic Viscosity Tester TT-445Z conforms to the ASTM D445 Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids (and Calculation of Dynamic Viscosity).

Full Automatic Kinematic Viscosity Tester TT-445Z is utilized to measure the viscosity of liquid petroleum products, both transparent and opaque, by determining the time it takes for a volume of liquid to flow under gravity through a calibrated glass capillary viscometer. The dynamic viscosity, η, can be obtained by multiplying the kinematic viscosity, ν, by the density, ρ, of the liquid, under certain constant temperature conditions. This apparatus method covers a range of kinematic viscosities from 0.2 to 300,000 mm2/s at all temperatures.

1. Equipped with a 16-bit sample tray, capable of continuous operation. Features intelligent preheating, injection, measurement, cleaning, drying, result calculation, and repetitive calculations.
2. The apparatus utilizes photoelectric or thermal detection, enabling measurement of both transparent and opaque samples, including Newtonian fluids such as gasoline, diesel, kerosene, cutting fluid, heat-conducting oil, additives, fresh and used lubricating oils, etc.
3. Includes a PTC sample intelligent preheating function. The apparatus can automatically control the preheating temperature based on the expected sample temperature.
- Preheat temperature range: room temperature to 120℃
- Heating rate: 15℃/min
- Significantly reduces sample thermostatic time during testing.
4. Features a built-in Peltier refrigeration system. It uses thermostatic bath liquid as a cooling medium directly, resulting in fast cooling speed.
5. Applies self-adaptive liquid level balance technology, adapting to large-span adjustments of test temperature. It can automatically increase and decrease the thermostatic medium during the heating and cooling process to maintain the same immersion depth.
6. The apparatus incorporates a built-in Windows operating system for easy operation and can be connected to LIMS systems and barcode scanners for automatic sample information input.
7. The system includes automatic calibration functions for the viscometer constant, temperature, and internal clock timing, and can automatically convert kinematic viscosity into Engler viscosity and calculate viscosity index, among other functions.
8. Features both software and hardware overtemperature protection functions, including overtemperature alarm, dry heat protection, insufficient cleaning solution prompt, waste liquid cleaning prompt, and other functions to ensure safe operation.
9. Utilizes a double glass bath design, PT1000 high-precision temperature sensor, and double-blade stirrer to maintain stable and accurate thermostatic bath temperature. Temperature precision is 0.005℃.
10. Includes an automatic intelligent dual solvent cleaning function, with customizable cleaning modes.
11. Equipped with a timing verification port for accurate time verification of the instrument through a standard time calibrator.

1. Standard: ASTM D445, D446, ISO3104
2. Measuring range: 0.3 to 10000 mm2/s, providing a 100 times measuring span of one viscometer tube
3. Number of samples loaded: 16
4. Bath volume: 3L
5. Temperature control range: 20 to 100℃ (built-in Peltier refrigeration)
6. Temperature control accuracy: 0.005℃
7. Timing accuracy: 0.01 seconds
8. Repeatability: ≤0.4%
9. Total Power: ≤1000 W
10. Main host dimensions: 400 × 700 × 800 mm
11. Rated voltage: AC220V±10%, 50Hz±10% (110V also available)
12. Ambient temperature: 10 to 28℃, Relative humidity: <80%RH
13. Other considerations: No strong vibration, airflow, strong electromagnetic interference, or corrosive gas.
