Color / Paint / Coating Test Equipment - High Precision Benchtop Color Spectrophotometer - ToronSpec™ 800 Series

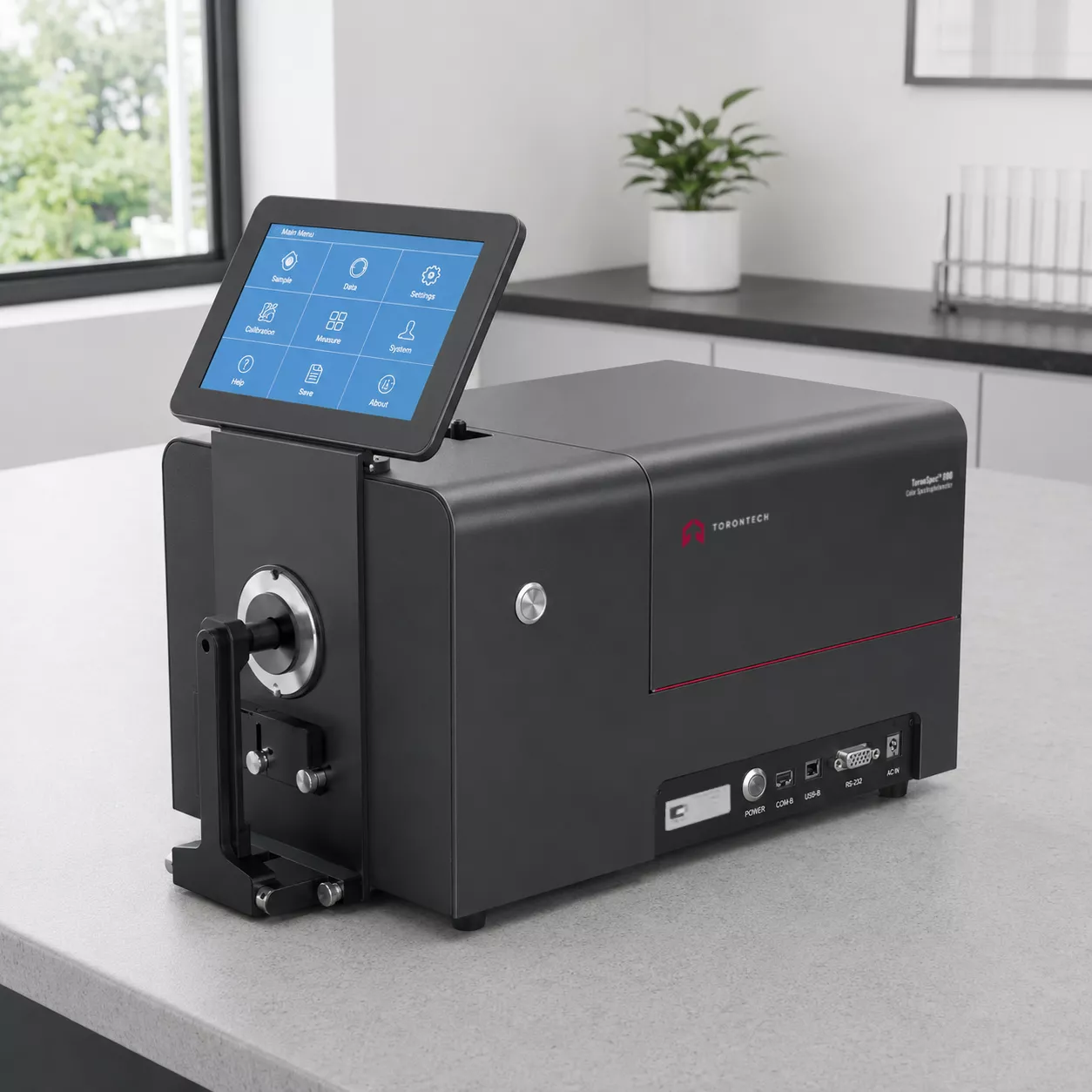

High Precision Benchtop Color Spectrophotometer - ToronSpec™ 800 Series
Accurate, stable, and reliable color analysis for laboratory applications
The ToronSpec™ Series is a collection of high precision benchtop color spectrophotometers designed for precise and consistent color measurement in lab environments. These instruments accurately measure light intensity and wavelength, making them suitable for color quality control and analytical testing.
Built to meet international standards, each high accuracy spectrophotometer in the series ensures dependable data, even in long-term use. These models also support UV-Vis measurements, enabling more comprehensive color analysis across a wide range of samples and materials.
ToronSpec™-820N
The ToronSpec™-820N is a user-friendly, high accuracy spectrophotometer featuring a 7-inch TFT true-color capacitive touchscreen and Android operating system. It uses both pulsed xenon and LED light sources and supports reflection (D/8) and transmission (D/0) measurement modes.
This high precision benchtop color spectrophotometer also includes optional UV measurement and offers:
- Large internal storage
- Stable and repeatable results
- Smooth integration with PC-based color analysis software
It is well-suited for both reflection and transmission applications in laboratory settings.
ToronSpec™-821N
The ToronSpec™-821N is a stable and intelligent benchtop spectrophotometer built for long-term reliability. Its advanced auto-calibration feature ensures measurement consistency, even under changing environmental conditions.
Key features include:
- Dual light sources: pulsed xenon and LED
- 24 standard light sources and over 40 measurement parameters
- Accurate simulation of color data under different lighting conditions
This model is ideal for research and production labs that require precise, repeatable results.
ToronSpec™-826
The ToronSpec™-826 is a top-tier high precision benchtop color spectrophotometer designed for high-stability color measurement. It excels in black object detection and delivers consistent results across fluorescence and standard color testing.
Highlights include:
- Enhanced UV light source for stable fluorescence measurement
- Advanced data processor for fast, reliable readings
- Automatic calibration for long-term consistency
- Excellent data compatibility with leading international brands from the U.S., Japan, and Europe
Features of High Precision Benchtop Color Spectrophotometer - ToronSpec™ 800 Series
Specification of High Precision Benchtop Color Spectrophotometer
|
Name |
ToronSpec™-820N |
ToronSpec™-821N |
ToronSpec™-826 |
|
Lighting/light receiving system |
Reflection :d/8(diffuse lighting,8° direction reception), transmission :d/ 0 (diffuse lighting, vertical direction reception); SCI(including specular reflected light)/SCE (not including specular reflected light) measurement at the same time;
Compliance with: CIE No.15,GB/T 3978, GB 2893,GB/T 18833,ISO7724/1,DIN5033 Teil7, JIS Z8722 Conditions C,ASTM E1164,ASTM-D1003-07 |
||
|
Sensor |
Silicon photodiode array |
Dual-row high precision CMOS array sensor |
|
|
Light splitting method |
Concave grating |
||
|
Integrating sphere diameter |
152mm |
||
|
Wavelength range |
360mm-780mm |
||
|
Wavelength interval |
10nm |
||
|
Half wave width |
5nm |
1.6nm |
|
|
Reflectance measurement range |
0-200%, resolution 0.01% |
||
|
Lighting source |
Pulsed xenon lamps and LEDS |
||
|
UV measurement |
Including UV, 400nm cutoff, 420nm cutoff, 460nm cutoff |
||
|
Measure time |
Single mode <2s |
||
|
Measurement/Illumination Aperture |
Reflection: XLAV Φ25.4mm/Φ30mm, LAVΦ15mm/Φ18mm, MAVΦ8mm/Φ11mm, SAVΦ3mm/Φ6mm
Users can customize the caliber, automatic identification of caliber switching Transmission: Φ17mm/Φ25mm |
||
|
Transmission measurement specification |
Sample height and thickness: unlimited height, thickness ≤50mm |
||
|
Long-term repeatability |
/ |
XLAV chromaticity value: standard deviation ΔE*ab within 0.015
(Any temperature change at 20°C±10°C, measure the white calibration plate every hour within 24 hours) |
|
|
Repeatability |
ΔE*ab≤0.02, Spectral reflectance/transmittance≤0.1% |
ΔE*ab≤0.015, Spectral reflectance/transmittance≤0.1% |
ΔE*ab≤0.01, Spectral reflectance/transmittance≤0.1% |
|
Inter-instrument agreement |
XLAV ΔE*ab 0.25 |
XLAV ΔE*ab 0.2 |
|
|
Standard observer |
2° Standard Observer and 10° Standard Observer |
||
|
Light source |
A, B, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, U35, DLF, NBF, TL83, TL84, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2 |
||
|
Language |
English and others |
||
|
Display content |
Spectral data, spectral graph, chromaticity data, color difference data, color difference graph, pass/fail judgement, simulated color, color evaluation, haze liquid chromaticity, color bias |
||
|
Color space |
CIE LAB, CIE LUV, LCh, Hunter Lab, Yxy, XYZ, Musell, s-RGB, βxy |
||
|
Chromaticity index |
WI (ASTM E313-20, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, Taube, Berger Stensby), YI (ASTM D1925, ASTM E313-20, ASTM E313-73), Tint (ASTM E313-20), metamerism index Milm, staining fastness, color fastness, ISO brightness, R457, A density, T density, E density, M density, APHA/Hazen/Pt-Co (platinum cobalt index), Gardner (Gardner index), Saybolt (Saybolt index), Astm color, haze total transmittance, hiding power, strength, strength |
||
|
Chromatic aberration formula |
ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc, ΔE*94, ΔE*00, ΔE*ab(Hunter), 555 color classification |
||
|
Storage |
8GB |
||
|
Screen size |
7 inch capacitive touch screen |
||
|
Operation system |
Android |
||
|
Power supply |
DC regulated power supply |
||
|
Operating temperature and humidity range |
5~40°C, relative humidity below 80% (at 35°C), no condensation |
||
|
Storage temperature and humidity range |
-20~45°C, relative humidity below 80% (at 35°C), no condensation |
||
|
Accessories |
Power adapter, data cable, transmission fixture, USB flash, disk, Black cavity, white board, green board, 0% calibration Visor cover (with 820N), 30mm aperture, 18mm aperture, 11 mm aperture, 6 mm aperture, support table, colorimetric dish, damping handle |
||
|
Optional accessories |
Heating transmission fixture (including control circuit), vertical bracket, pneumatic jacking rod
(including control circuit), small sample holding accessories, reflection cubed bracket corrosion resistant plate (not removable), fiber test box, film fixture, trace transmission fixture, rod box, European standard plug, American standard plug |
||
|
Interface |
RS-232, USB, USB-B |
||
|
Others |
1. Camera framing and positioning;
2. The instrument can measure sideways, upwards and downwards (with accessories); 3. Automatic temperature and humidity compensation function |
||
|
After the instrument is calibrated, measure the white calibration plate 30 times at intervals o 5 seconds and measure the standard deviation of the results with the XLAV caliber
At 23°C, measure the average value of XLAV diameter measured by BCRA Series 12 swatches. |
|||
