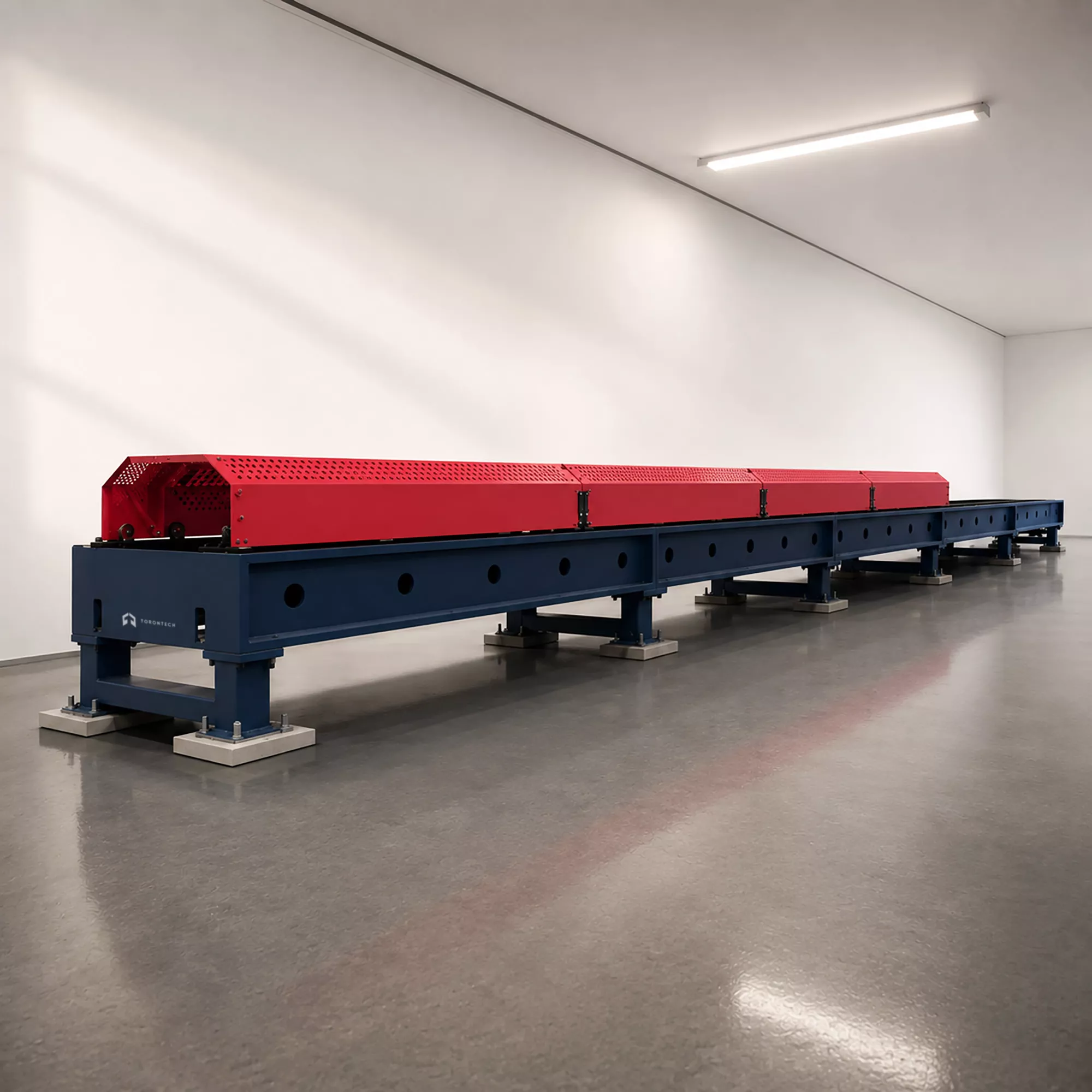

Horizontal Tensile Testing Machine for Overhead Conductors

Horizontal Tensile Testing Machine for Overhead Conductors is purpose-built for testing wire, rope, chain, shackles, and cables. These horizontal test frames are designed to accommodate long specimens and meet high elongation requirements.

The frames are driven by a servo motor, spindles, and a synchronous belt, ensuring variable high-strength testing. Customizable in length, the frames can be tailored to different application needs. Additionally, the grips can be adapted for various specimen shapes, with interchangeable options available to suit evolving test needs.

The PC-based control software included with the machine is equipped with advanced data acquisition and analysis features, providing comprehensive testing insights.

Wire, Rope, Chain, Shackle, and Cable Testing: Designed specifically for testing wire, rope, chains, shackles, and cables, this series features a horizontal test opening that accommodates long specimens and meets high elongation demands. Powered by hydraulic systems for robust strength testing, the frames can be customized in length to suit various application needs, offering versatility for diverse testing requirements.

How Can We Help You?

Contact our sales team for a quotation.

Generous Bed Clearance: The machine's large bed clearance enables testing for a broad range of specimen types, including full-length samples, sling constructions, and high-capacity specimens.

Adjustable Carriage: Equipped with a freely moving, roller-supported carriage, it can be easily positioned to align with the required nominal test specimen length, depending on the design.

Versatile Design for Diverse Testing: Frames, fixtures, and strain measurement devices can be designed and manufactured to accommodate various products needing tensile tests. Low-friction seals are fitted to the piston head and cylinder ends, enhancing performance.

Enhanced Safety Features: The machine is fully enclosed with fixed plates at the bed’s base and manually operated hinged guards at the top, ensuring comprehensive safety.

High Accuracy: Achieves loading accuracy within ±1% for larger capacities and ±0.5% for smaller ones, ensuring precise test results.

Built-in Calibration: Features a reverse loading structure that allows load cell calibration directly within the compressive space, eliminating the need for separate hydraulic presses. This design also improves measurement accuracy by calibrating the load cell on the machine itself.

Software

Windows-Based Software Platform: This user-friendly software package operates on a Windows-based platform, providing an intuitive interface for seamless operation.

Multi-Measurement Units: Display options for dimensions, load, and deformation in various units, adjustable based on user preference.

Customizable Test Methods: Users can create and save optimized test methods tailored to different materials and dimensions, allowing operators to simply load the preset method and click "Start" for consistent repeat testing.

Configurable Reporting: Generate custom Excel-based reports with a user-configurable template for flexible documentation.

Multi-Curve Diagrams: Real-time graphical displays of:

Load/Elongation

Load/Displacement

Load/Time

Curve Comparison and Zooming: Select and compare multiple curves, and zoom in on specific sections of the curves for detailed analysis.

Language Options: Language packs are available upon request, enhancing accessibility for global users.


Models	TT-HTTM-100	TT-HTTM-300	TT-HTTM-500
Test Type	Creep Type	Tensile Type
Test Stations	3	1
Loading Stroke	1500 mm
Distance between Fixtures	14m	10m
Load Capacity	100kN	300kN	500kN
Accuracy Class (ISO 7500-1)	0.5	1
Load Measuring Range	0.4% to 100% F.S
Load Indication Accuracy	± 0.5%
Load Resolution	± 500,000 steps (no range switching)
Extensometer Measuring Range	1 to 5 m	1 to 1.2m
Extensometer Accuracy	± 0.5%
Extensometer Resolution	0.0001mm
Displacement Accuracy	± 0.5%
Displacement Resolution	0.000025mm
Load Control Rate	0.05% to 10% F.S./s
Load Control Accuracy	± 0.5%
Moving Speed Range	0.005 to 500mm/min	0.005 to 250mm/min
Internal Width	900mm
Dimensions (L × W × H)	1680 × 120 × 70cm 55.1 × 3.9 × 2.3 ft.	1400 × 150 × 70cm 45.9 × 4.9 × 2.3 ft.
Standard Configurations	Main Unit Main frame Ball Screw Driving System Guards Foundation Blocks Shock Resistance Pads × 20Pcs (Creep only) Climate Chamber ×1 (Creep only) Power-off Protection System ×1(Creep only)	Control Unit Servo System Load Cell Pulling Head Computer ToronSOFT Laser Printer Extensometer Spares
Power Supply	Standard optional voltages 3Phase, 380V AC, 50-60 Hz. Power must be free of spikes and surges exceeding 10% of the nominal voltage. Power supply system is completely customizable
Operating Temperature	-40 to +66°C (-40 to +150°F)
Humidity Range	10% to 90% non-condensing
Accessories for TT-HTTM-100 (Creep Type)
Power-off Protection System
UPS	25kW, Retain 10min after power-off
Power Generating Set	Diesel Power Generating Set
Climate Chambers
Temperature Setting Range	10 to 35°C
Temperature Fluctuation	≤ 2°C/h
