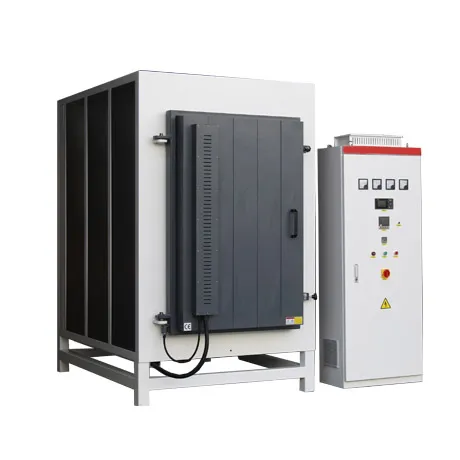

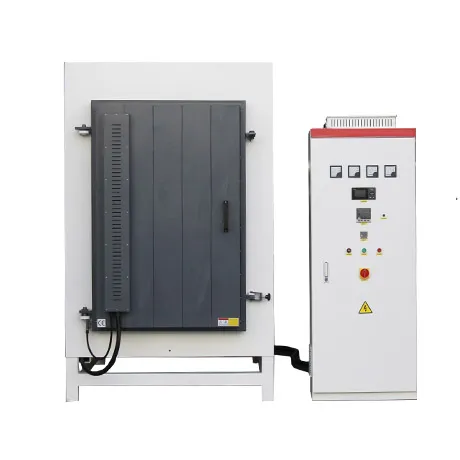

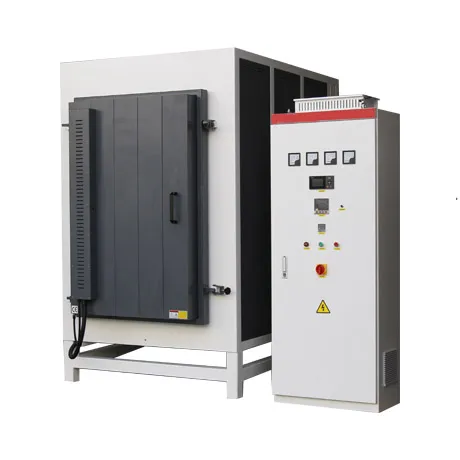

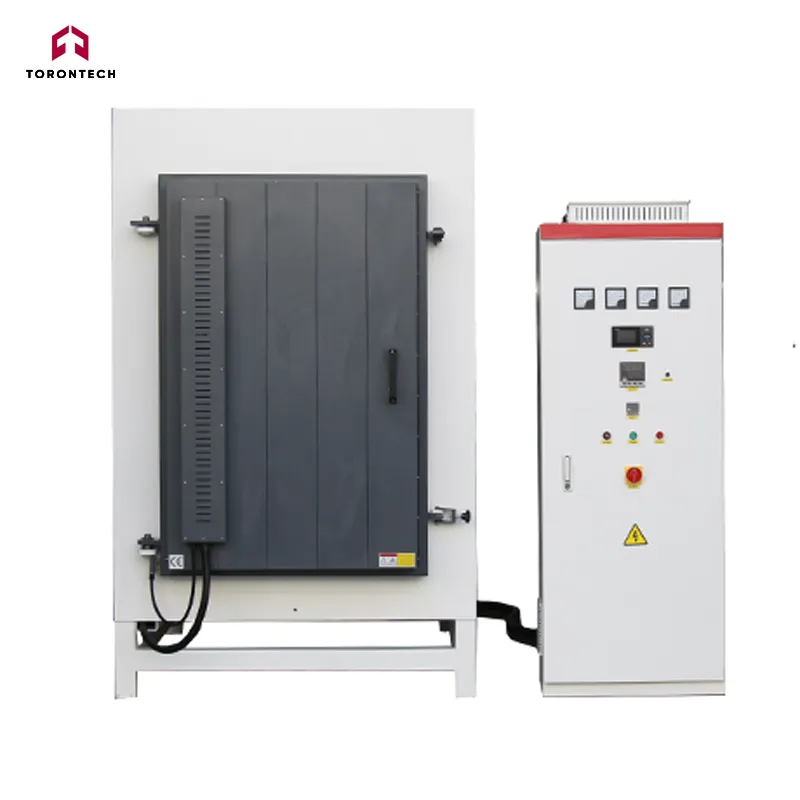

Industrial Furnace – TT-IF-1000-1200A

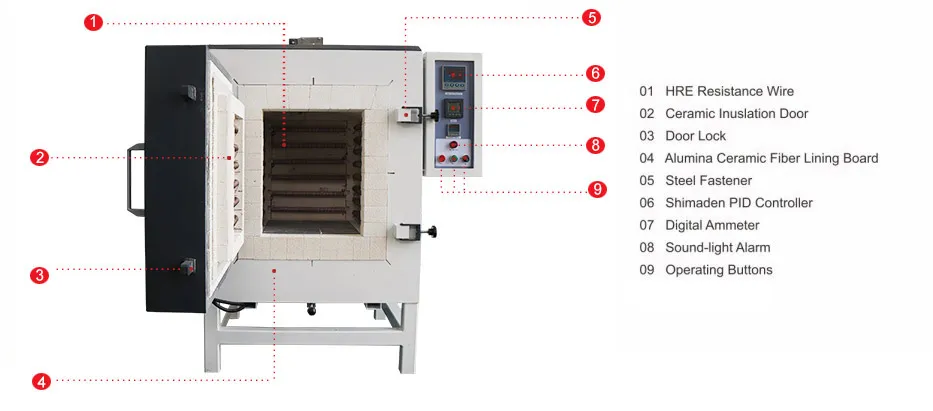

Furnace Shell

• The shell is constructed from Q235 low-carbon steel with an electrostatically resistant, corrosion-protected surface.
• Its sturdy metal frame ensures structural integrity while maintaining a low exterior temperature.
• The furnace features a side-opening door with a fixed left hinge for convenient operation.

Refractory Lining

• The furnace uses a multi-layer insulation system with a double layer of lightweight refractory bricks. This design provides a robust structure, efficient thermal retention, and low energy consumption—free of asbestos.

Heating System

• High-grade HRE spiral resistance wire elements are mounted on ceramic support tubes, delivering efficient, radiant heat throughout the chamber for extended performance.
• Heating is distributed on three sides—left, right, and bottom—to ensure consistent temperature uniformity.
• A silicon carbide base plate shields the bottom heating element, offering strong mechanical durability, excellent thermal conductivity, and stable horizontal load support.

Temperature Control Panel

• PID control with SCR output delivers precise temperature management.
• Equipped with an international-standard N-type nickel-chromium-silicon thermocouple, supporting a temperature range of 0–1300°C and ensuring long-term reliability.
• Safety power cutoff activates automatically when the furnace door is opened.

Program Controller

• Advanced controller supports a wide range of process requirements.
• User-friendly interface allows flexible, intuitive programming.
• Stores up to 30 programmable segments for a single heating curve.
• Built-in over-temperature and fault alarms with automatic safety shutoff.
• Optional features include manual air intake and automated clamshell exhaust.
• An optional rapid cooling unit enables controlled air cooling of the chamber to below 400°C.
