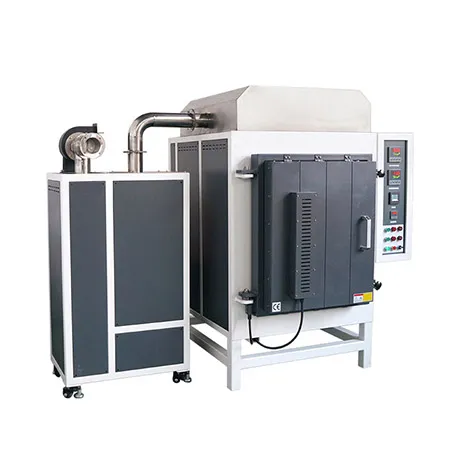

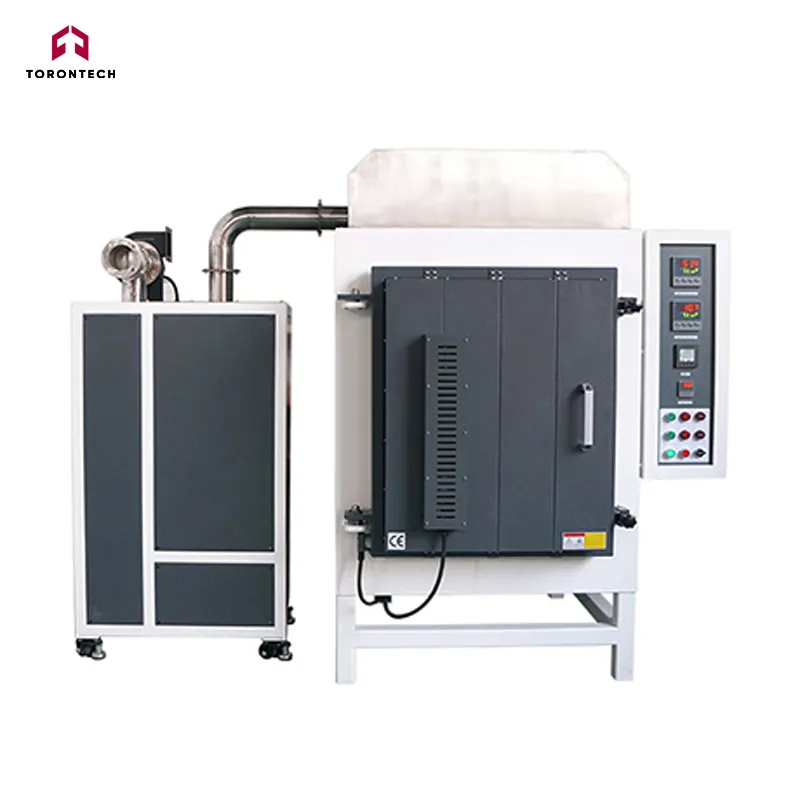

Industrial Furnace – TT-IF-150-1200A

Furnace Shell

• Constructed from Q235 low-carbon steel with an electrostatic, corrosion-resistant finish
• Reinforced metal frame ensures durability and maintains low surface temperatures

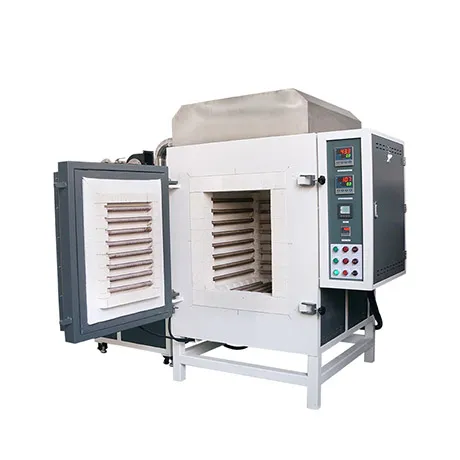

• Side-opening door design with fixed left hinge for easy operation

Refractory

• Multi-layer thermal insulation design
• Double-layer lightweight refractory brick lining, tightly stacked and interlocked for strength
• Asbestos-free design with low heat loss and reduced energy consumption

Heating System

• Premium HRE spiral resistance wire heating elements, mounted on ceramic support tubes, allow free radiant heating inside the chamber—efficient and long-lasting
• Three-sided heating (left, right, and bottom) ensures excellent temperature uniformity
• Silicon carbide base plate protects bottom heating elements, offering strong mechanical support, good thermal conductivity, and horizontal load-bearing capability

Temperature Control Panel

• PID control with SCR output for precise temperature regulation
• N-type nickel-chromium-silicon thermocouple (0–1300°C), built to international standards for extended use
• Safety power cutoff switch activated by furnace door opening

Program Controller

• Advanced controller supports complex heat treatment cycles
• Intuitive interface allows easy, flexible programming
• Up to 30 programmable segments for single temperature curve execution
• Built-in over-temperature and fault alarms with automatic safety functions
• Optional manual air intake and automated exhaust vent (clamshell type)
• Optional rapid cooling system for controlled cooling below 400°C within the furnace
