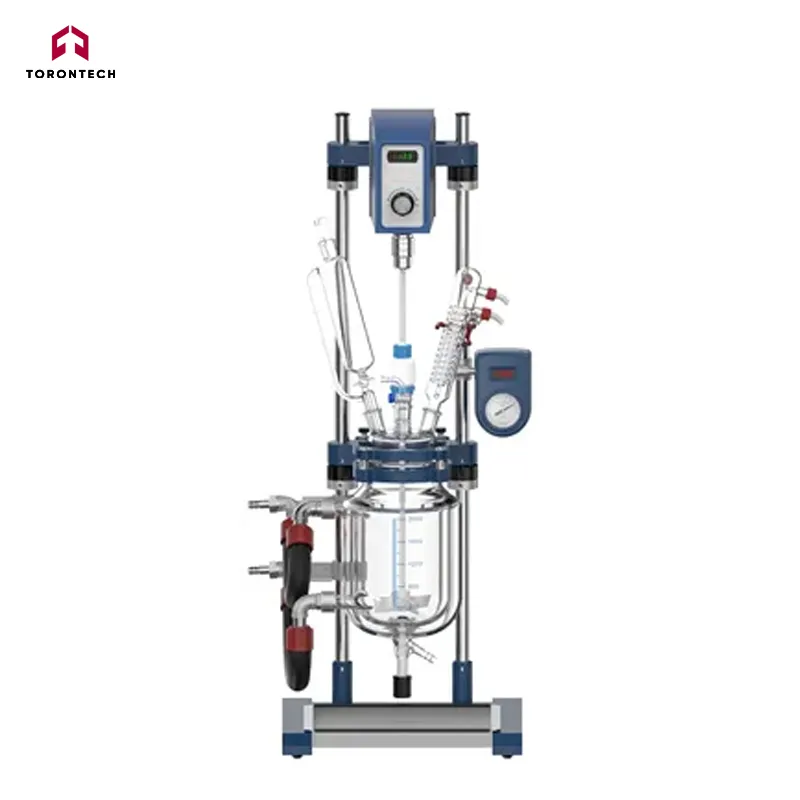

Jacketed Glass Reactor
Jacketed Glass Reactor is primarily used for experiments like material synthesis, distillation, and concentration. Its double-layer design allows temperature control by circulating a liquid of the desired temperature through the jacket.

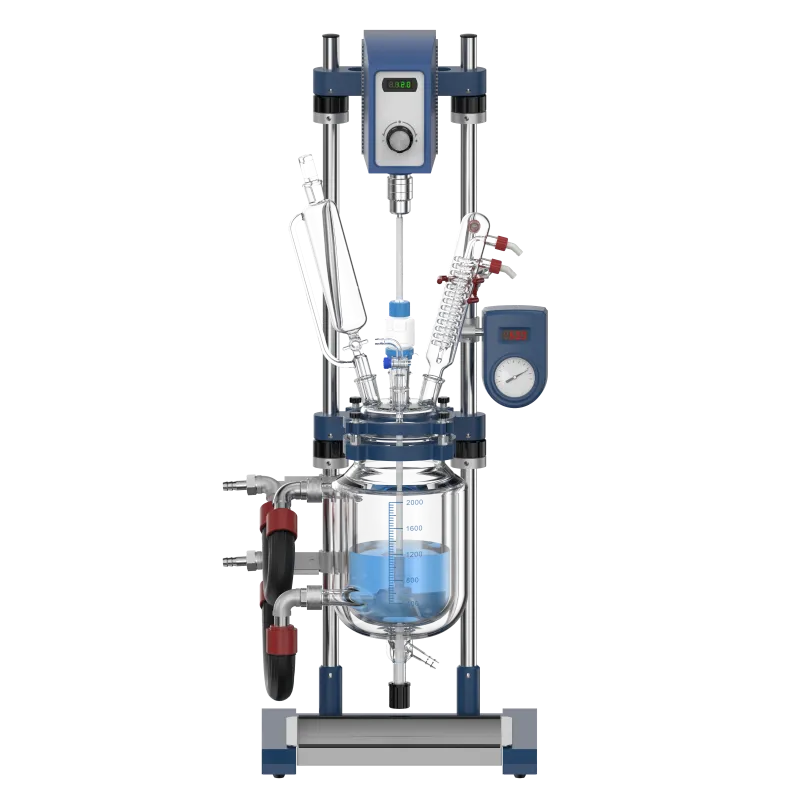

GR-1 / GR-2 / GR-3

GR-5

5Ex

GR-10

GR-10Ex

GR-20 / 30

GR-20Ex 30Ex

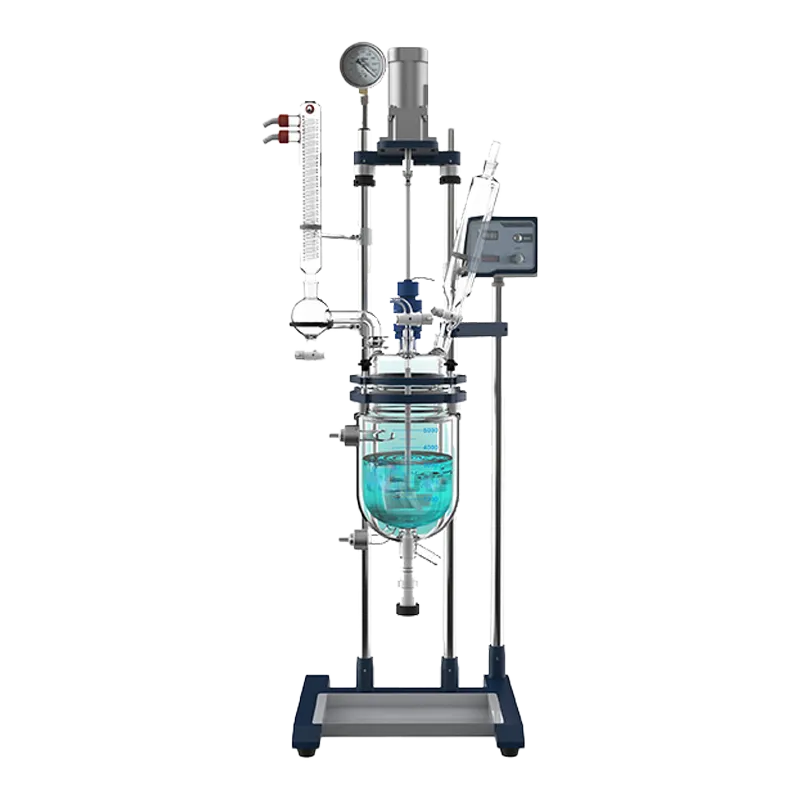

GR-50

GR-50Ex

GR-100

GR-100Ex

GRF-100

GRF-100Ex
- Made from 3.3 borosilicate glass, offering exceptional physical and chemical durability.
- Suitable for a wide temperature range, from high (200°C) to low (-80°C).
- Features excellent sealing, achieving a vacuum level of 0.095 MPa.
- Designed to handle pressures from -0.1 MPa to normal atmospheric pressure.
- Equipped with a PTFE plug and discharge valve for reliable operation.
- Includes insulated hoses to minimize damage to the glass vessel during external pipe connections.
- Customizable structures and configurations to meet specific process requirements.
- Optional filter reactors available, tailored to customer needs.
- A bottom receiving tray can be added to collect drippings during operation.
Model | GR-1 | GR-2 | GR-3 | GR-5 | GR-5Ex |
---|---|---|---|---|---|
Glass material | 3.3 borosilicate glass | ||||
Glass vessel volume | 1L | 2L | 3L | 5L | |
Glass vessel flange | Φ105mm | Φ170mm | |||
OD of glass vessel opening | Φ150mm | Φ215mm | |||
ID of bottom valve | Φ10mm | Φ15mm | |||
Jacket interface | 25# | 35# | |||
Allowable pressure of jacket interface | ≤0.03MPa | ||||
Liquid inlet/outlet circulation hose interface | Rc1/2 and Rc3/4 | Rc3/4 | |||
No. of glass vessel lid openings | 5 | ||||
Center opening of glass vessel lid | 24/40 | 50# | |||
Side openings of glass vessel lid | 24/40×3, 19/26 | 24/29×2, 29/32, S35 | |||
Sealing gasket of glass vessel lid | Φ148*Φ105*3 | Φ212*Φ168*3 | |||
Stirring speed | 40-500rpm | 50-500rpm | |||
Motor power | Output power 50W | 90W | 180W | ||
Support parts for stirrer | PTFE+PEED+Glass | PTFE | |||
Dripping funnel volume | 200ml | 500ml | |||
Interface of dripping funnel | 24/29 | 29/32 | |||
Condensation area of condenser | 0.025m² | 0.045m² | |||
Interface of condenser | 24/29 | 29/32 | |||
Receiving bottle | Optional | ||||
Drain port ground clearance | About 100mm | About 400mm | |||
Dimensions | 480W×420D×1100H mm | 480W×480D×1200H mm | 640W×530D×1600H mm | 660W×530D×1600H mm |
Model | GR-10 | GR-10Ex | GR-20 | GR-20Ex | GR-30 | GR-30Ex |
---|---|---|---|---|---|---|
Glass material | 3.3 borosilicate glass | |||||
Glass vessel volume | 10L | 20L | 30L | |||
Glass vessel flange | Φ215mm | |||||
OD of glass vessel opening | Φ265mm | |||||
ID of bottom valve | Φ21mm | |||||
Jacket interface | 35# | |||||
Allowable pressure of jacket interface | <=0.03MPa | |||||
Liquid inlet/outlet circulation hose interface | Rc3/4 | |||||
No. of glass vessel lid openings | 6 | |||||
Center opening of glass vessel lid | 50# | |||||
Side openings of glass vessel lid | S51, S51, 35#, 40/38, 34/35 | |||||
Solid charging port | 80# | |||||
Sealing gasket of glass vessel lid | Φ264*Φ220*3 | |||||
Stirring speed | 50-500rpm | |||||
Motor power | 90W | 180W | 90W | 180W | 90W | 180W |
Support parts for stirrer | PTFE | |||||
Dripping funnel volume | 1000ml | 2000ml | ||||
Interface of dripping funnel | 40/38 | |||||
Condensation area of condenser | 0.234m² | 0.341m² | ||||
Interface of condenser | 40/38 | |||||
Receiving bottle | Optional | |||||
Liquid collection tray | Optional | |||||
Drain port ground clearance | About 330mm | About 360mm | ||||
Dimensions | 825W*665D*1780H mm | 825W*720D*1780H mm | 825W*665D*1960H mm | 825W*720D*1960H mm | 825W*665D*2090H mm | 825W*720D*2090H mm |
Model | GR-50 | GR-50Ex | GR-100 | GR-100Ex |
---|---|---|---|---|
Glass material | 3.3 borosilicate glass | |||
Glass vessel volume | 50L | 100L | ||
Glass vessel flange | Φ215mm | |||
OD of glass vessel opening | Φ265mm | |||
ID of bottom valve | Φ21mm | |||
Jacket interface | 45# | |||
Allowable pressure of jacket interface | <=0.03MPa | |||
Liquid inlet/outlet circulation hose interface | Rc3/4 | |||
No. of glass vessel lid openings | 6 | 7 | ||
Center opening of glass vessel lid | 50# | |||
Side openings of glass vessel lid | S51, 35#, 40/38, 34/35 | S51, 35#, 40/38, 34/35*2 | ||
Solid charging port | 80# | 95# | ||
Sealing gasket of glass vessel lid | Φ264*Φ220*3 | Φ338*Φ294*3 | ||
Stirring speed | 50-500rpm | |||
Motor power | 140W | 180W | 250W | 370W |
Support parts for stirrer | PTFE | |||
Dripping funnel volume | 2000ml | 10000ml | ||
Interface of dripping funnel | 40/38 | Φ12.5 | ||
Condensation area of condenser | 0.429m2 | 0.954m2 | ||
Interface of condenser | 40/38 | |||
Receiving bottle | Optional | 20000ml | ||
Liquid collection tray | Optional | |||
Drain port ground clearance | About 315mm | About 340mm | ||
Dimensions | 825W*665D*2130H mm | 825W*720D*2130H mm | 1160W*780D*2400H mm | 1160W*780D*2400H mm |
Model | GRF-100 | GRF-100Ex | GRF-150 | GRF-150Ex |
---|---|---|---|---|
Glass material | 3.3 borosilicate glass | |||
Glass vessel volume | 100L | 150L | ||
Glass vessel flange | Φ285mm | |||
OD of glass vessel opening | Φ338mm | |||
ID of bottom valve | Φ21mm | Φ40mm | ||
Jacket interface | 45# | |||
Allowable pressure of jacket interface | <=0.03MPa | |||
Liquid inlet/outlet circulation hose interface | Rc3/4 | |||
No. of glass vessel lid openings | 7 | |||
Center opening of glass vessel lid | 60# | |||
Side openings of glass vessel lid | S51, 35#, 40/38, 34/35*2 | |||
Solid charging port | 95# | |||
Sealing gasket of glass vessel lid | Φ338*Φ294*3 | |||
Stirring speed | 50-500rpm | |||
Motor power | 250W | 370W | 750W | |
Support parts for stirrer | PTFE | |||
Dripping funnel volume | 10000ml | |||
Interface of dripping funnel | Φ12.5 | |||
Condensation area of condenser | 0.954m2 | 1.274m2 | ||
Interface of condenser | 40/38 | 80# | ||
Receiving bottle | 20000ml | |||
Liquid collection tray | Standard | |||
Drain port ground clearance | About 380mm | About 370mm | ||
Dimensions | 1250W*1000D*2400H mm | 1250W*1060D*2800H mm |
