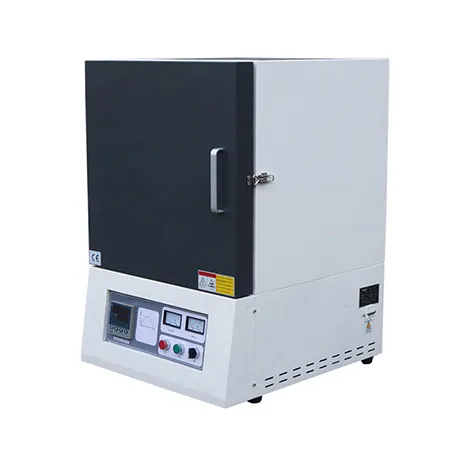

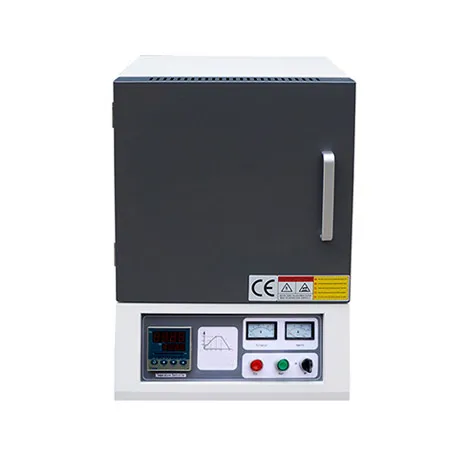

Muffle Furnace TT-MF-8-1800
Laboratory Muffle Furnace TT-MF-8-1800 is designed for high-temperature heat treatment processes such as sintering ceramic materials, nanomaterials, semiconductors, powder metallurgy, and other advanced materials. It is widely used in universities, research institutes, manufacturing facilities, and sectors including petrochemical and aerospace.

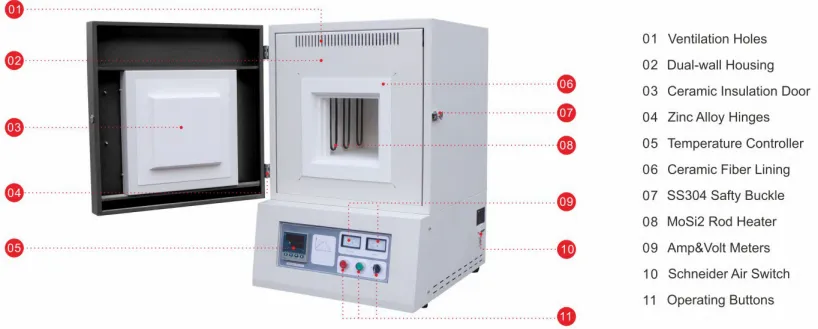

Muffle Furnace TT-MF-8-1800 Features
Furnace Shell
- Constructed from Q235 low-carbon steel, the shell features an electrostatic-resistant, corrosion-resistant surface.
- Its robust double-layer metal frame helps maintain a low external temperature.

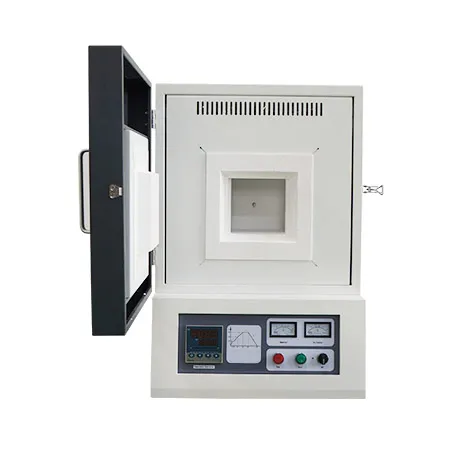

- The side-opening door swings to the right for easy access and operation.
Refractory Material
- The multi-layer insulation system is made of lightweight alumina ceramic fiber and high-grade insulation board.
- It is asbestos-free, delivers minimal heat loss, and promotes energy efficiency.
Heating System
- Equipped with premium MoSi₂ heating elements securely mounted on both sides of the chamber.
- This free-radiation design ensures energy-efficient, even heating and long operational life.
- Dual-side heating (left and right) enhances temperature uniformity inside the furnace.
- Custom models are available with maximum temperatures of 1750°C or 1800°C—ideal for ceramic sintering applications.
Temperature Control Panel
- Features PID and SCR control for precise temperature regulation.
- Uses a B-type platinum-rhodium thermocouple (temperature range: 50–1800°C) designed for longevity.
- A built-in safety switch cuts power automatically when the door is opened.
Program Controller
- Advanced controller meets complex processing needs
- Intuitive interface for easy programming
- Supports up to 30 programmable segments
- Includes over-temperature and fault alarms with automatic protection functions
|
Model |
TT-MF-1-1800 |
TT-MF-3-1800 |
TT-MF-8-1800 |
TT-MF-12-1800 |
TT-MF-20-1800 |
TT-MF-36-1800 |
TT-MF-45-1800 |
|
Chamber size （W xD xH）mm |
100 x120x100 |
150 x150x150 |
200x200x200 |
200x300x200 |
250 x320x250 |
300x400x300 |
300 x500x300 |
|
Outer size （W xD xH）mm |
383 x432x660 |
510x560x870 |
600x620x920 |
600x693x920 |
610 x730x970 |
700x840x1500 |
700x940x1500 |
|
Max temperature |
1800℃ |
||||||
|
Working temperature |
1700℃ |
||||||
|
Voltage |
220V/2KW (110V is also available) |
220V/4KW (110V is also available) |
220V/5KW (110V is also available) |
220V/6KW (110V is also available) |
220V/7KW (110V is also available) |
380V/15KW |
380V/18KW |
|
Heating element |
MoSi2 rod |
||||||
|
Chamber material |
Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration |
||||||
|
Temp.Precision |
±1℃ |
||||||
|
Termocouple |
B Type termocouple |
||||||
|
Temperature controller |
Intelligent microcomputer PID temperature control instrument, SCR/SSR control, PID parameter self-tuning function; programmable 32 time periods, program heating, program heat preservation, program cooling |
||||||
|
Heating rate |
1-15℃/min free adjustment |
||||||
|
Furnace structure |
Furnace temperature control integrated structure |
||||||
|
Equipment protection |
Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically |
||||||
|
Safety protection |
The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators |
||||||
|
Quality certificate |
ISO9001 CE SGS TUV |
||||||
|
Optional |
1. Optional exhaust chimney for evacuation of volatile substances 2. Optional corundum crucible, furnace floor, shed board and other kiln furniture 3. Optional material recorder for online recording of temperature curves |
||||||
