Metallurgical microscopy gives you a clear view into the hidden world of metal structures. Whether you’re inspecting grain boundaries, identifying inclusions, or conducting failure analysis, this technique offers a reliable way to understand the material beneath the surface. But how do you choose the right microscope and imaging method for your task?
In this article, you’ll explore different types of metallurgical microscopes, common imaging techniques, and key considerations when selecting the right system. We’ll also address the most frequent questions people ask about metallurgical microscopy and offer practical advice to improve your analysis process.
What Is Metallurgical Microscopy?
Metallurgical microscopy refers to observing opaque materials like metals using reflected light instead of transmitted light. Unlike biological microscopes that shine light through a transparent sample, metallurgical microscopes illuminate from above, reflecting off the specimen’s surface.
This allows you to inspect the microstructure of metals, ceramics, composites, and coatings. Whether you’re analyzing welds, examining heat treatment results, or checking for defects, metallurgical microscopy supports accurate and repeatable inspections.
Common Metallurgical Microscope Types
Metallurgical microscopes are designed to help you examine opaque materials like metals, ceramics, and composites with reflected light. Unlike biological microscopes, which illuminate from below, these systems light the sample from above, revealing fine details on polished or irregular surfaces. Your choice of microscope depends on sample size, location, and inspection goals. Here’s a guide to help you pick the right one for your needs:

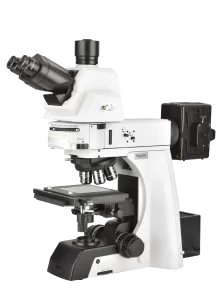

1. Upright Metallurgical Microscopes
These are the most common type found in labs. The objective lens and light source are positioned above the sample. This setup is great for small or medium-sized specimens mounted on slides or metallographic mounts. If you’re performing routine quality control or metallographic research, this is often the best starting point.

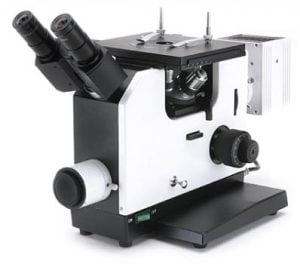

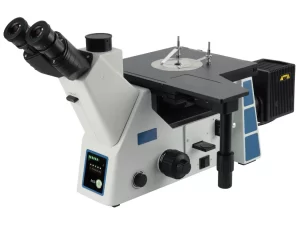

2. Inverted Metallurgical Microscopes
With the objective lens placed beneath the stage, you can inspect larger, heavier parts without sectioning. You’ll find this design useful in automotive, aerospace, and industrial settings where examining full components or welded assemblies is important.
3. Semiconductor Metallurgical Microscopes
These are either upright or inverted systems built with extra-large stages. They’re tailored for inspecting wafers or other large, flat specimens in the semiconductor or electronics industries. If you work with thin films or need ultra-stable imaging, this configuration may suit your workflow.

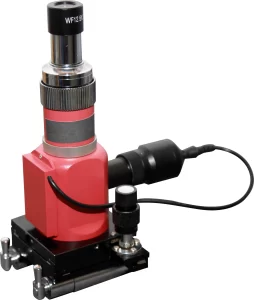

4. Portable and Field Microscopes
Sometimes, you need to bring the microscope to the material—not the other way around. Portable units allow on-site inspections in remote or production environments. They’re lightweight, easy to set up, and essential for tasks like weld inspection or field failure analysis.
5. Specialized Configurations
-
Polarizing Microscopes: Use polarized light to reveal stress patterns or crystal orientation—handy when working with minerals or anisotropic metals.
-
Darkfield, Brightfield, and DIC Microscopes: Each mode enhances contrast differently, allowing you to observe surface defects, grain boundaries, or microstructural features with better clarity.
-
Acoustic or Ultrasonic Microscopes: Designed for non-destructive internal inspection, these detect cracks, voids, or delaminations inside the sample.
Each type brings its strengths to different applications. If you’re unsure where to start, you can explore a full range of configurations and find what suits you best on our metallurgical microscopes product page.

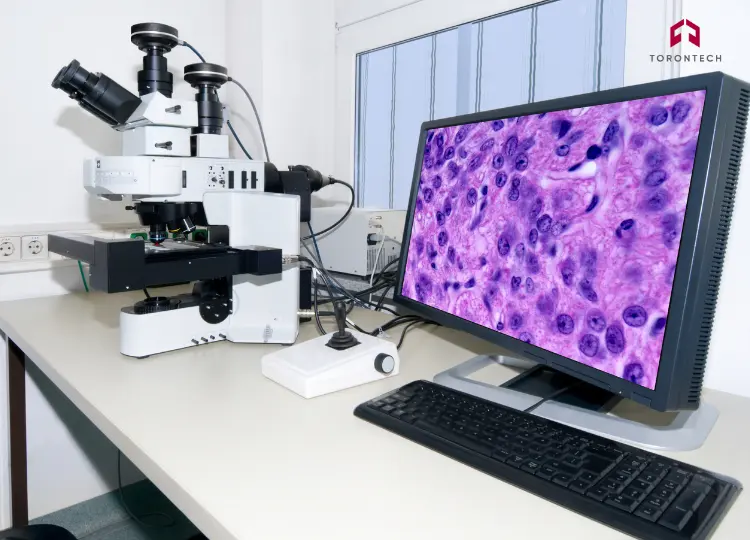

Key Imaging Techniques & Modes
When you’re analyzing materials under a metallurgical microscope, the imaging mode you choose makes a big difference. Each technique highlights different aspects of the microstructure—whether you’re checking for fine grain boundaries or looking at larger surface defects. Here’s a breakdown of the main methods and when you might use them.
1. Brightfield and Darkfield Imaging
Brightfield is your go-to mode for general inspections. It reflects light directly off the sample’s surface, producing a bright, clear image with good overall visibility. If you’re doing routine quality checks or looking at polished sections, this is typically your starting point.
Darkfield, on the other hand, uses angled lighting. It only captures scattered light, making scratches, pits, and small inclusions stand out sharply against a dark background. It’s especially useful when surface imperfections are subtle and hard to spot with standard illumination.
2. Polarized Light and DIC (Nomarski)
Polarized light helps you see features in anisotropic materials, like stress lines or crystal orientations. When you’re working with non-cubic crystals or need to assess grain direction, this mode gives strong contrast.
DIC (Differential Interference Contrast) adds a 3D-like shading effect, which brings out very slight height differences on the surface. It’s particularly helpful for visualizing etching patterns, fine grain edges, or minor deformation that wouldn’t be visible with brightfield alone.
3. Micrographic and Macrographic Imaging
Micrographic imaging captures medium to high magnification views of grain structures, phases, or internal defects. This is where you dive deep into metallurgical analysis for R&D or detailed documentation.
Macrographic imaging uses low magnification (under 25x) to give you a broad view of features like porosity, segregation, or surface texture. If you’re evaluating casting quality or general processing trends, this mode works well.
4. 3D Profiling and Digital Stitching
Modern systems offer 3D profiling tools that measure height, surface roughness, or layer thickness across uneven samples. You can generate detailed surface maps, which are valuable for understanding wear, coating thickness, or mechanical failures.
Digital stitching automatically combines multiple images into one seamless view. This is perfect when your sample is too large to capture in a single frame or when you’re working with varying surface elevations. It also saves time and reduces operator strain during inspections.
5. Digital Imaging and Analysis
Many setups now include cameras and software that let you capture, analyze, and document everything digitally. You can measure grain size, compare structures before and after treatment, or generate reports right from your workstation. It’s a smart way to streamline your workflow and maintain consistent results.
How to Choose the Right Microscope
Selecting the right metallurgical microscope depends on what you need it to do. Whether you’re performing routine inspections or conducting complex research, your microscope should match your sample size, imaging goals, and analysis requirements. Here’s how you can narrow down the options effectively.
1. Define Your Application and Sample Type
First, ask yourself: what are you analyzing? If you’re inspecting coins, wafers, or thin metal cross-sections, an upright microscope typically works well. But if your samples are large, heavy, or oddly shaped (like castings or machined parts) an inverted model may be more practical.
Also think about the kind of analysis you’re doing. Are you checking for surface cracks, measuring grain size, or documenting structural defects? Your microscope needs to support the right imaging modes—brightfield, darkfield, polarized light, or DIC—based on these tasks.
2. Consider Stage Size and Working Distance
Larger samples require more stage space and freedom of movement. A boom stand setup might give you the flexibility needed for extra-large or irregular parts. Choose a model that provides mechanical stability so you can scan your sample smoothly and precisely.
3. Manual, Semi-Automated, or Digital Systems
If you’re working on a budget and only need basic visual inspections, a manual microscope might be enough. But for more consistent image quality and faster workflow, semi-automated models are a smart upgrade—they help with focus, lighting, and image capture.
Digital systems go a step further. They often include 3D profiling, automated measurements, and networked image sharing. This is useful if you’re doing advanced research or need detailed documentation for QA reports.
4. Evaluate Imaging Capabilities and Software
A good camera and software combo can take your analysis to the next level. Look for systems that support functions like real-time measurement, grain size analysis, roughness calculations, or 3D surface mapping. Some even generate Excel-compatible reports to streamline documentation.
5. Don’t Forget Brand, Budget, and Support
Imported microscopes may offer sharper optics and higher build quality, but come at a premium. Domestic or mid-range brands can still meet most routine needs effectively. Make sure to choose a supplier that provides reliable customer service, training, and parts support.
If you’re unsure which direction to go, take a look at our current range of metallurgical microscopes designed for everything from basic inspection to high-end material research.
Final Thoughts
Metallurgical microscopy gives you a deeper look at the structure and quality of materials you work with every day. Whether you’re troubleshooting a failure, verifying a heat treatment, or supporting R&D, the right microscope makes your work more precise and efficient.
If you’re thinking about upgrading your current setup or starting fresh, take a moment to explore our metallurgical microscopes. We offer systems tailored to different sample sizes, workflows, and budgets. We are here to help you find the best fit.
