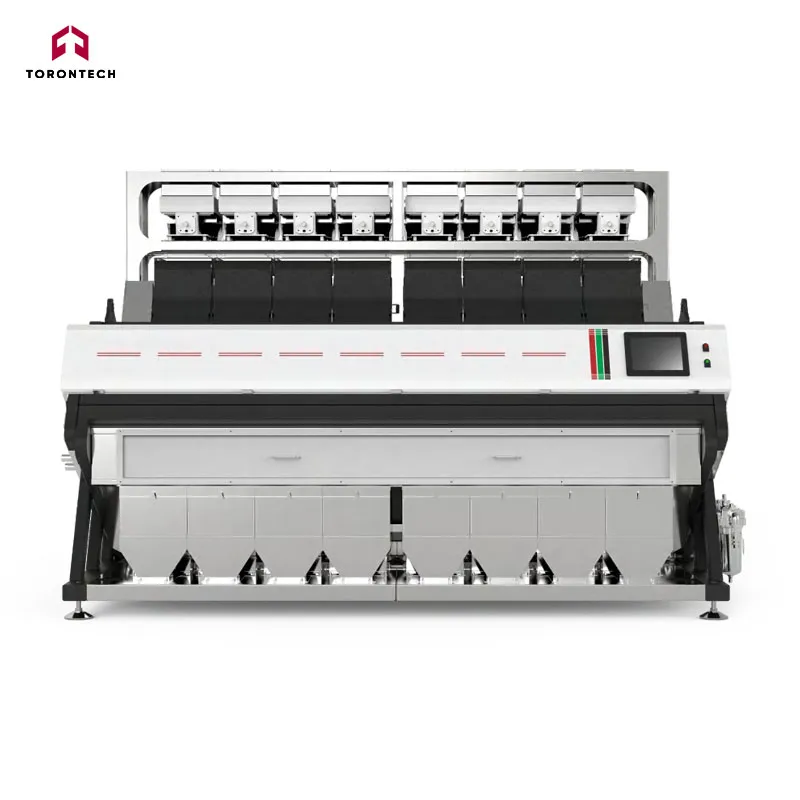

PET Flakes Polymer Sorter ToronGI Series
PET Flakes Polymer Sorter ToronGI Series utilizes advanced NIR technology and high-precision infrared cameras to efficiently sort PET flakes by color and material, ensuring superior recycling quality with high accuracy and throughput.
Main Applications
Our NIR-based ToronGI Series offers the flexibility of visible light technology, allowing simultaneous sorting by color and polymer type.
It can identify and separate non-PET materials from PET flakes, including PVC, PC, HDPE, PP, ABS, Fr, PS, PA, POM, PMMA, PLA, non-ferrous metals, aluminum flakes, wood, rubber, silicone, and other impurities.
The ToronGI polymer sorter is designed to purify high-quality PET flakes, ensuring superior recycling results.
It also supports PET powder processing, effectively removing low-temperature materials like PPSU, TRITAN, and PET-G, as well as opaque materials and impurities.

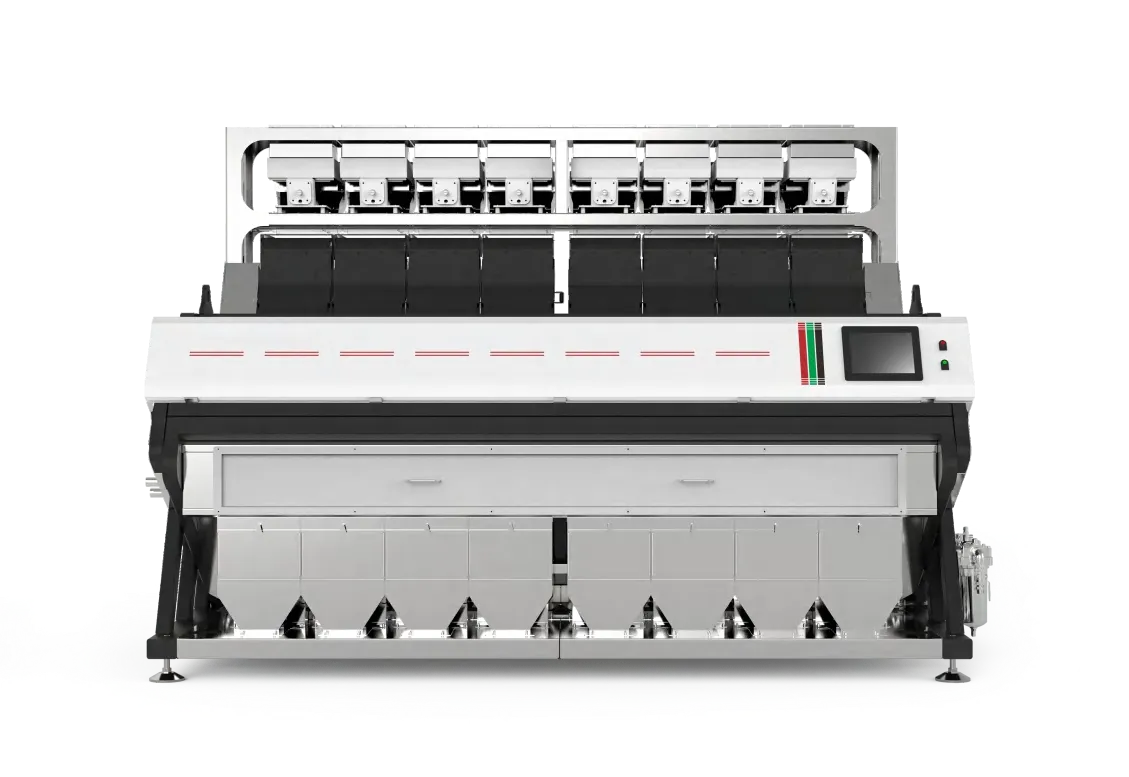

All-in-one Sorting Machine
By combining NIR technology, high-precision multi-spectral infrared cameras, a maintenance-free light source heat dissipation system, and long-life infrared light sources, plastic flakes can be purified by both color and material simultaneously.
High and Stable Throughput
The wide chute, multi-stage feeding system, and anti-blocking material design ensure high throughput feeding and support long-term, unmanned operation, fully meeting your production needs.
Flexible Support
It supports normal sorting, reverse sorting, single sorting, re-sorting, and five-time sorting. With strong versatility, it can be adjusted to fit your specific processing needs.
High Accuracy
High-speed sensors, chips, and "missile guidance" systems ensure sorting accuracy rates of up to 99%.
| Model | ToronGI3/GI*3 | ToronGI4/I*4 | ToronGI5/I*5 | ToronGI6/I*6 | ToronGI7/GI*7 | ToronGI8/GI*8 |
|---|---|---|---|---|---|---|
| Accuracy (%) | >99% | >99% | >99% | >99% | >99% | >99% |
| Throughput (T/H) | 0.6-2.3 | 0.8-3 | 0.8-3.3 | 1-4 | 1.8-5.3 | 2-6 |
| Air Consumption (m³/min) | <1.5 | <2 | <2.5 | <3 | <3.5 | <4 |
| Power (kW) | 3.5 | 3.5 | 5.5 | 5.5 | 6.5 | 6.5 |
| Voltage/Frequency | AC220V/50HZ (110V is also available) | |||||
| Air Pressure (Mpa) | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 |
| Weight (KG) | 1150/1200 | 1250/1300 | 1750/1800 | 1850/1900 | 2200/2250 | 2300/2350 |
| Dimension (mm) (LxWxH) | 2150 x 1928 x 2385 | 2150 x 1928 x 2385 | 2825 x 1928 x 2385 | 2825 x 1928 x 2385 | 3518 x 1928 x 2385 | 3518 x 1928 x 2385 |
Note: Parameters listed are for reference only and may vary depending on the application and feed conditions.
