Rotary Hydrogen Reduction Tube Furnace 1200°C - TT-HRTF-150-1200

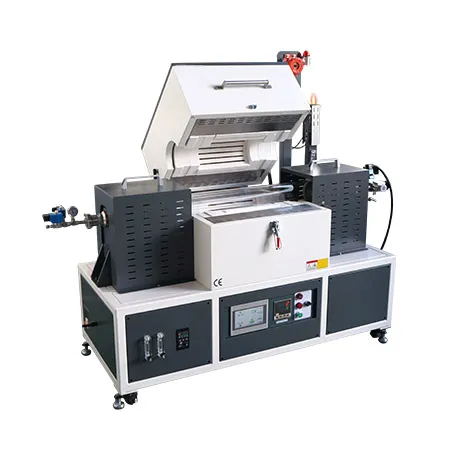

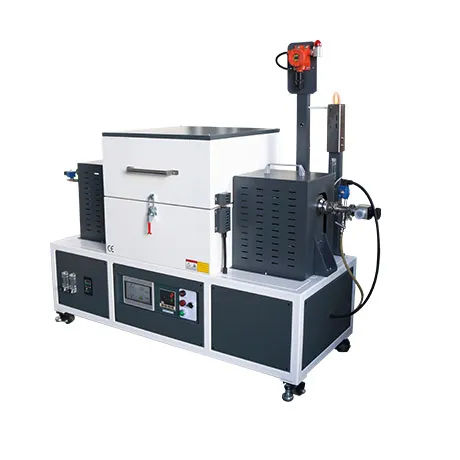

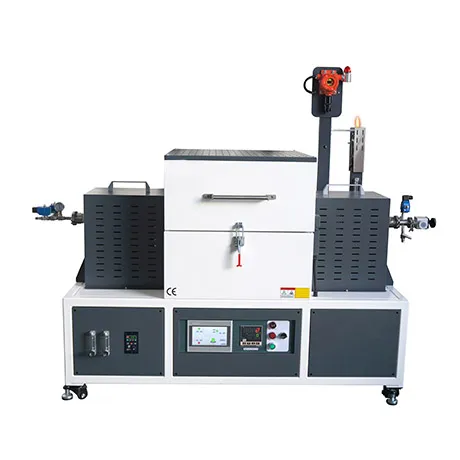

Rotary Hydrogen Reduction Tube Furnace 1200°C - TT-HRTF-150-1200 features a high-efficiency heating system, an automatic rotation mechanism, and a tilting furnace body. The tube rotates 360° with adjustable speed, ensuring an even temperature distribution. The furnace body tilts up to 15°, allowing for convenient loading and unloading of materials.
| Model No. | TT-HRTF-150-1200 |
| Quartz Tube (OD) | Φ150×1200 |
| Heating Zone Length | 600MM |
| Continuous Temperature | 1100℃ |
| Max Temperature | 1200°C |
| Reactor Tube | Quartz Tube |
| Voltage | 380V/12kw |
| Heating Element | High Quality Alloy Resistance Wire (HRE) |
| Thermocouple | N type |
Key Features
Furnace Shell
- Constructed from Q235 low-carbon steel, the shell features a corrosion-resistant, electrostatically coated surface. The durable double-layer metal frame is integrated with a heat-insulating fan system to maintain a low external temperature. The horizontal design and top-loading structure provide user-friendly operation.
Refractory Material
- The furnace features a multi-layer insulation system made of lightweight alumina ceramic fiber and high-grade insulation board backing. It is asbestos-free, ensures minimal heat loss, and supports energy-efficient performance.
Heating System
- Equipped with high-grade HRE spiral resistance wire heating elements, securely embedded on the inner wall for direct thermal radiation heating—resulting in excellent energy efficiency and extended service life.
- Ring-shaped resistance wire heating delivers uniform temperature distribution throughout the chamber.
Temperature Control Panel
- Features advanced controllers designed for demanding thermal processes.
- Supports up to 30 programmable segments for automated temperature profiling.
- Includes over-temperature protection and fault alarms for enhanced safety.
Rotary System
- The furnace tube uses a gear-driven electric motor to rotate 360° at adjustable speeds between 12–20 rpm, ensuring uniform heating of materials inside the tube.
- The furnace body can be tilted electronically, with an adjustable tilt angle to allow smooth loading and unloading.
- Includes a 304 stainless steel sealing flange for creating a vacuum or controlled atmosphere inside the tube.
- Compatible with high-quality quartz, metal, or alumina ceramic tubes to suit various operational requirements.
| Model | TT-HRTF-60-1200Q | TT-HRTF-100-1200Q | TT-HRTF-150-1200Q | TT-HRTF-200-1200Q |
| Reactor Quartz Tube | Φ60×1200mm | Φ100×1200mm | Φ150×1500mm | Φ200×1500mm |
| Heating Zone Length | 440mm | 440mm | 600mm | 600mm |
| Max Temp | 1200℃ | |||
| Continue Temp | 1100℃ | |||
| Heating Element | High quality Alloy Resistance Wire（HRE） | |||
| Chamber Material | Polycrystalline inorganic alumina ceramic fiber materials | |||
| Temp Precision | ±1℃ | |||
| Thermocouple | B-type national standard platinum rhodium thermocouple | |||
| Temp Controller | Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 30 program segments, program temperature rise, program heat preservation, program cooling | |||
| Heating Rate | 1-20℃/min free adjustment | |||
| Furnace Structure | Furnace temperature control integrated structure; double-layer shell, air circulation and heat insulation | |||
| Equipment Protection | Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically | |||
| Safety Protection | The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators | |||
| Furnace Shell | High-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder | |||
| Certification | ISO9001 CE SGS TUV | |||
| The standard configuration | 1. 1 furnace body 2. 1 temperature controller 3. Power cord 3 meters 4. 1 thermocouple 5. 1 manual6. One furnace hook 7. One pair of high temperature gloves 8. Two pipe plugs 9. One set of sealing flange | |||
