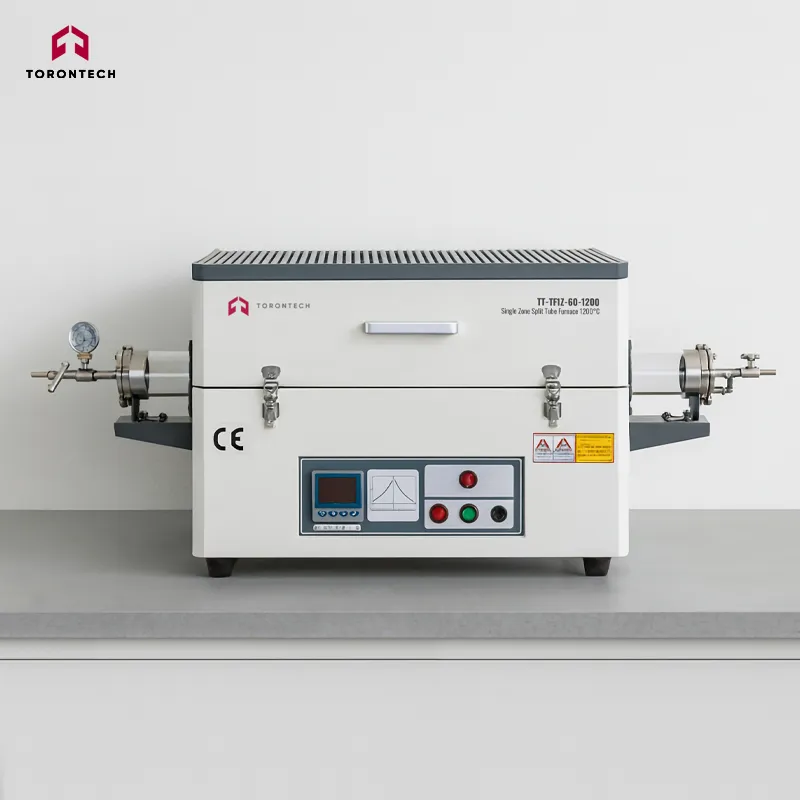

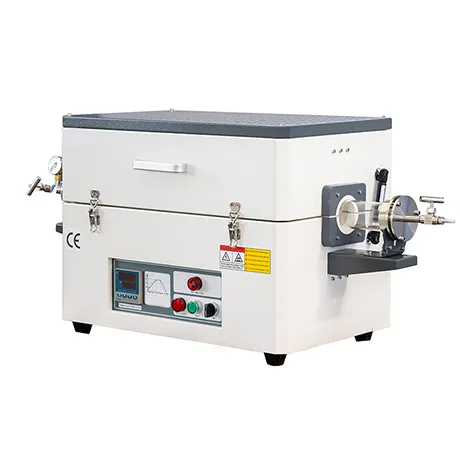

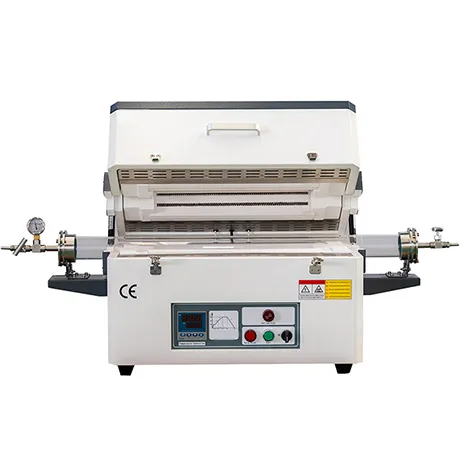

Single Zone Split Tube Furnace 1200°C - TT-TF1Z-60-1200
Single Zone Split Tube Furnace 1200°C - TT-TF1Z-60-1200 is designed for sintering and high-temperature heat treatment of metals, ceramics, nanomaterials, semiconductors, powder metallurgy, and other advanced materials. It is widely used in universities, research centers, industrial facilities, as well as in the petrochemical, aerospace, and related sectors.

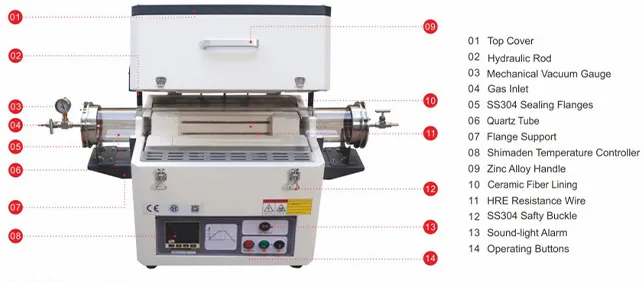

Key Features
Furnace Shell
- Constructed from Q235 low-carbon steel, the furnace shell features a corrosion-resistant, electrostatically coated surface.
- A solid, double-layer metal frame is integrated with a heat-insulating fan structure, maintaining a low external surface temperature.
- Designed for horizontal operation with a top-opening structure, the unit is user-friendly and easy to handle.
Refractory Material
- The furnace uses a multi-layer insulation system composed of lightweight alumina ceramic fiber and premium insulation board.
- Free of asbestos, this design minimizes heat loss and energy consumption.
Heating System
- High-performance HRE spiral resistance wires are securely embedded on the inner surface and heat the chamber via free radiation, offering excellent energy efficiency and durability.
- Ring-type resistance wire heating ensures uniform temperature distribution inside the furnace.
Temperature Control Panel
- Features PID and SSR control for accurate temperature regulation.
- Equipped with a high-grade N-type nickel-chromium-silicon thermocouple with a temperature range of 0–1300°C and extended service life.
- A built-in door switch automatically cuts power when the furnace door is opened, enhancing safety.
Program Controller
- Advanced control system supports complex heat treatment processes.
- Offers intuitive operation and flexible programming with up to 30 segments per program curve.
- Includes over-temperature and fault alarms with automatic safety shutdown.
Vacuum Atmosphere Function
- Features a 304 stainless steel sealing flange for achieving a vacuum or controlled atmosphere within the furnace tube.
- Comes standard with a high-purity quartz glass tube; metal or corundum tubes are also available to suit various applications.
|
Model |
TT-TF1Z-25-1200 |
TT-TF1Z-40-1200 |
TT-TF1Z-60-1200 |
TT-TF1Z-80-1200 |
TT-TF1Z-100-1200 |
TT-TF1Z-120-1200 |
|
|
Tube size |
Φ25 x 600mm |
Φ40 x 1000mm |
Φ60 x 1000mm |
Φ80 x 1000mm |
Φ100 x 1000mm |
Φ120 x 1000mm |
|
|
Max temperature |
1200℃ |
||||||
|
Working temperature |
1100℃ |
||||||
|
Heating size |
200mm |
440mm |
|||||
|
Voltage |
220V/1.8KW (110V is also available) |
220V/1.8KW (110V is also available) |
220V/2.6KW (110V is also available) |
220V/2.6KW (110V is also available) |
220V/2.6KW (110V is also available) |
220V/5KW (110V is also available) |
|
|
Heating element |
HRE alloy resistance wire |
||||||
|
Furnace material |
Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration |
||||||
|
Furnace tube material |
Quartz tube |
||||||
|
Temperature control accuracy |
±1℃ |
||||||
|
Thermocouple |
N type thermocouple |
||||||
|
Temperature control instrument |
Intelligent microcomputer PID temperature control instrument, SCR/SSR control, PID parameter self-tuning function; programmable 30 program segments, program heating, program heat preservation, program cooling |
||||||
|
Heating rate |
1-25℃/min free adjustment |
||||||
|
Furnace structure |
Furnace temperature control integrated structure, furnace opening and closing; double-layer shell, air circulation and heat insulation |
||||||
|
Sealing performance |
Both ends of the furnace tube are equipped with stainless steel metal flanges, matched with high-temperature PTFE gaskets, which can work under vacuum with a vacuum degree of ≤5pa (rotary vane vacuum pump) |
||||||
|
atmosphere performance |
There are air inlets and outlets at both ends of the flange. The pressure gauge is installed on the metal flange. The precision needle valve can adjust the air intake and output, and can be fed with protective gases such as nitrogen, argon, and hydrogen |
||||||
|
equipment protection |
Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically |
||||||
|
safety protection |
The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators |
||||||
|
shell |
High-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder |
||||||
|
Quality Certification |
ISO9001 CE SGS TUV |
||||||
|
Optional accessories |
1. Optional rotary vane vacuum pump (vacuum degree ≤ 5pa) 2. Optional digital vacuum gauge (1.0×105-1.0×10-1pa) 3. Optional float flowmeter (range 60-600ml/min) 4. Optional with quartz boat |
||||||
