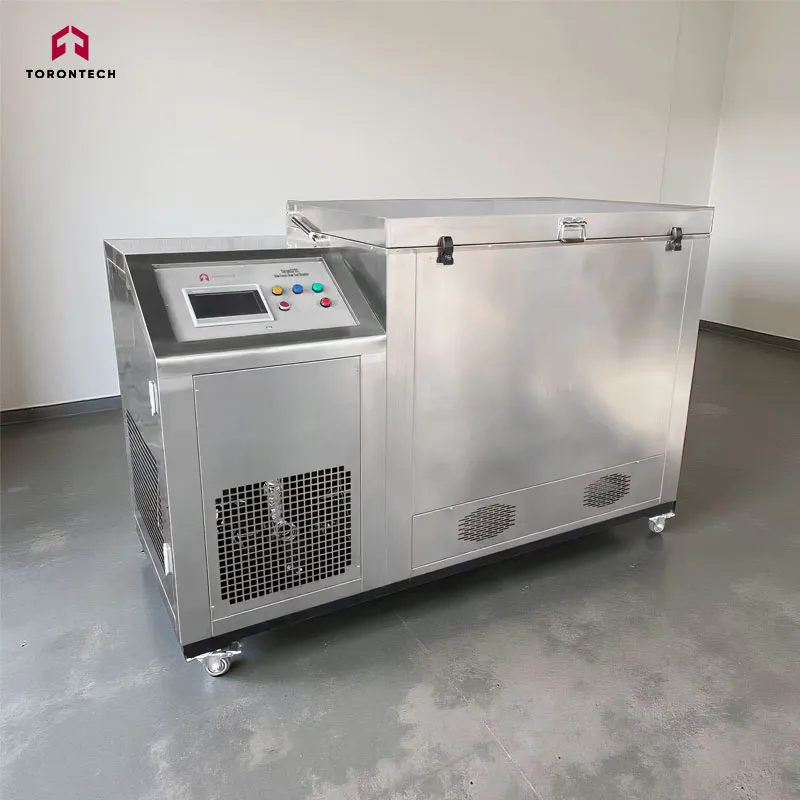

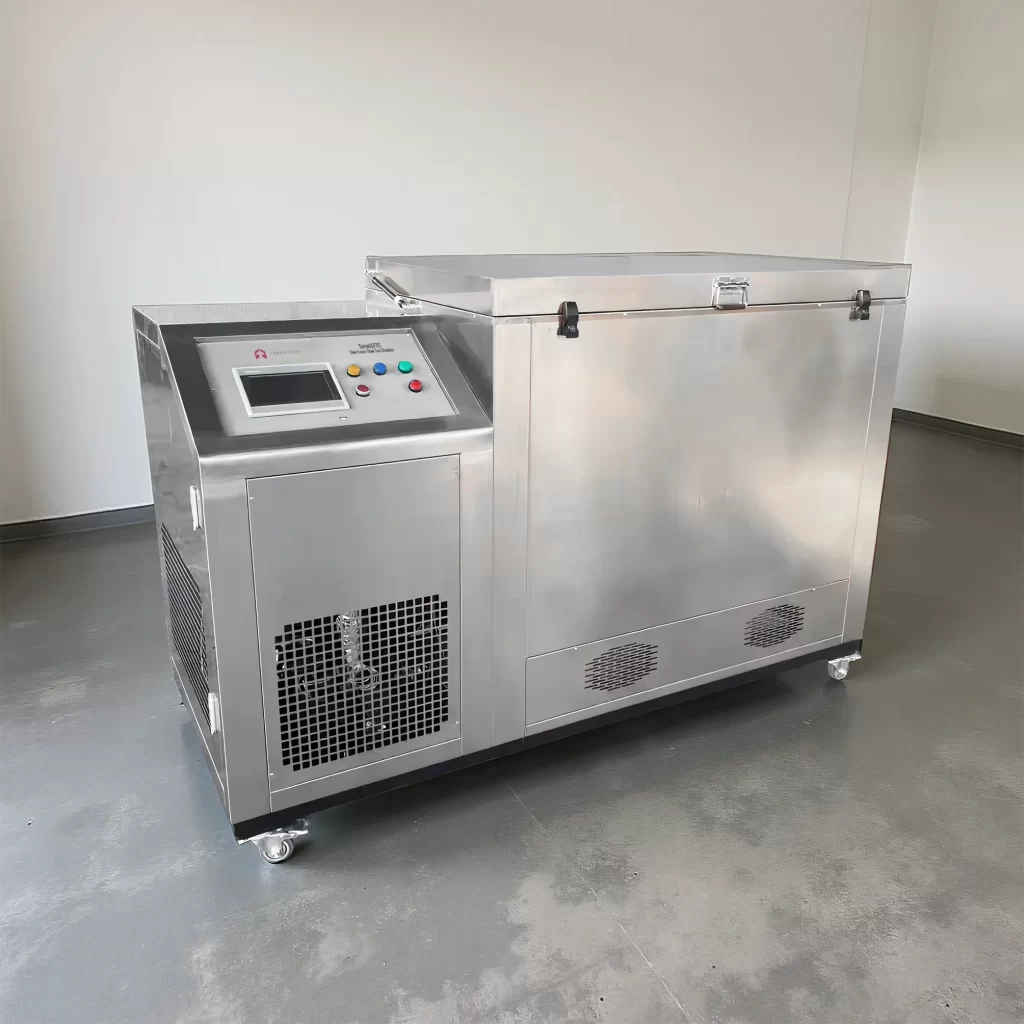

Slow Freeze-Thaw Test Chamber for Concrete Durability Testing
ToronSFTC-100 Slow Freeze-Thaw Test Chamber is a high-performance solution designed to evaluate the long-term durability and freeze-thaw resistance of concrete and masonry materials. Ideal for research institutions, quality control laboratories, and construction material testing centers, the ToronSFTC allows for slow-cycle freeze-thaw testing under controlled environmental conditions.
This next-generation system combines robust stainless steel construction with precise temperature control and an intuitive PLC-based interface, providing a reliable and user-friendly experience for extended cyclic testing applications.
Designed for Durability and Ease of Use
The ToronSFTC Slow Freeze-Thaw Test Chamber is equipped with a stainless steel inner tank and a movable external water reservoir for drying and freeze-thaw testing. Its advanced filtration system ensures clean operation, while the large touchscreen interface offers one-touch control for commonly used test protocols, including freeze-thaw cycles for concrete, red bricks, and ceramics.
The system comes pre-loaded with multiple standard temperature curves and allows for custom test programming, giving you full flexibility for long-term material performance evaluation.
Applications
- Long-term freeze-thaw durability testing of concrete
- Performance evaluation of red bricks and ceramics
- Quality assurance for building and masonry materials
- Research and development in construction material resilience
- Laboratory testing for infrastructure subjected to cold climate conditions
ToronSFTC Slow Freeze-Thaw Test Chamber delivers precision, durability, and ease of use for laboratories performing slow freeze-thaw testing. With its large capacity, user-friendly controls, and intelligent temperature management, it’s the ideal tool for studying material behavior under prolonged freeze-thaw exposure.
Key Features
- Optimized for slow-cycle freeze-thaw testing of concrete, bricks, and building materials
- Large-capacity stainless steel chamber with excellent corrosion resistance
- High-efficiency polyurethane insulation for superior thermal retention
- Microprocessor-controlled PLC system with large color touchscreen
- Quiet, imported low-temperature compressor for stable and efficient operation
- Built-in memory for automatic data recording and temperature curve tracking
- Free PC software for remote monitoring, custom curve creation, and data management
- Environmentally friendly water filtration and storage system with easy maintenance
| Specification | Details |
|---|---|
| Internal Chamber Dimensions | 1100 × 500 × 500 mm |
| Overall Equipment Dimensions | 1800 × 850 × 1300 mm |
| Temperature Range | -35°C to +50°C |
| Temperature Uniformity | ≤ ±1°C within the chamber |
| Cooling Rate | ≤ 20°C per hour |
| Specimen Capacity | Up to 5 wall bricks (190 × 190 × 390 mm) |
| Up to 54 concrete test cubes (100 × 100 × 100 mm) | |
| Up to 60 red bricks | |
| Freezing Time Range | 0–9999 hours (adjustable) |
| Thawing Time Range | 0–9999 hours (adjustable) |
| Cycle Count Range | 0–9999 cycles (adjustable) |
| Temperature Measurement Accuracy | ±1°C |
| Control System | PLC + Touchscreen interface |
| Compressor | Low-temperature compressor with low noise |
| Voltage | 220V (110V available upon request) |
| Weight | 200 kg |
