Ball Mills - Micro Ball Mill GT300

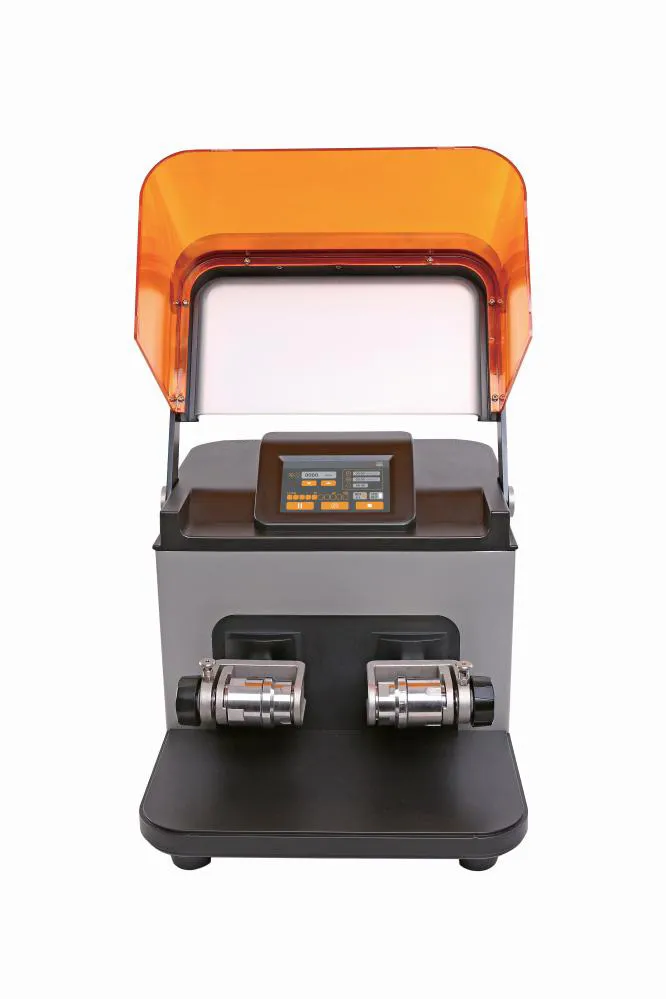

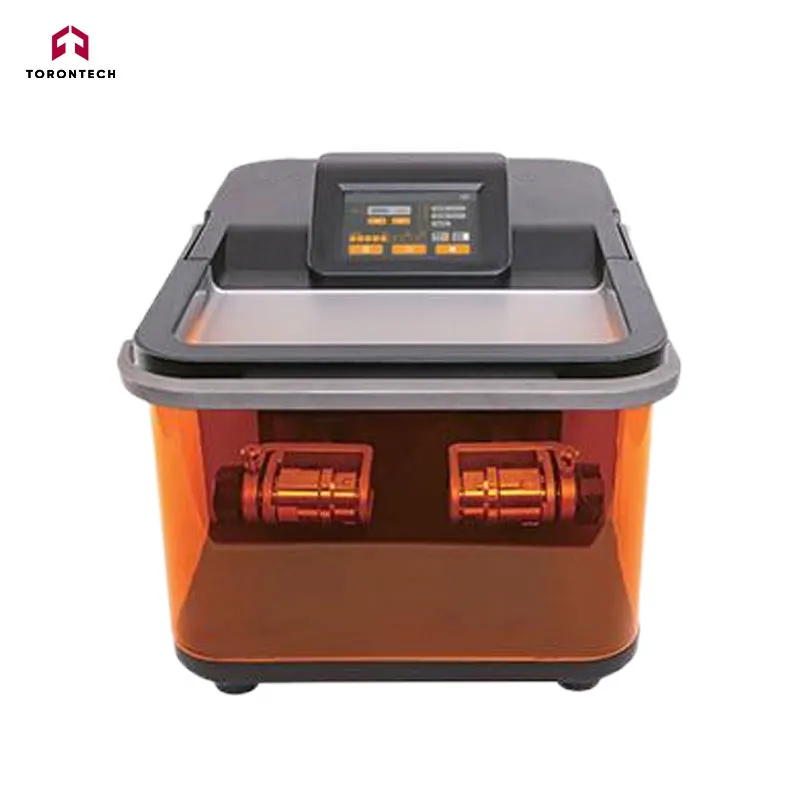

Micro Ball Mill GT300

Micro Ball Mill GT300 is designed for advanced laboratory use. It efficiently handles both small and large sample batches, including plant material, animal tissue, and limited sample quantities in dry, wet, or cryogenic conditions. With the ability to mix and homogenize powders and suspensions in seconds, it is also ideal for breaking down biological cells and extracting DNA, RNA, and proteins.

Sample type:

Hard, soft, elastic and fibrous samples
Typical sample:

Plant root, stem, leaf, grain, seed; human and animal tissue,
viscera, bone, hair; mineral, soil, glass, ceramic, rubber, plastic,
solid waste, electronic waste, paper, textile, chemical, medicine, food.

Application Examples

Before grinding After grinding Parameter
Sample Leaf
Grinding balls 5mm, stainless steel
Reaction vials 2ml
Sample Characteristic Soft, brittle
Time 1 min
Sample Glass silk
Grinding balls 20mm, stainless steel
Grinding jar 35ml, stainless steel
Sample Characteristic Brittle
Time 5 min

Grinding, Mixing, and Cell Disruption

The Micro Ball Mill GT300 is designed for advanced laboratory applications. It processes up to two samples or large batches simultaneously in just 30 seconds, accommodating volumes from 0.2 ml to 50 ml. It is ideal for high-throughput grinding.

Working Principle

The Micro Ball Mill GT300 grinds up to 2 × 96 samples quickly and efficiently within 1–3 minutes. The grinding jars oscillate horizontally at high frequency, generating strong inertia that drives the grinding balls to impact the sample with high energy. This motion ensures thorough grinding and mixing of the material.

Wide range of Accessories

Reaction Vial Adapters

  • Designed for reaction vials.
  • Prevents cross-contamination between samples, ensuring high-throughput processing.
  • Adapters can be placed directly into liquid nitrogen for cryogenic applications.

Versatile Grinding Jar Compatibility

  • Supports various material types with grinding jars up to 50 ml.
  • Suitable for processing soil, minerals, plants, dental materials, and more.

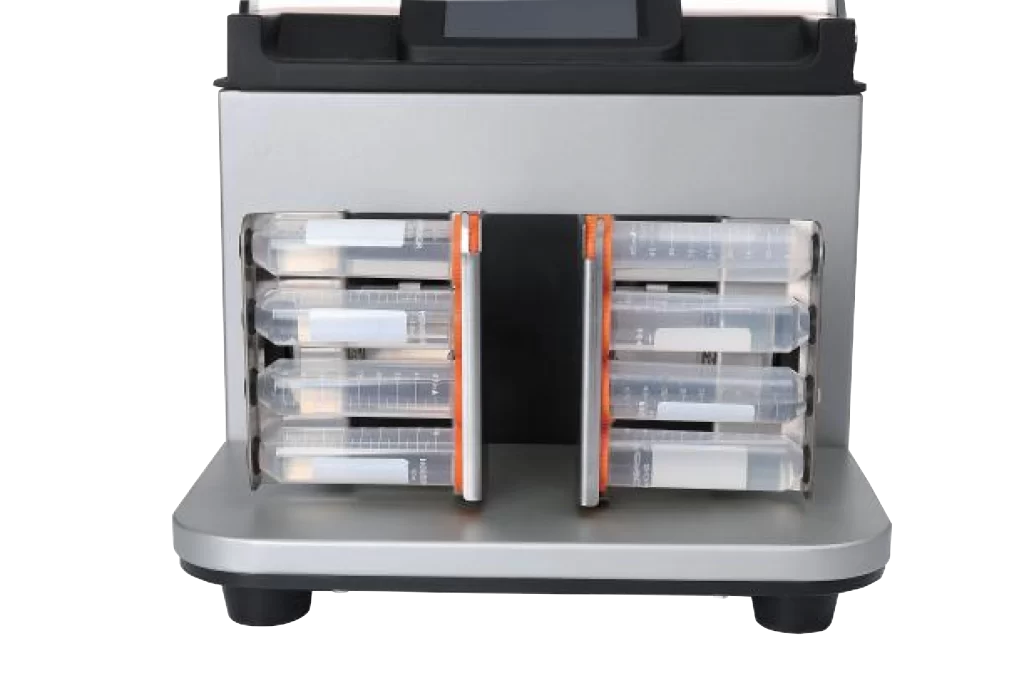

Pesticide Residue Sample Detection

  • Ideal for detecting pesticide residues.
  • 50 ml reaction vials with adapters can process up to 8 samples simultaneously.
  • Complies with QuEChERS requirements.

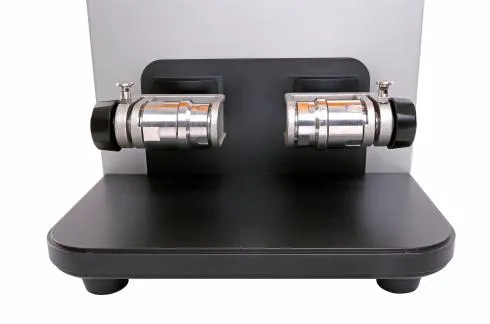

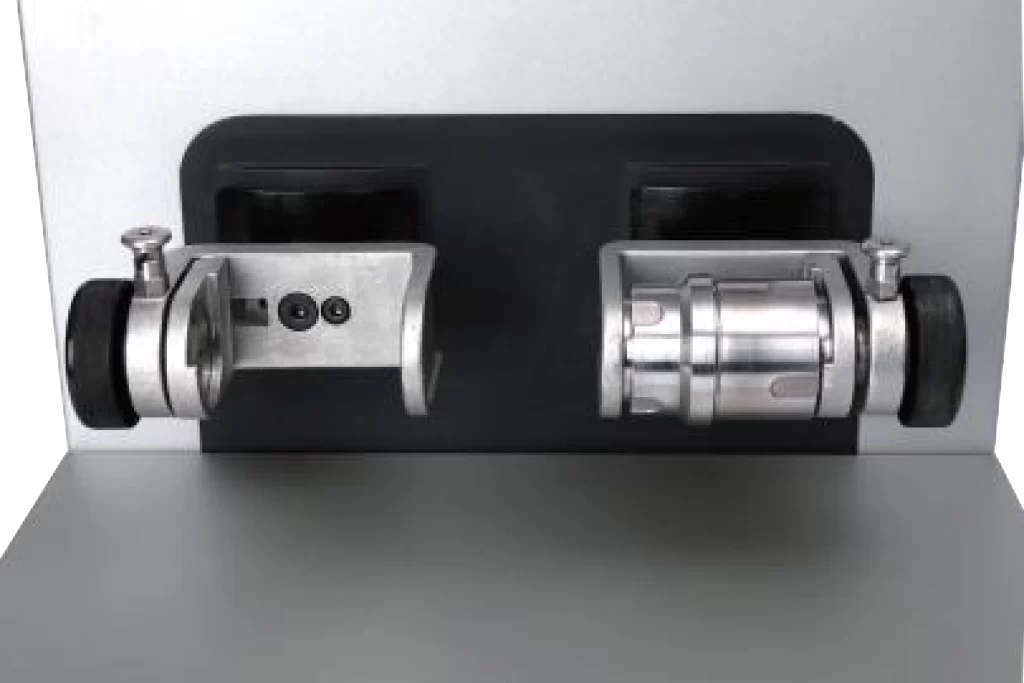

Durable Clamping Device

  • Specially designed cast stainless steel clamping device for strength, durability, and user comfort.
  • Integrated mobile positioning catch enhances the lifespan of grinding parts and the clamping mechanism.

Control Panel

  1. Advanced touch-screen interface for easy program control and grinding parameter adjustments.
  2. Grinding time can be set from 1 second to 99 minutes and 59 seconds, fully digital and adjustable.
  3. Vibrational frequency can be set between 180 to 1800 rpm, digitally controlled and adjustable.

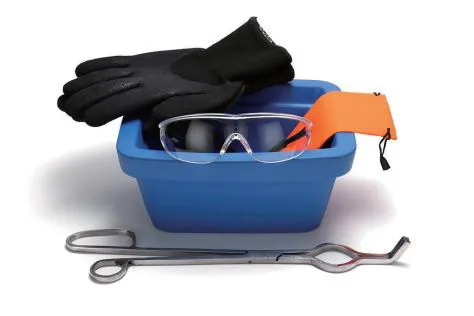

Cryo Kit for Jar (or Adapter) Cooling with Liquid Nitrogen

  1. Includes an insulated heat preservation box, jar clamping device, and eye protection gear.
  2. Recommended for heat-sensitive materials like plastics and rubber—pre-freezing samples and grinding jars with liquid nitrogen enhances processing.
  3. Suitable jars for cryogenic grinding are made from Teflon or stainless steel.

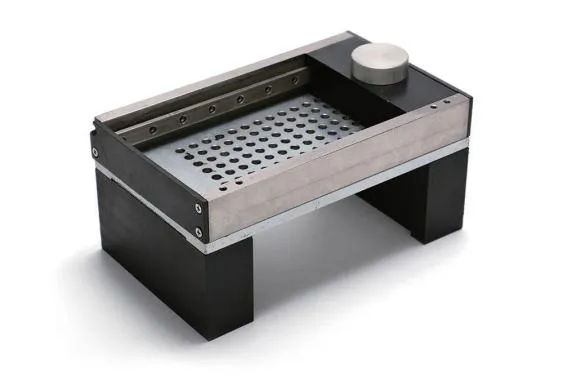

Bead Dispensers

  1. Designed for 96-hole deep well plates.
  2. Available in 3mm and 5mm bead sizes.

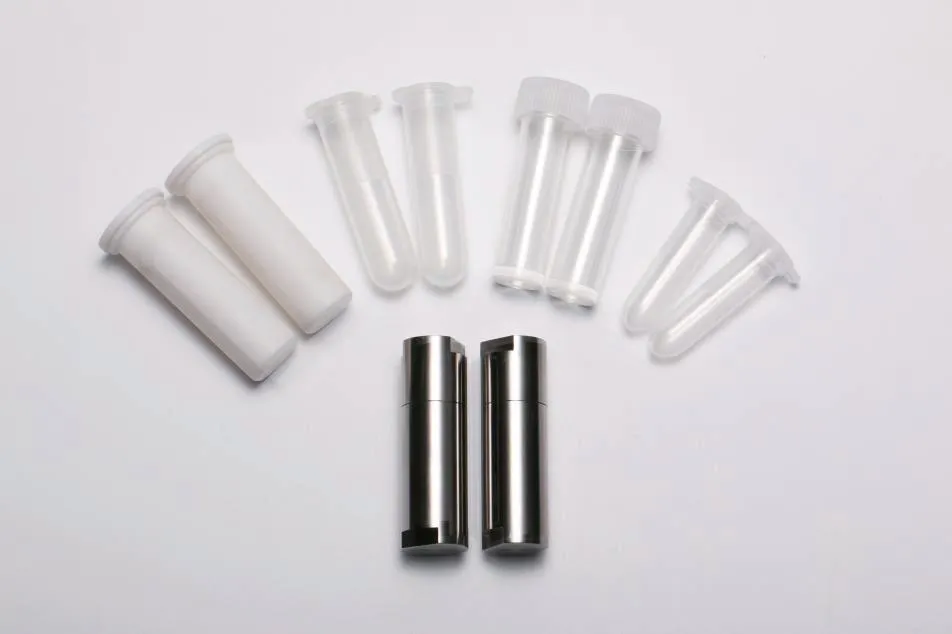

Various range of reaction vials for freezing and grinding

A variety of reaction vials are available for cryogenic grinding, including plastic, PC, PTFE, and stainless steel. These vials, paired with stainless steel, zirconium oxide, or tungsten carbide balls, are ideal for processing small-volume samples.

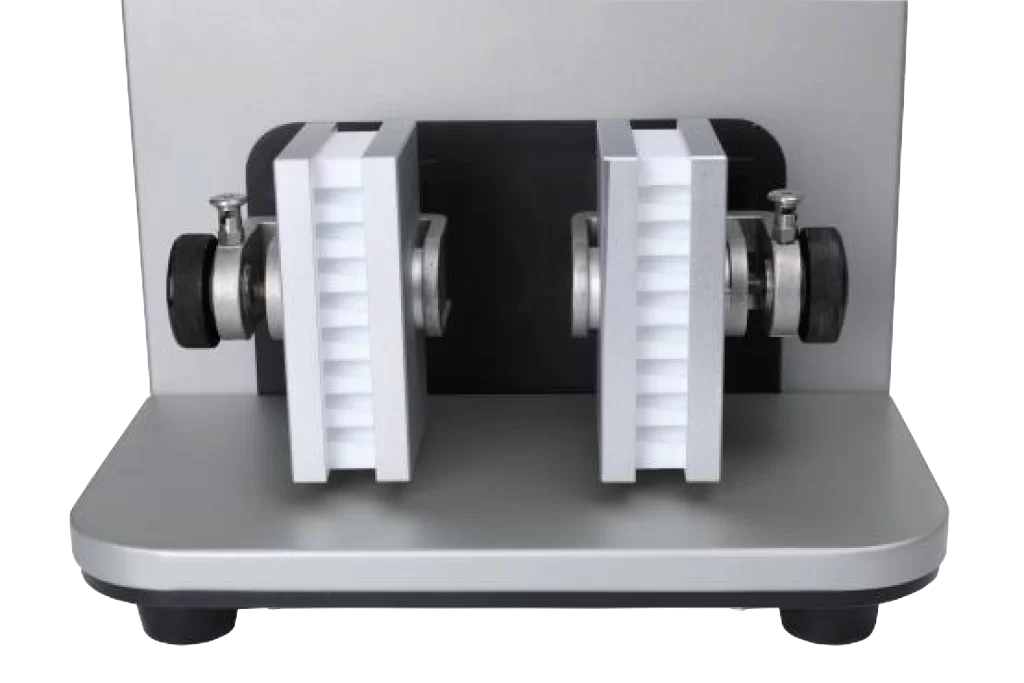

Adapter for reaction vials of biological cell disruption

The GT300 adapter enables high-throughput, efficient, and safe disruption of multiple biological samples, including spores, microorganisms, plant and animal tissue, and soil. Simply place the samples, extraction solution, and metal or ceramic balls into disposable reaction vials. In just two minutes, over 95% of cells can be effectively disrupted. This method is ideal for sample preparation in PCR, PAGE, and probe applications, where preventing cross-contamination is critical. Available options include adapters with 5, 10, or 24 holes for 1.5/2.0ml reaction vials, 6-hole adapters for 5ml vials, and 96-hole adapters for 1.2ml deep-well plates.

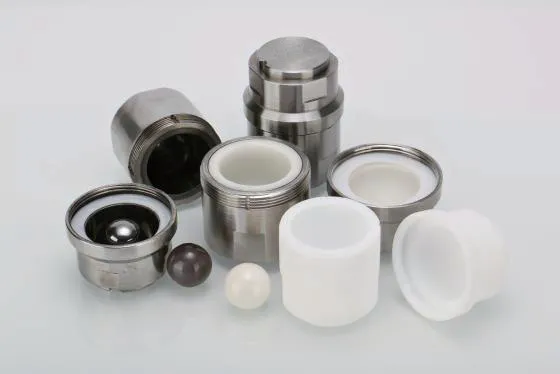

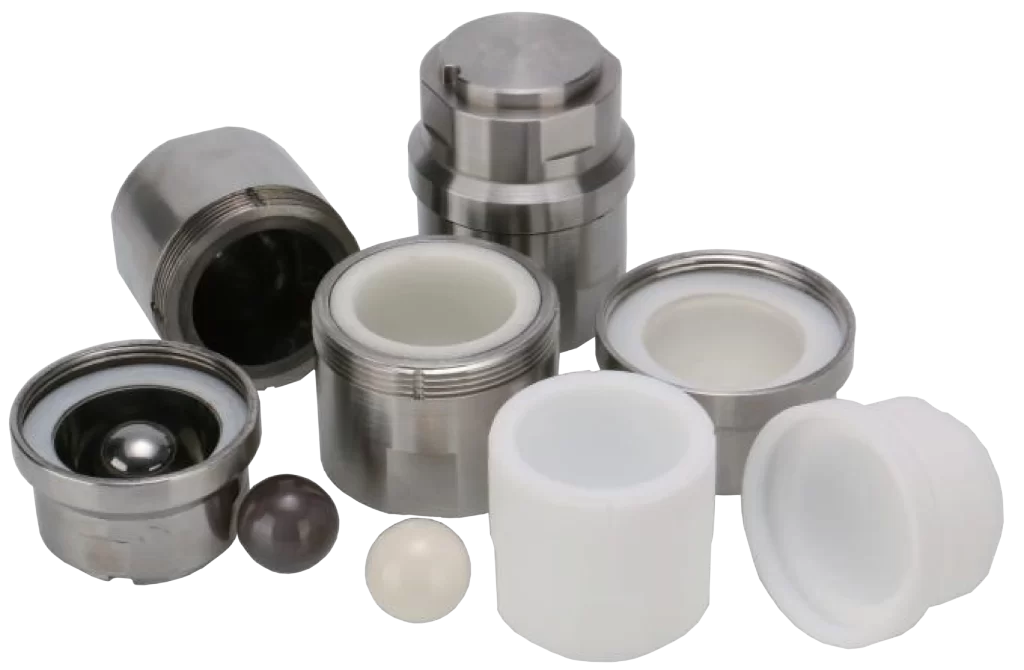

Fast clamping jars

  1. Dry grinding
  2. Wet grinding
  3. Ultra-fine grinding
  4. Mechanical alloy grinding
  5. Freezing grinding

How Can We Help You?

Contact our sales team for a quotation.

Features and Advantages

  1. Suitable for dry, wet, and cryogenic grinding.
  2. Ultra-fast processing time.
  3. Designed for high-throughput applications, supporting up to 192 sample preparations.
  4. Wide selection of grinding jars and accessories for diverse applications.
  5. Digitally pre-settable working parameters for consistent, repeatable results.
  6. Transparent lid for real-time monitoring of the grinding process.
  7. Built-in safety lock stops the motor if the lid is opened during operation, ensuring user safety.
  8. Programmable settings for operation time, interval grinding, and program storage.
  9. Stores up to 20 standard operating procedures (SOPs).

Easy Operation and High Safety Performance

The integrated motor brake ensures the machine operates only when the lid is securely closed. The unique "Easy Clamp" system allows for quick and safe clamping of grinding jars up to 50 ml.

The grinding chamber, Easy Clamp system, and swinging arm are made from high-precision stainless steel, meeting strict food and pharmaceutical standards. Additionally, the advanced brushless motor design minimizes maintenance, making the GT300 highly convenient to use.

Feed size < 10mm
Final fineness < 5μm
Speed 180-1800rpm
Sample volume 0.2-20ml
Time setting 00:01 ~ 99:59 (min/s)
Rated power 150W
Voltage 220V, 50/60Hz (110V is also available)
Instrument size (W*D*H) 370*505*335mm
Package size (W*D*H) 700*500*560mm
Net weight 34kg

Recommended quantity of grinding balls

Grinding Jar's volume
Max. feed size
2mm
3mm
20mm
25mm
30mm
2.00ml
1mm
3-4pcs
2-3pcs
25.00ml
6mm
To achieve better grinding result, please choose bigger ball when bigger jar used
1pcs
1pcs
50.00ml
8mm
1pcs
1pcs
1pcs
