Rotary Sample Divider RSD200
Feed size:< 10mm
Speed：80-120rpm
Time setting:1-999min

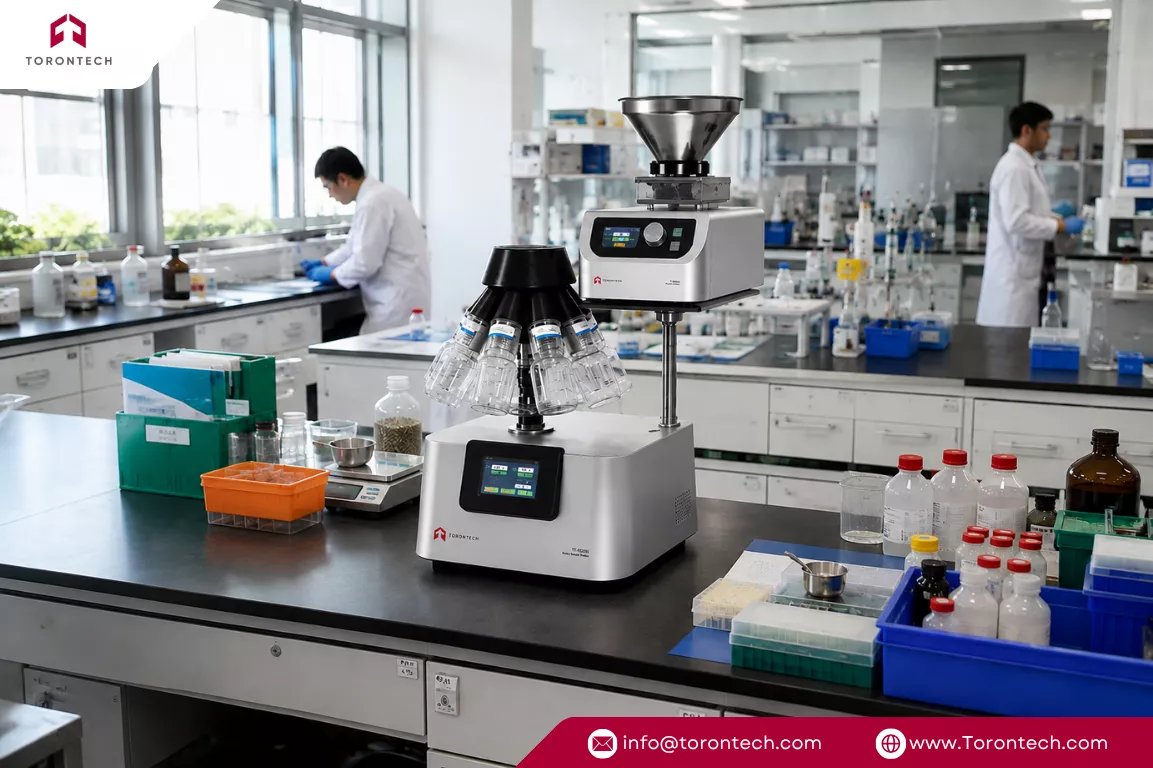

The Rotary Sample Divider RSD200 can evenly split one sample into 6, 8, or 10 uniform smaller samples. Each of these smaller samples possesses identical physical and chemical properties, effectively representing the characteristics of the entire batch of samples. Currently, this divider stands as the most precise sample splitting device available on the market.
Engineering/electronics, building materials, agriculture, pharmaceuticals, chemical/synthetic materials, metallurgical, geological/environment/resources recycling, glass/ceramics, biological, food.
Working principle
The process involves samples being fed into a taper-shaped rotating pipe through the vibratory feeder's hopper. The rotating pipe maintains a constant speed, causing the samples to move towards channels due to centrifugal force. The samples are then collected in containers positioned outside these channels. Importantly, all samples within the containers share identical physical and chemical properties.
Feed size | < 10mm |
Speed | 80-120rpm |
Time setting | 1-999min |
Number of divisions | 6/8/10 |
Volume | 10/25/50/100/250/500ml |
Rated power | 15W |
