ADVANCED HOSPITAL & MEDICAL BEDS - Hospital ICU/CCU Bed - ToronCare 1070

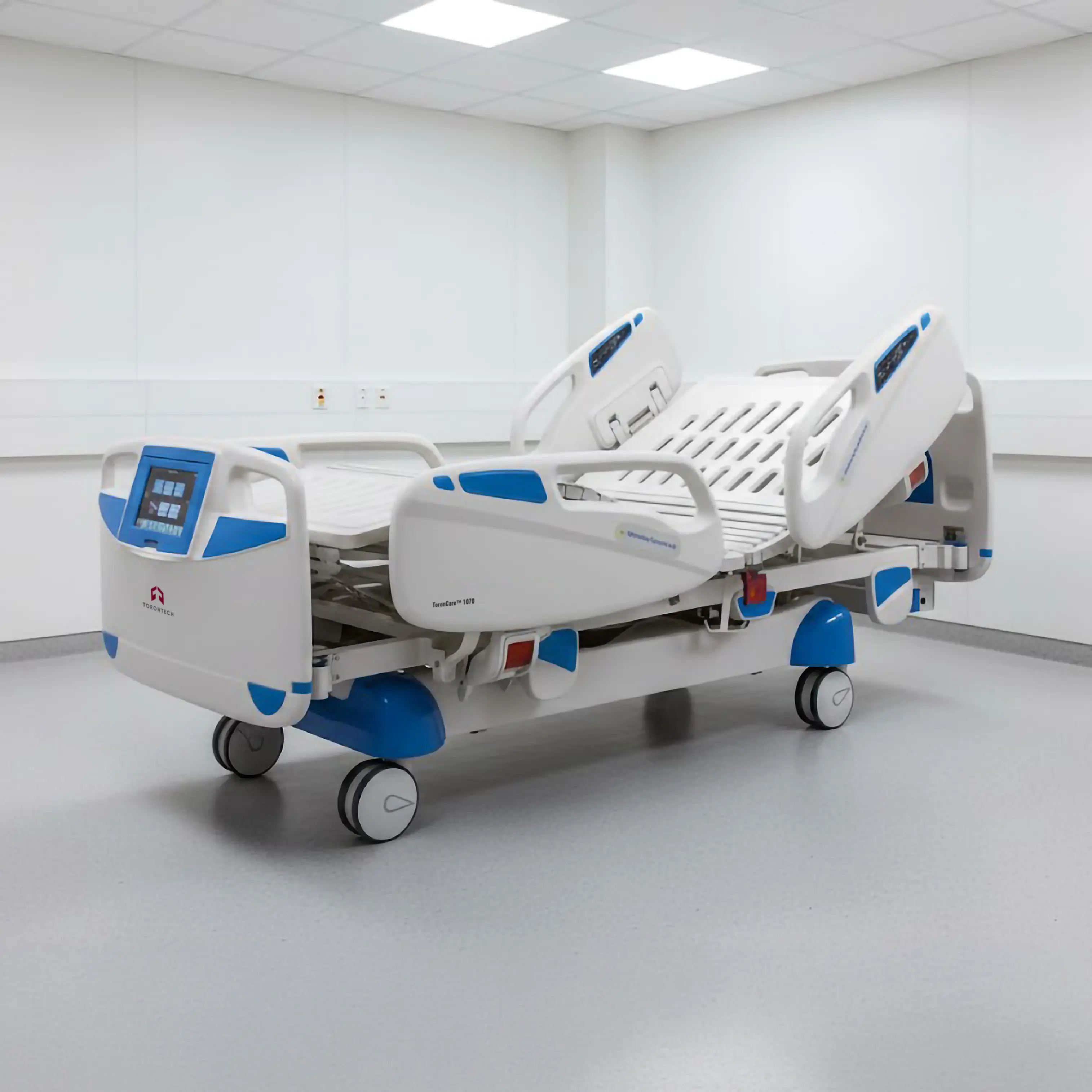

Hospital ICU/CCU Bed - ToronCare 1070

PRODUCT BROCHURE
HOSPITAL ICU/CCU BED
HOSPITAL ICU/CCU BED
  • Built with durable steel framework and high-quality ABS & PP plastic
  • Controlled by user-friendly touchpad (replacing traditional keypads, which have limited service life due to mechanical failure)
  • 10.2 inch touchscreen at the foot board displays all the bed posture positions and features a patient lock-out system
  • Custom bed board improves softness and bending of the bed, increasing the comfort of patients
  • Electrically controlled bed positions provide easy adjustment of patient posture, with an indicator light to show the work status
  • Back-rest and leg-rest can be adjusted up/down at the same time for more efficient operation
  • Bed position and weight scale data can be stored for more efficient operation
  • Off-bed alarming
  • Reset button adjusts the bed to the flat / lowest setting from any position
  • Backup battery provides protection for emergency power failure
  • Detachable head and foot board made from high-quality PP plastic
  • 4 pcs drop-down PP protective railing, controlled by gas spring
  • Central brake castors, brake and un-brake controlled by electric operation
  • IV pole mount bracket at all 4 corners of the bed frame

    • Standard Accessories (Included)​

  • IV Pole

    • Optional Accessories (Not Included)

  • Monkey pole
  • X-ray radiolucent head and back section
    • Dimensions
    Overall dimensions (LxWxH)
    2260mmx1050mm x 530-710mm89.0in x 41.3in x 20.9-28.0in
    Hi-Low
    710mm-530mm28.0-20.9in
    Bed Board dimensions (LxW)
    1940mmx900mm76.4in x 35.4in
    Diameter of central brake castors
    150mm5.9in
    Bed Articulations
    Back-rest
    0-65o
    Leg-rest
    0-40o
    Trendelenburg and Rev. Trendelenburg
    0-10o
    Weight
    Net Weight
    158 Kg348 lbs
    Load Capacity
    <250 Kg<551 lbs
